el12
Electrical apparatus
contactors
AC contactors
Power contactor TeSys D AC3 18A 3P 1NO 1NC coil 24VAC LC1D186B7
local index:
ATA358SCHN
Catalog No:
LC1D186B7
EAN code:
3389110803860

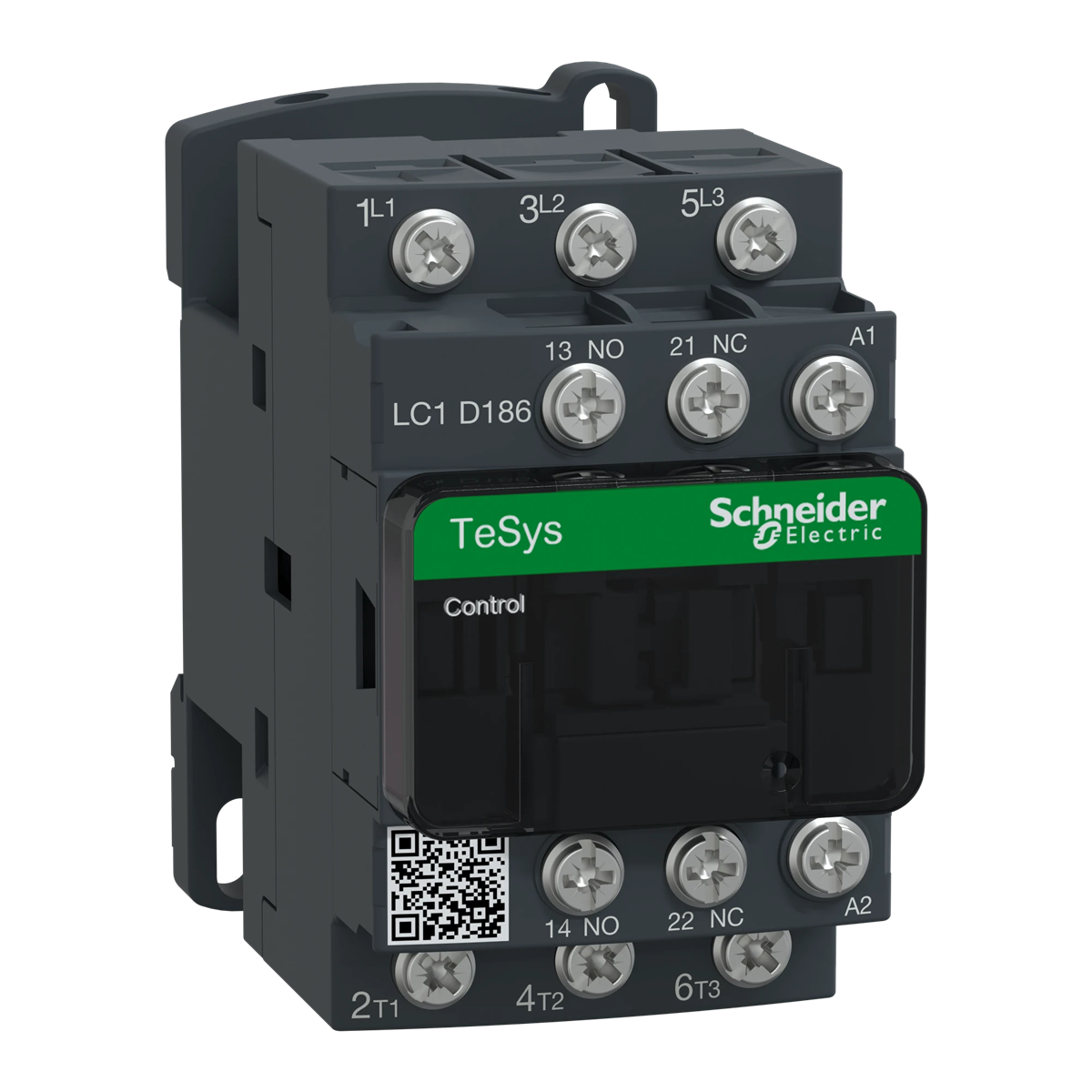

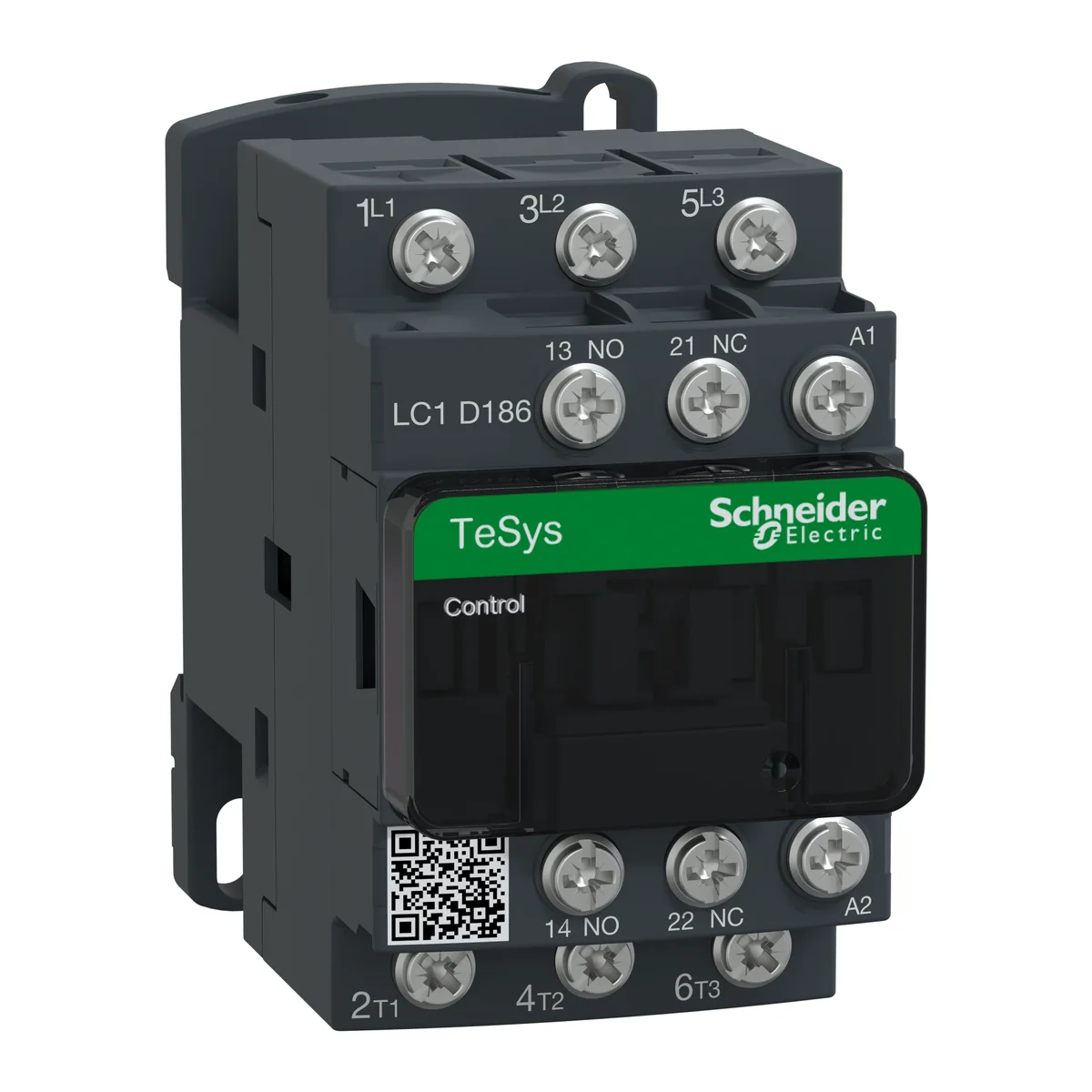

Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]:
24
See full description
Price:
61,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Power contactor TeSys D AC3 18A 3P 1NO 1NC coil 24VAC
Technical data
AC control voltage [V]
24
PKWIU
27.12.24.0
Other technical data
Rated control supply voltage AC 50 Hz
24 ... 24 V
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
18 A
Rated operation current Ie at AC-4, 400 V
9 A
Modular version
No
Number of auxiliary contacts as normally closed contact
1
Number of normally closed contacts as main contact
0
Rated control supply voltage AC 60 Hz
24 ... 24 V
Rated operation current Ie at AC-1, 400 V
32 A
Rated operation power at AC-3, 400 V
7.5 kW
Rated operation power at AC-4, 400 V
4 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Other
Number of normally open contacts as main contact
3
Files to download
PP_EU_Doc_LC.D09-18_SC16040407I.docx.pdf
