382447
0

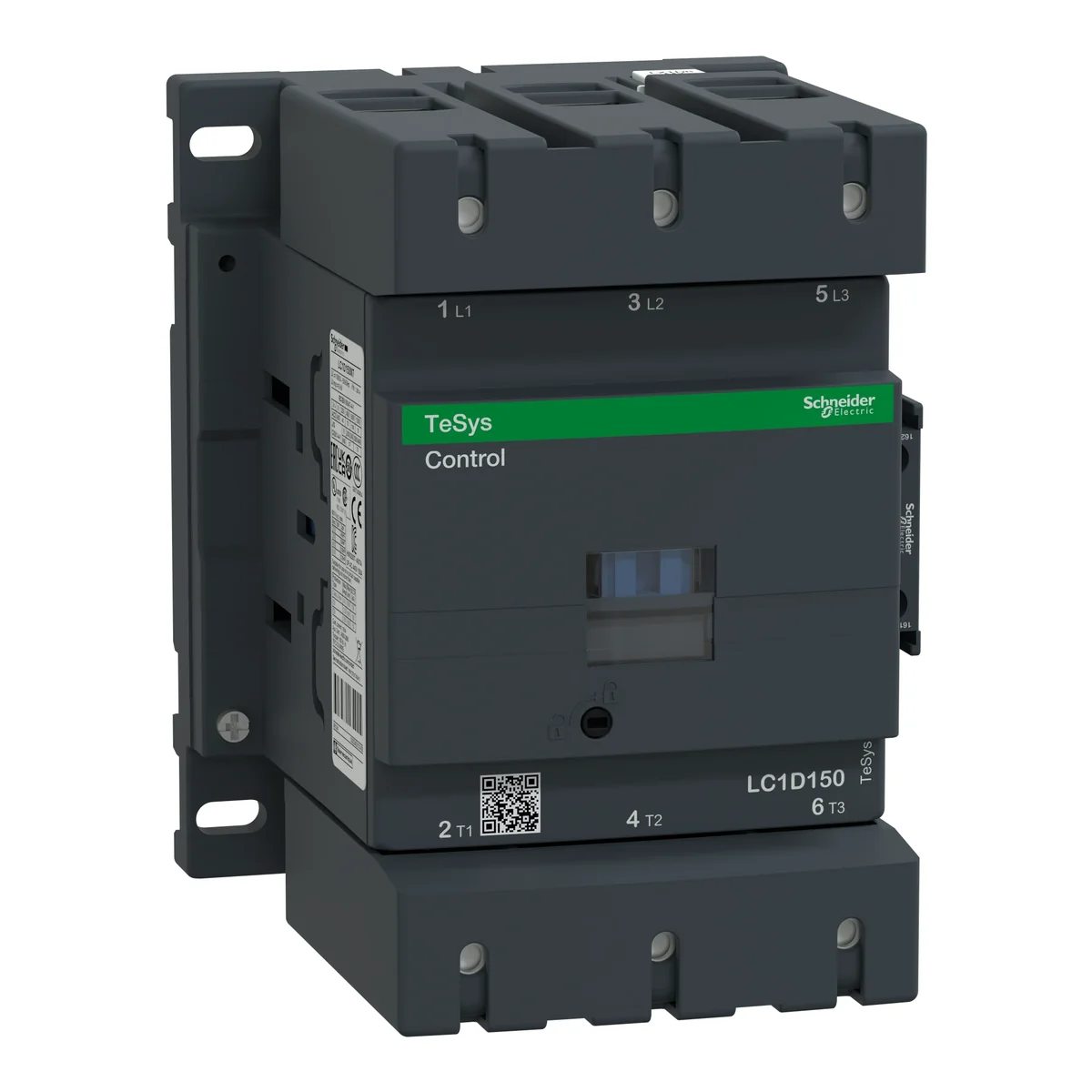

Power contactor TeSys D AC3 150A 3P 1NO 1NC coil 400VAC LC1D150V7
local index:
ATA351SCHN
Catalog No:
LC1D150V7
EAN code:
3389110480214
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]: 400
Price:
550,03 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D AC3 150A 3P 1NO 1NC coil 400VAC
Technical data
-
AC control voltage [V]400
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 50 Hz400 ... 400 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V150 A
-
Rated operation current Ie at AC-4, 400 V50 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz400 ... 400 V
-
Rated operation current Ie at AC-1, 400 V200 A
-
Rated operation power at AC-3, 400 V75 kW
-
Rated operation power at AC-4, 400 V22 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
