Electrical apparatus
contactors
AC contactors

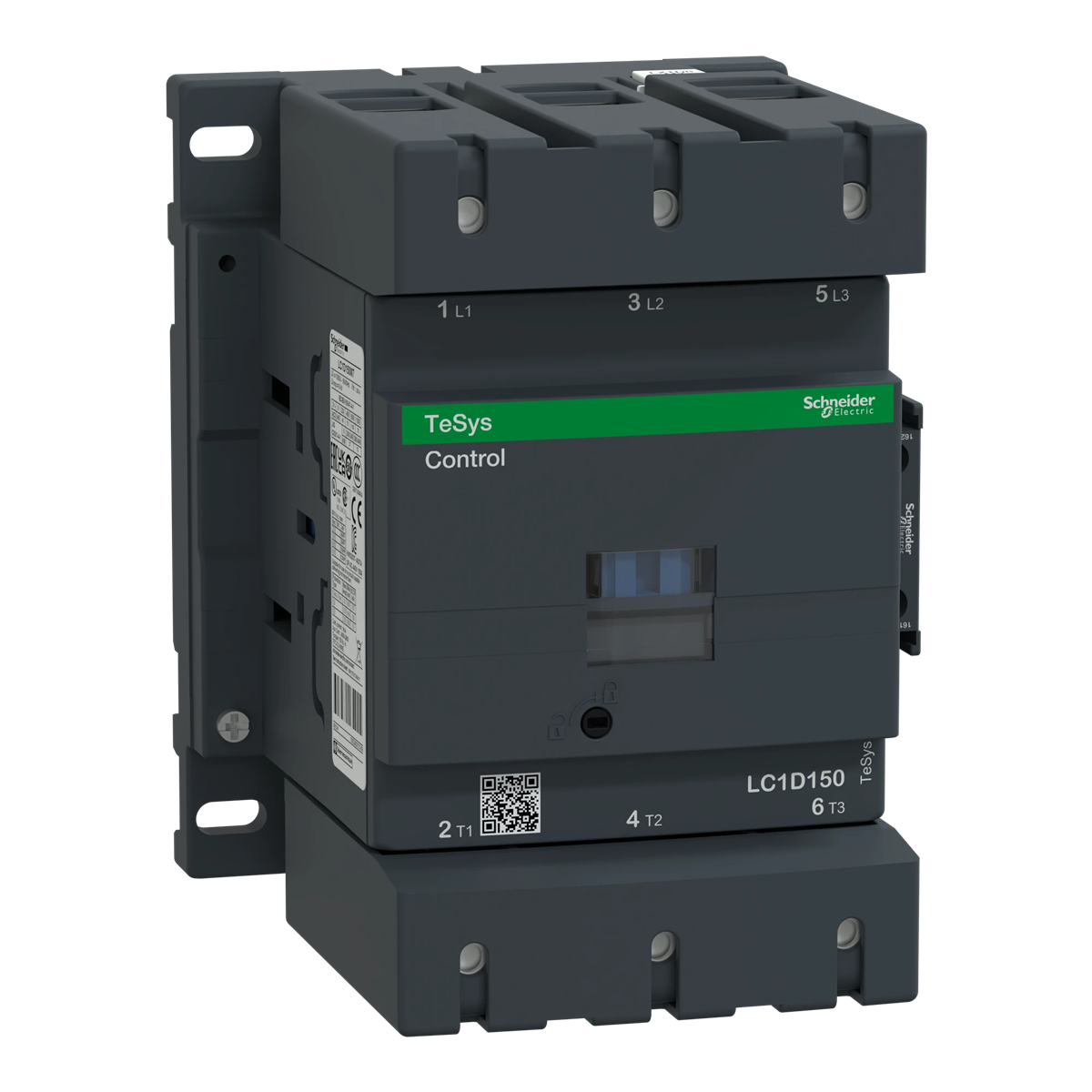

Power contactor TeSys D AC3 150A 3P 1NO 1NC coil 380VAC LC1D150Q7
local index:
ATA347SCHN
Catalog No:
LC1D150Q7
EAN code:
3389110477658
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]:
380
See full description
Price:
543,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Power contactor TeSys D AC3 150A 3P 1NO 1NC coil 380VAC
Technical data
AC control voltage [V]
380
PKWIU
27.12.24.0
Other technical data
Rated control supply voltage AC 50 Hz
380 ... 380 V
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
150 A
Rated operation current Ie at AC-4, 400 V
50 A
Modular version
No
Number of auxiliary contacts as normally closed contact
1
Number of normally closed contacts as main contact
0
Rated control supply voltage AC 60 Hz
380 ... 380 V
Rated operation current Ie at AC-1, 400 V
200 A
Rated operation power at AC-3, 400 V
75 kW
Rated operation power at AC-4, 400 V
22 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Files to download
PEP ecopassport SCHN-2015-075-EN_1.pdf
ENVEOLI100405EN_LC1D115_20100615.pdf
UK_Doc_LC.D115-150_SC16040602A-UK.docx.pdf
