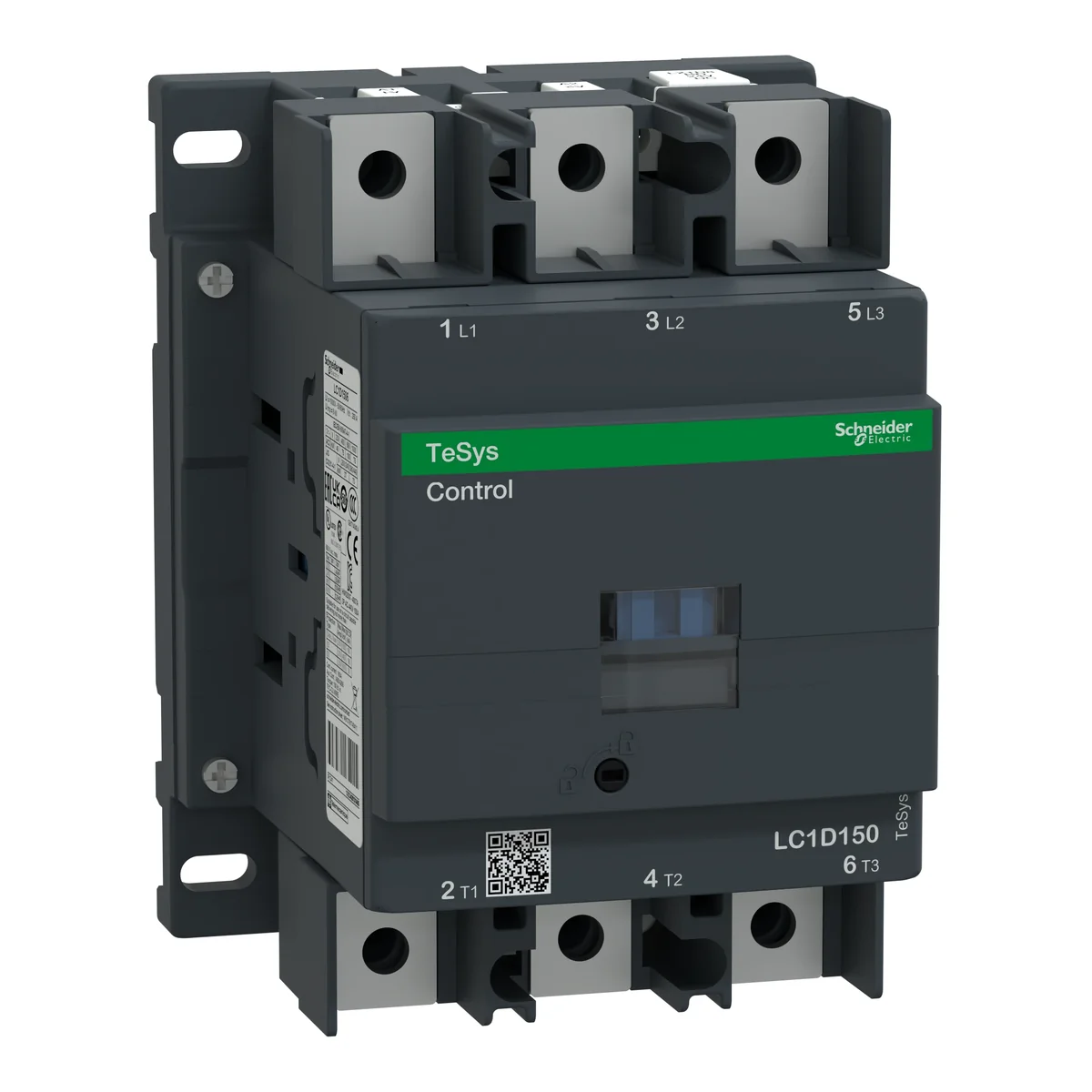

Power contactor TeSys D AC3 150A 3P 1NO 1NC coil 24VDC LC1D1506BD
local index:
ATD344SCHN
Catalog No:
LC1D1506BD
EAN code:
3389110483017
Manufacturer:
SCHNEIDER ELECTRIC
DC control voltage [V]: 24
Price:
611,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D AC3 150A 3P 1NO 1NC coil 24VDC
Technical data
-
DC control voltage [V]24
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage DC24 ... 24 V
-
Rated operation current Ie at AC-1, 400 V200 A
-
Rated operation power at AC-3, 400 V75 kW
-
Rated operation power at AC-4, 400 V22 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitOther
-
Number of normally open contacts as main contact3
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V150 A
-
Rated operation current Ie at AC-4, 400 V50 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
