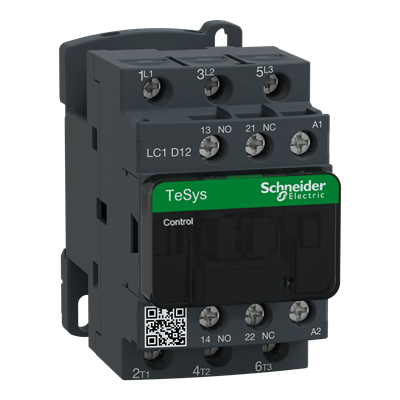

Power contactor TeSys D AC3 12A 3P 1NO 1NC coil 110VAC LC1D12F7

local index:
ATA143SCHN
Catalog No:
LC1D12F7
EAN code:
3389110349221
Manufacturer: SCHNEIDER ELECTRIC
AC control voltage [V]: 110
Price:
33,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Power contactor TeSys D AC3 12A 3P 1NO 1NC coil 110VAC

Technical data

  • AC control voltage [V]
    110
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    110 ... 110 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    12 A
  • Rated operation current Ie at AC-4, 400 V
    7.5 A
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    110 ... 110 V
  • Rated operation current Ie at AC-1, 400 V
    25 A
  • Rated operation power at AC-3, 400 V
    5.5 kW
  • Rated operation power at AC-4, 400 V
    3 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3
