Power contactor TeSys D AC3 115A 3P 1NO 1NC coil 440VAC LC1D115R7
local index:
ATA270SCHN
Catalog No:
LC1D115R7
EAN code:
3389110377361
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]: 440
Price:
426,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

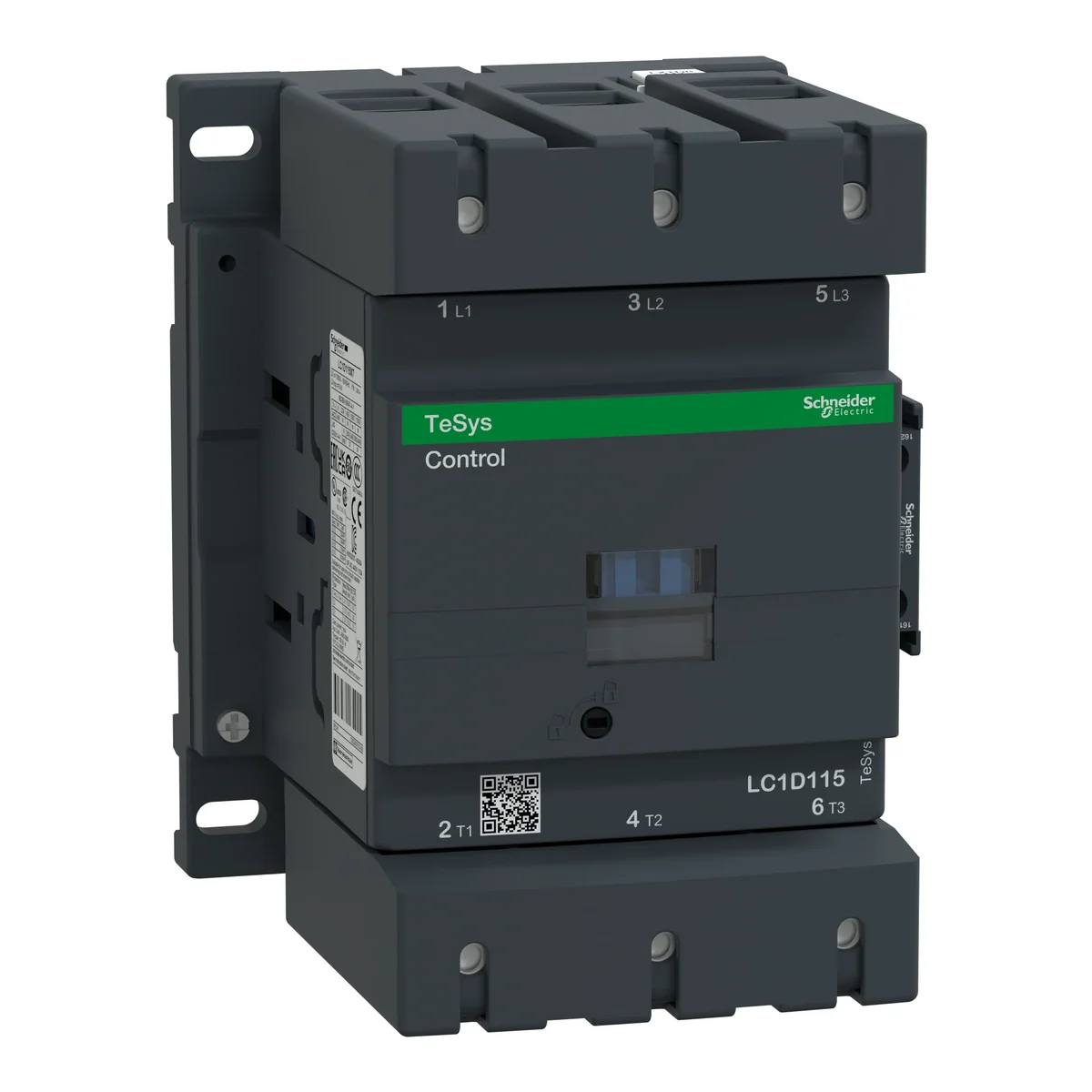

Power contactor TeSys D AC3 115A 3P 1NO 1NC coil 440VAC
Technical data
-
AC control voltage [V]440
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 50 Hz440 ... 440 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V115 A
-
Rated operation current Ie at AC-4, 400 V38 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz440 ... 440 V
-
Rated operation current Ie at AC-1, 400 V200 A
-
Rated operation power at AC-3, 400 V55 kW
-
Rated operation power at AC-4, 400 V18.5 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
