Electrical apparatus
contactors
AC contactors

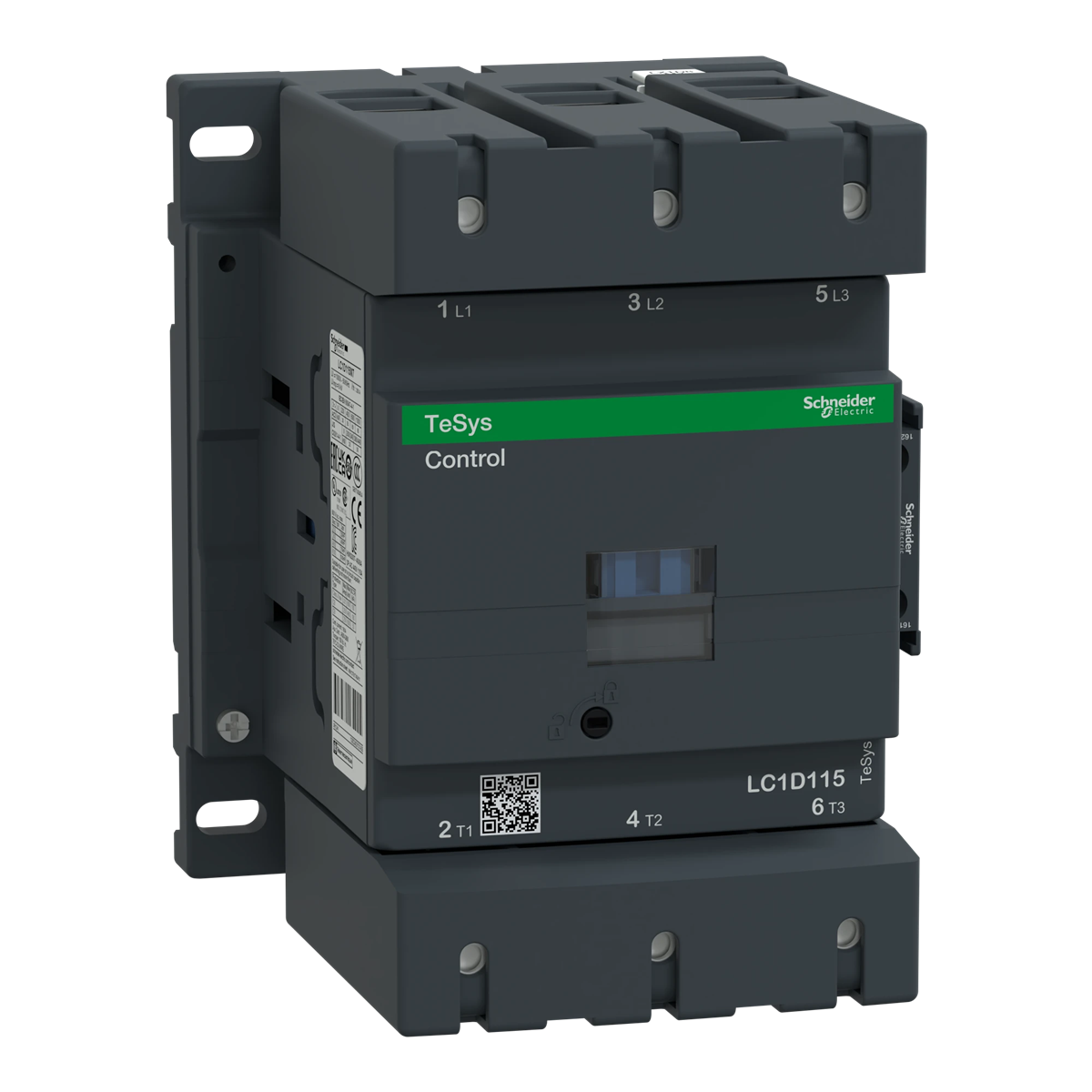

Power contactor TeSys D AC3 115A 3P 1NO 1NC coil 110V 50HZ LC1D115F5
local index:
ATA264SCHN
Catalog No:
LC1D115F5
EAN code:
3389110377064
Click on the photo to enlarge
Manufacturer:
SCHNEIDER ELECTRIC
Number of poles:
3
See full description
Price:
610,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Files to download
Product description
Power contactor TeSys D AC3 115A 3P 1NO 1NC coil 110V 50HZ
Technical data
Number of poles
3
PKWIU
27.12.24.0
Other technical data
Rated control supply voltage AC 50 Hz
110 ... 110 V
Rated operation current Ie at AC-1, 400 V
200 A
Rated operation power at AC-3, 400 V
55 kW
Rated operation power at AC-4, 400 V
18.5 kW
Number of auxiliary contacts as normally open contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally open contacts as main contact
3
Voltage type for actuating
AC
Rated operation current Ie at AC-3, 400 V
115 A
Rated operation current Ie at AC-4, 400 V
38 A
Modular version
No
Number of auxiliary contacts as normally closed contact
1
Number of normally closed contacts as main contact
0
Files to download
PEP ecopassport SCHN-2015-075-EN_1.pdf
ENVEOLI100405EN_LC1D115_20100615.pdf
UK_Doc_LC.D115-150_SC16040602A-UK.docx.pdf
