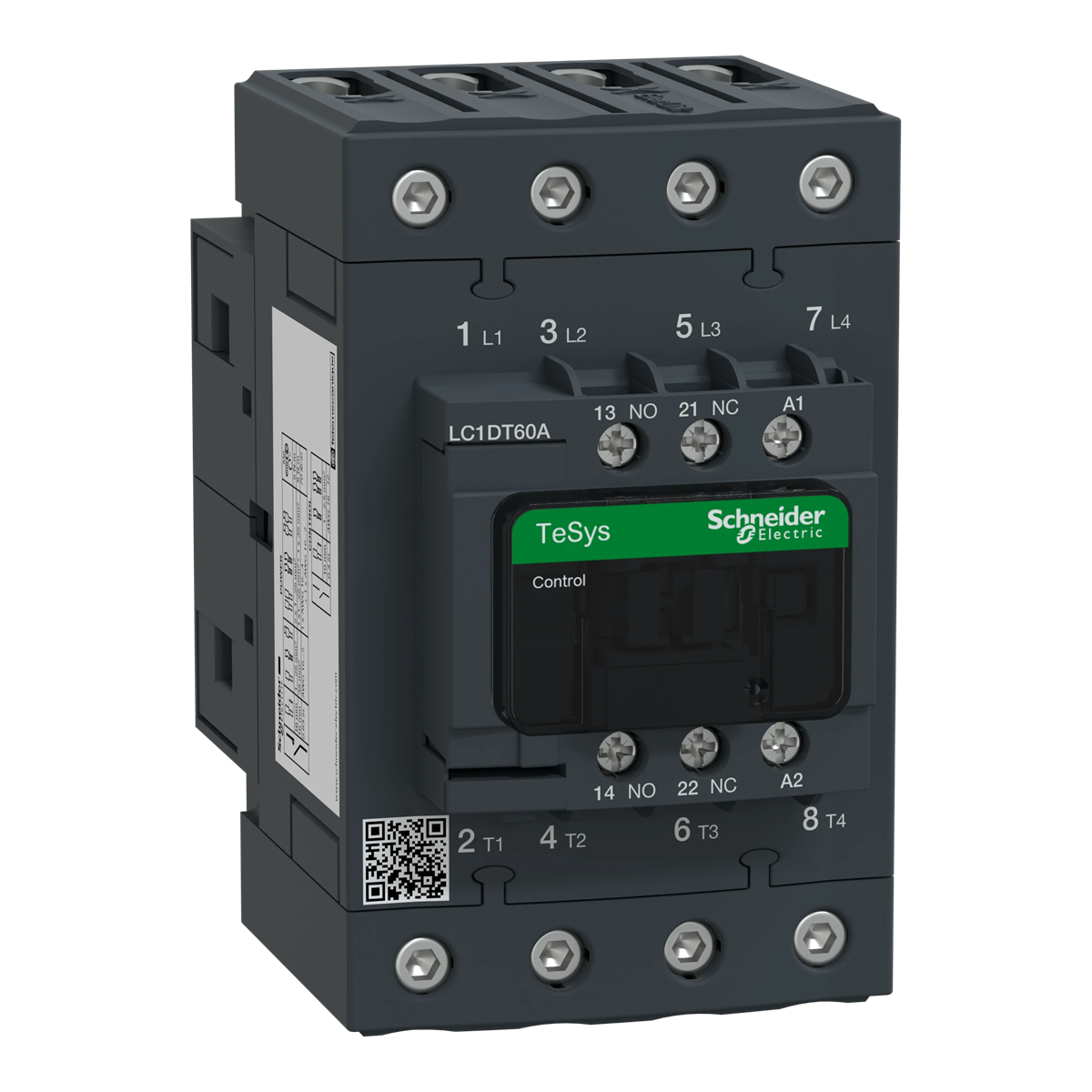

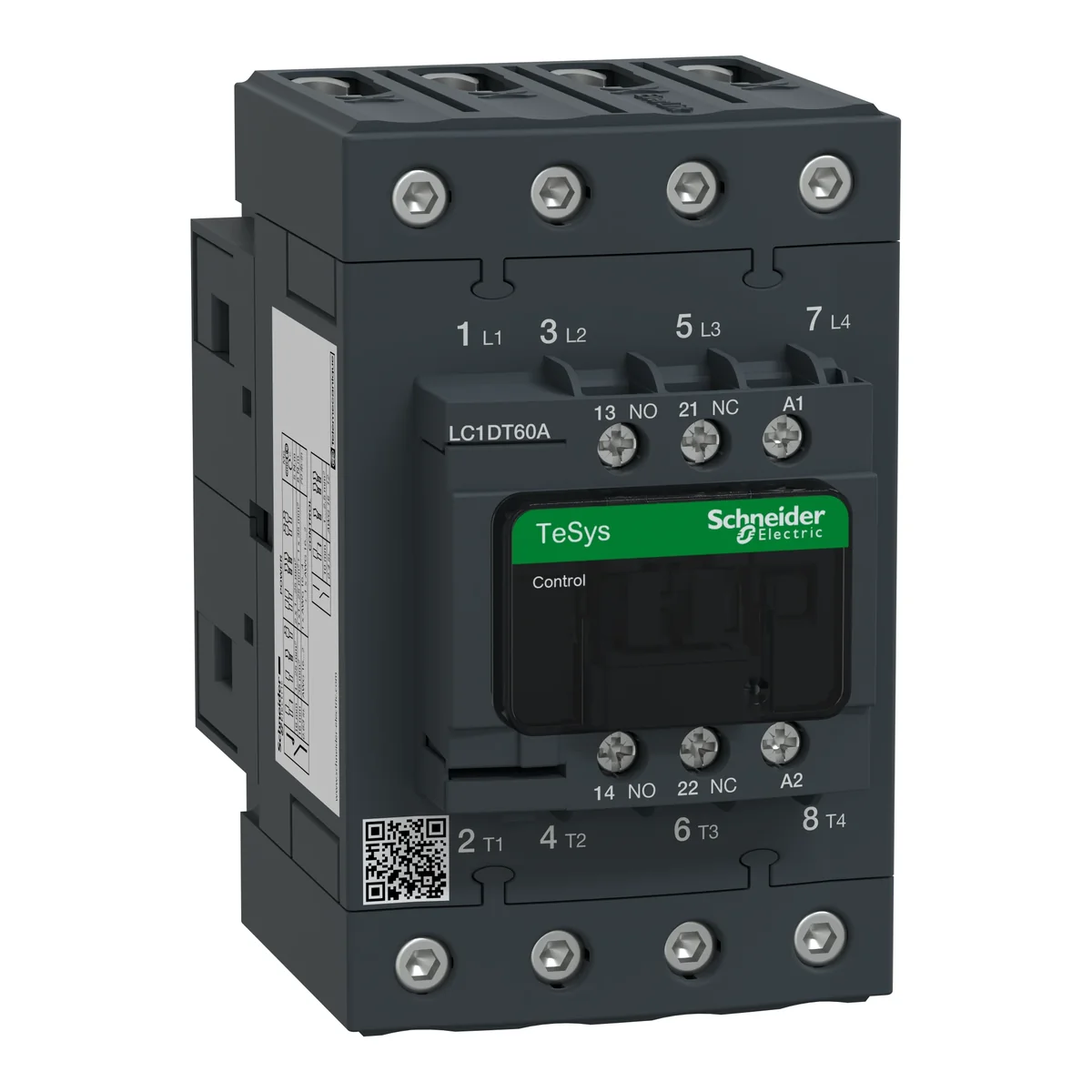

Power contactor TeSys D AC1 60A 4P 1NO 1NC coil 42VAC EVK box terminals LC1DT60AD7
local index:
ATA684SCHN
Catalog number:
LC1DT60AD7
EAN code:
3389118329157
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]: 42
Price:
1 483,93 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D AC1 60A 4P 1NO 1NC coil 42VAC EVK box terminals
Technical data
-
AC control voltage [V]42
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 50 Hz42 ... 42 V
-
Voltage type for actuatingAC
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz42 ... 42 V
-
Rated operation current Ie at AC-1, 400 V60 A
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact4
Manufacturer details
-
ManufacturerSchneider Electric Polska
-
Address02-673 Warszawa Konstruktorska 12 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka | Sztuka |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 1,064 | 1,064 |
| Volume (m3) | 0,002 | 0,002 |
| Width (m) | 0,141 | 0,141 |
| Length (m) | 0,154 | 0,154 |
| Depth (m) | 0,080 | 0,080 |
