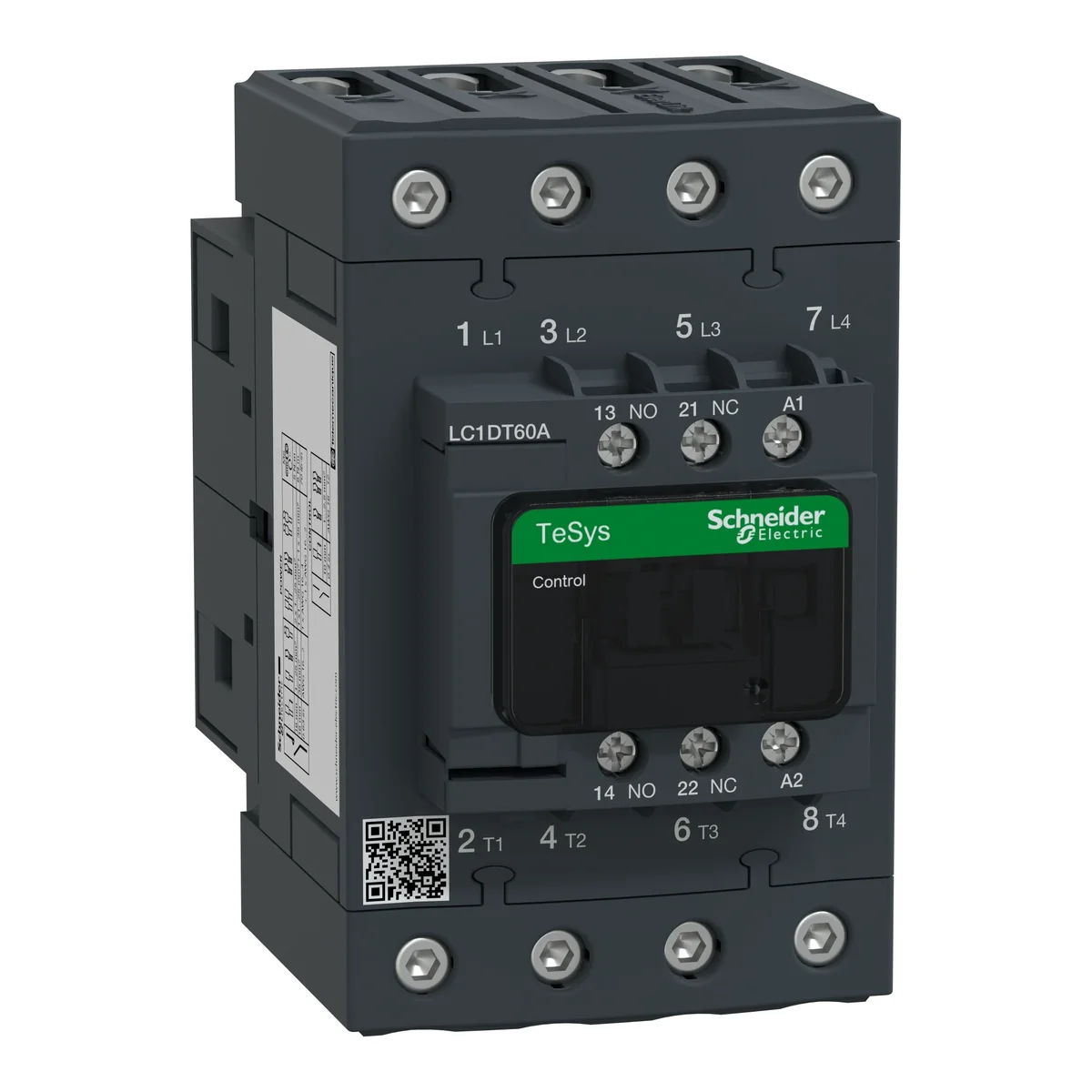

Power contactor TeSys D AC1 60A 4P 1NO 1NC coil 24VAC EVK box terminals LC1DT60AB7

local index:
ATA682SCHN
Catalog No:
LC1DT60AB7
EAN code:
3389119409247
Manufacturer: SCHNEIDER ELECTRIC
AC control voltage [V]: 24
Price:
208,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor TeSys D AC1 60A 4P 1NO 1NC coil 24VAC EVK box terminals

Technical data

  • AC control voltage [V]
    24
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    24 ... 24 V
  • Voltage type for actuating
    AC
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    24 ... 24 V
  • Rated operation current Ie at AC-1, 400 V
    60 A
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    4
