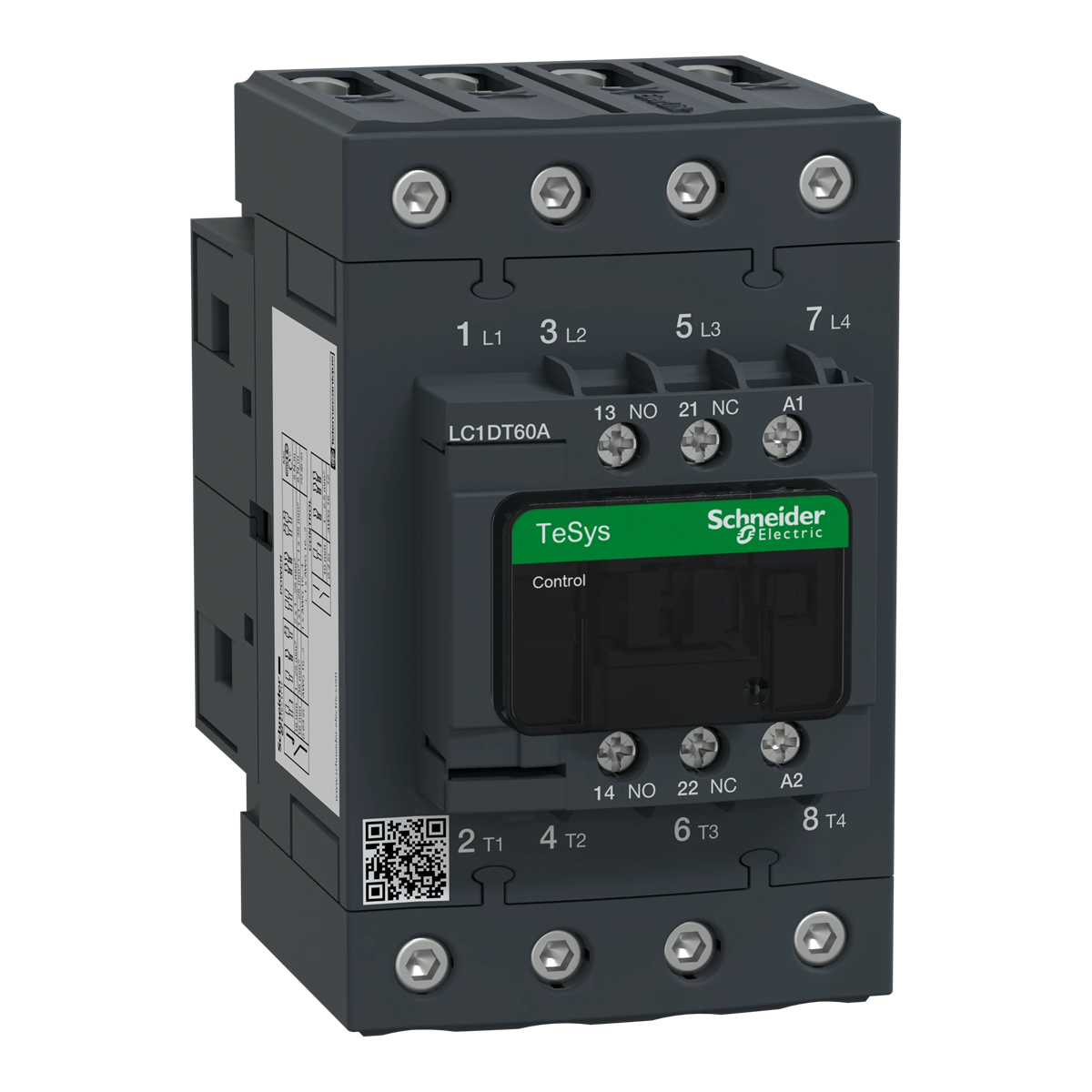

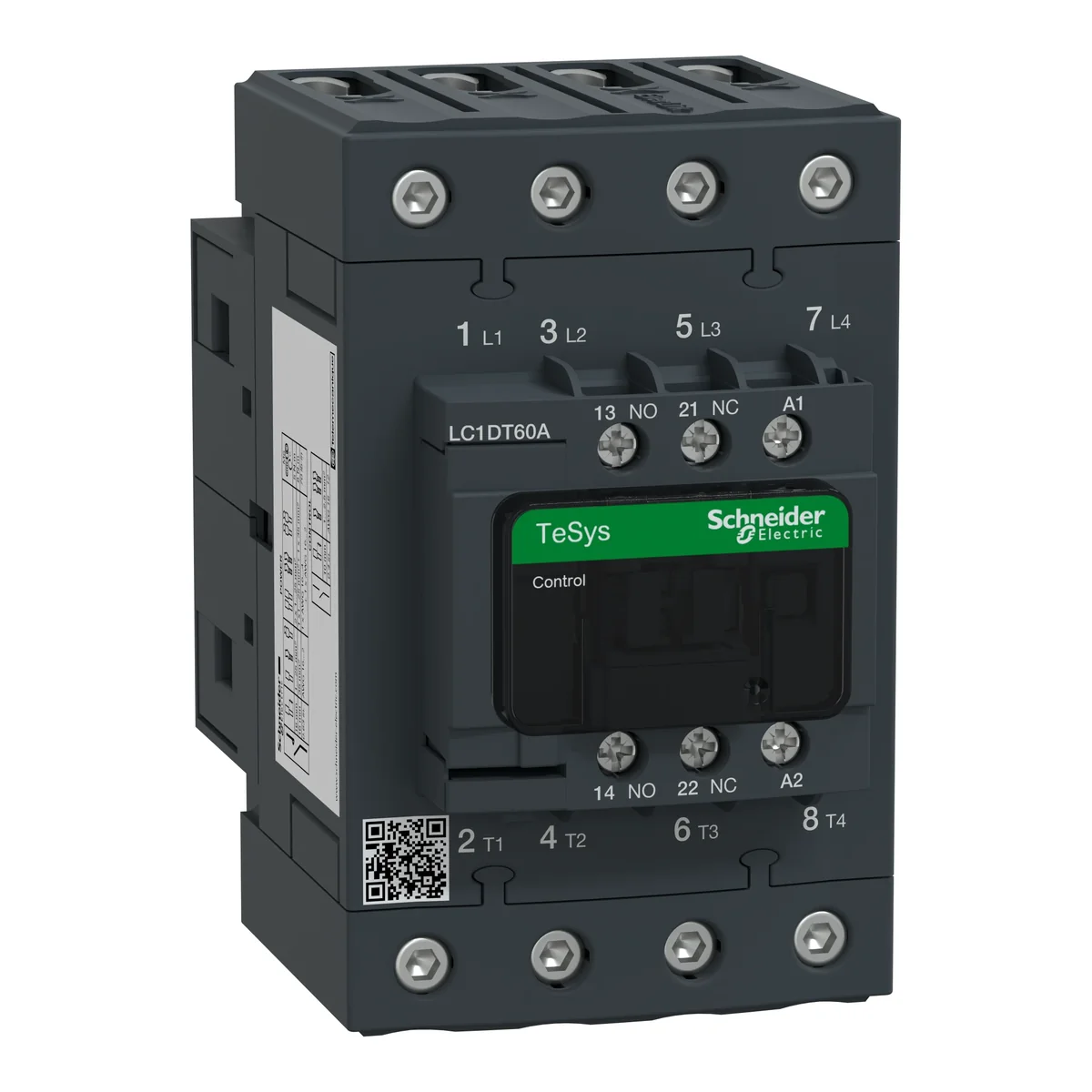

Power contactor TeSys D AC1 60A 4P 1NO 1NC coil 230VAC EVK box terminals LC1DT60AP7
local index:
ATA220SCHN
Catalog number:
LC1DT60AP7
EAN code:
3389119409308
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]: 230
987
39
zł
gross / pcs.
(including VAT 23%)
Availability
Dostępne 2 weeks
On request
Dostępność w oddziale
Choose your wholesaler
Choose
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D AC1 60A 4P 1NO 1NC coil 230VAC EVK box terminals
Technical data
-
AC control voltage [V]230
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Voltage type for actuatingAC
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz230 ... 230 V
-
Rated operation current Ie at AC-1, 400 V60 A
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact4
Manufacturer details
-
ManufacturerSchneider Electric Polska
-
Address02-673 Warszawa Konstruktorska 12 Polska
-
E-mail
Bulk packaging
| A kind of package | Sztuka | Karton | Paleta |
| Quantity | 1 pcs. | 7 pcs. | 112 pcs. |
| Weight (kg) | 1,090 | 7,872 | 137,960 |
| Volume (m3) | 0,002 | 0,018 | 0,432 |
| Width (m) | 0,135 | 0,300 | 0,800 |
| Length (m) | 0,075 | 0,400 | 1,200 |
| Depth (m) | 0,150 | 0,150 | 0,450 |
