385106
0

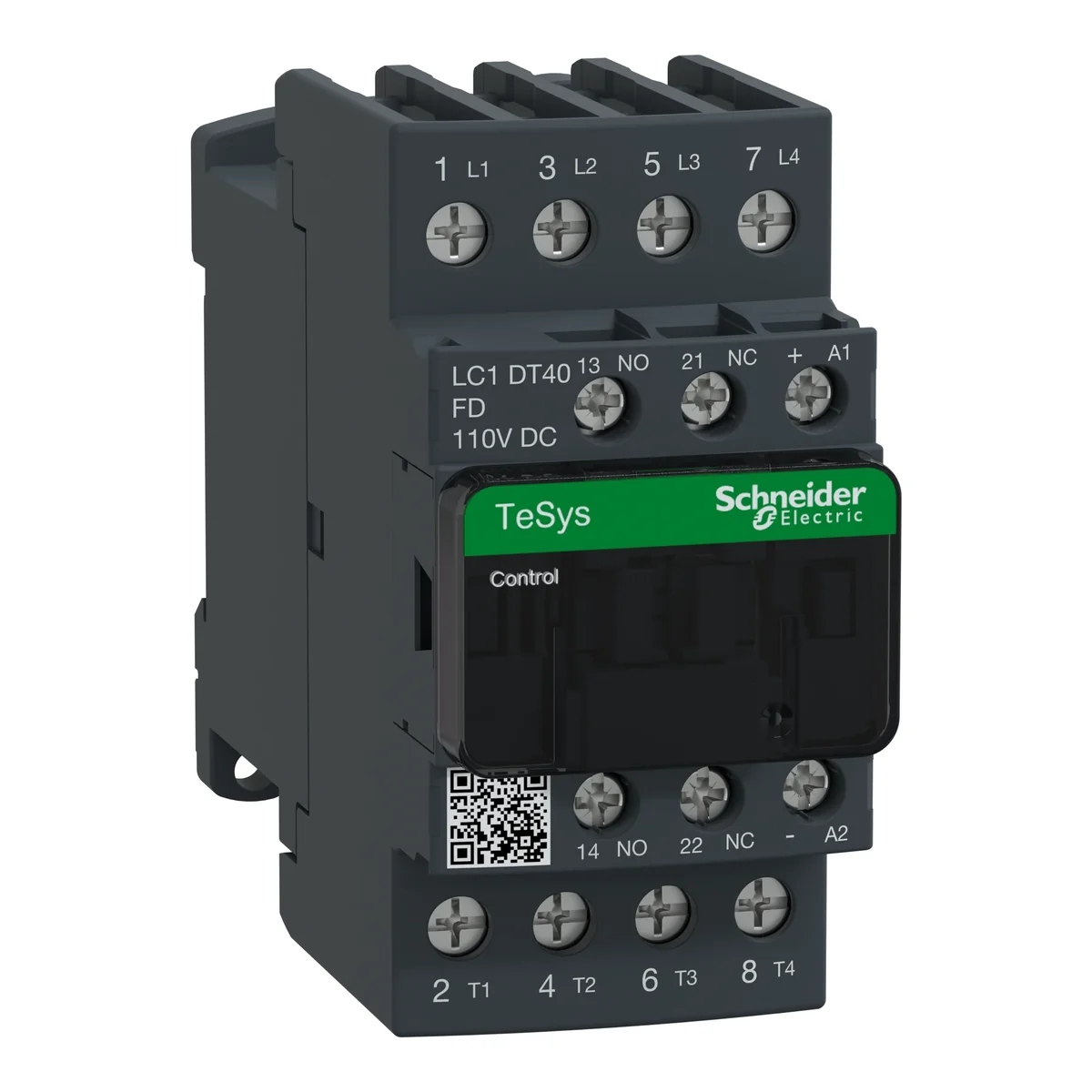

Power contactor TeSys D AC1 40A 4P 1NO 1NC coil 110VDC box terminals LC1DT40FD
local index:
ATD162SCHN
Catalog No:
LC1DT40FD
EAN code:
3389110247879
Manufacturer:
SCHNEIDER ELECTRIC
DC control voltage [V]: 110
Price:
178,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D AC1 40A 4P 1NO 1NC coil 110VDC box terminals
Technical data
-
DC control voltage [V]110
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage DC110 ... 110 V
-
Rated operation current Ie at AC-1, 400 V40 A
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact4
-
Voltage type for actuatingDC
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
