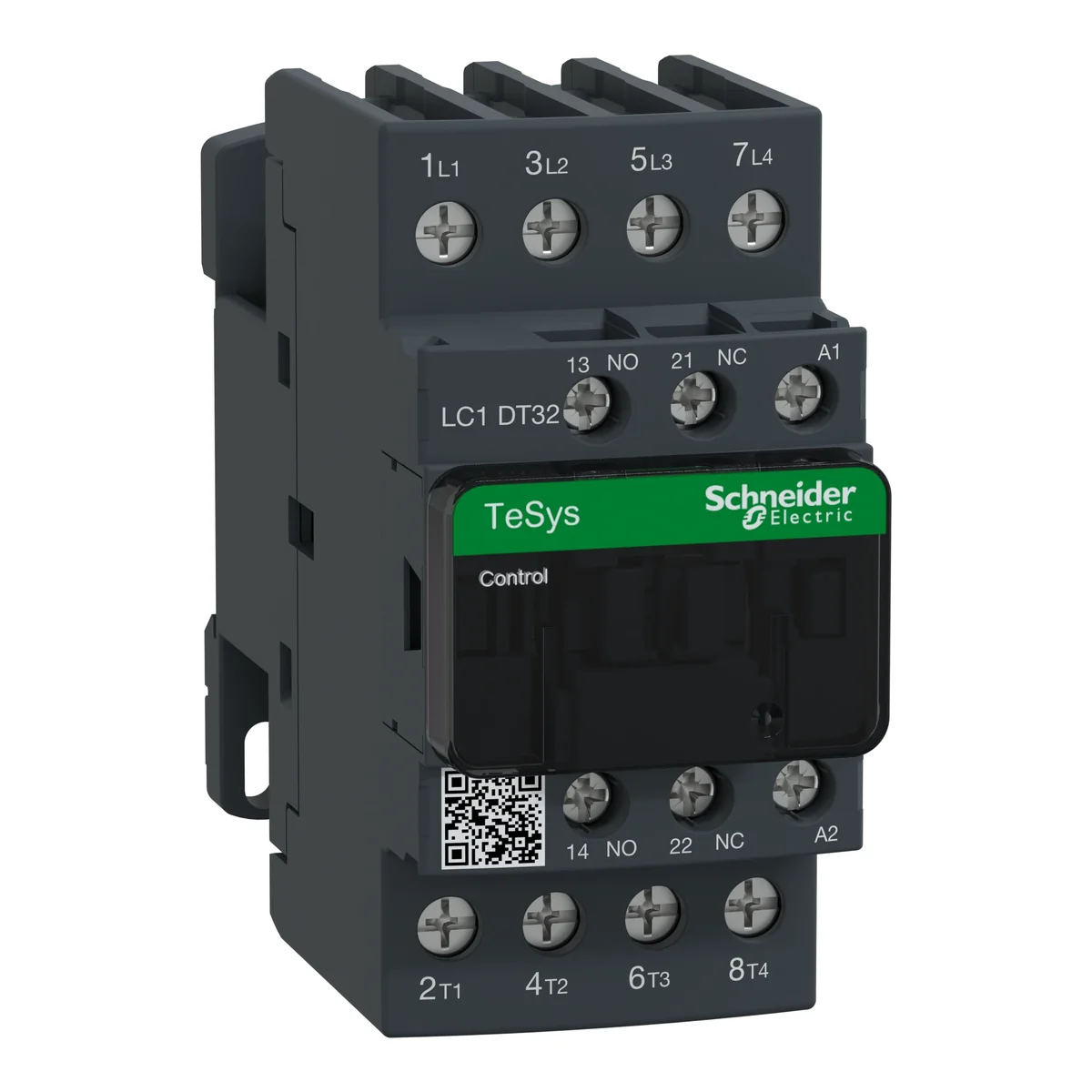

Power contactor TeSys D AC1 32A 4P 1NO 1NC coil 110VAC box terminals LC1DT32F7
local index:
ATA652SCHN
Catalog No:
LC1DT32F7
EAN code:
3389110338126
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]: 110
Price:
76,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D AC1 32A 4P 1NO 1NC coil 110VAC box terminals
Technical data
-
AC control voltage [V]110
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 50 Hz110 ... 110 V
-
Voltage type for actuatingAC
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz110 ... 110 V
-
Rated operation current Ie at AC-1, 400 V32 A
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact4
