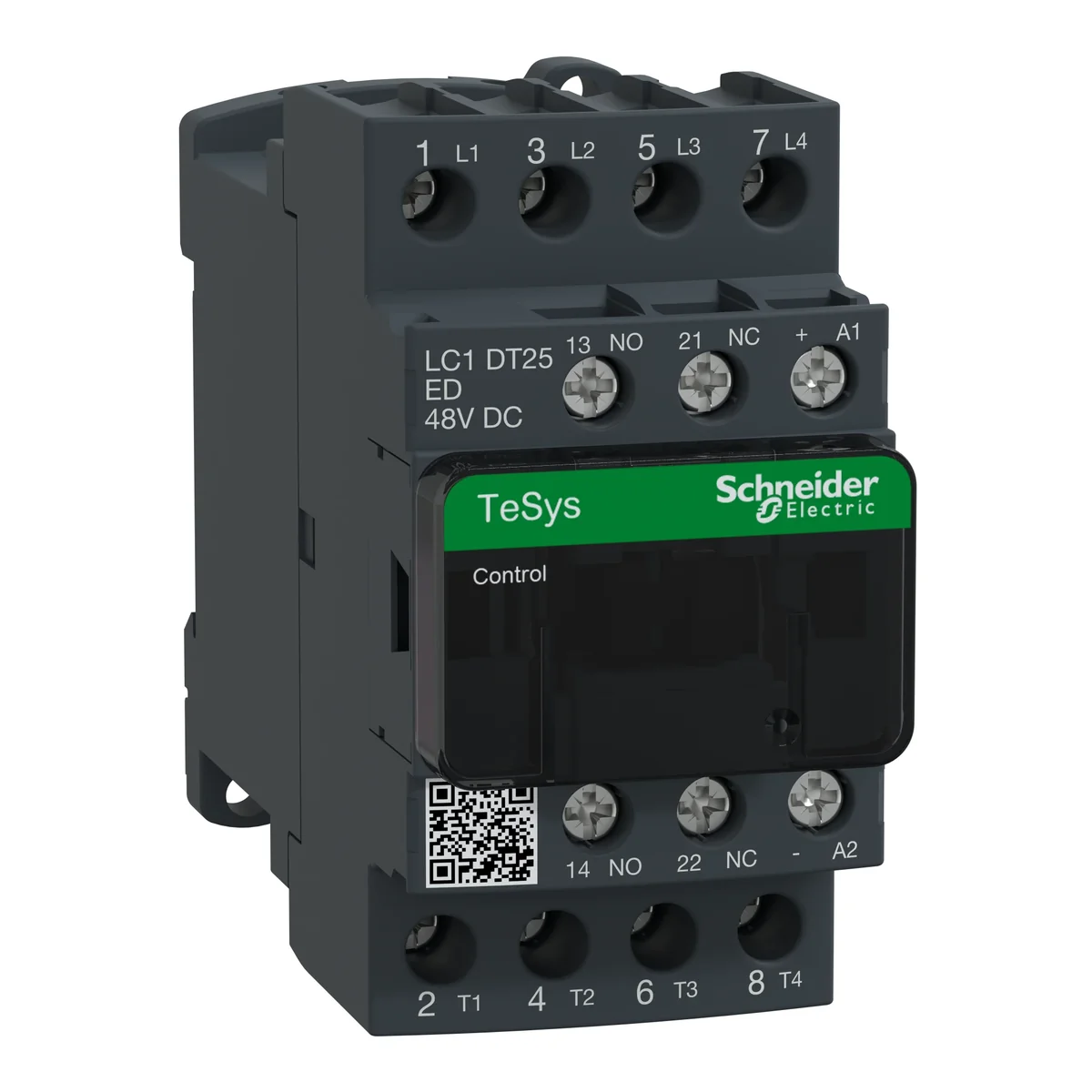

Power contactor TeSys D AC1 25A 4P 1NO 1NC coil 48VDC box terminals LC1DT25ED

local index:
ATD157SCHN
Catalog No:
LC1DT25ED
EAN code:
3389110247800
Manufacturer: SCHNEIDER ELECTRIC
DC control voltage [V]: 48
Price:
107,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor TeSys D AC1 25A 4P 1NO 1NC coil 48VDC box terminals

Technical data

  • DC control voltage [V]
    48
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage DC
    48 ... 48 V
  • Rated operation current Ie at AC-1, 400 V
    25 A
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    4
  • Voltage type for actuating
    DC
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
