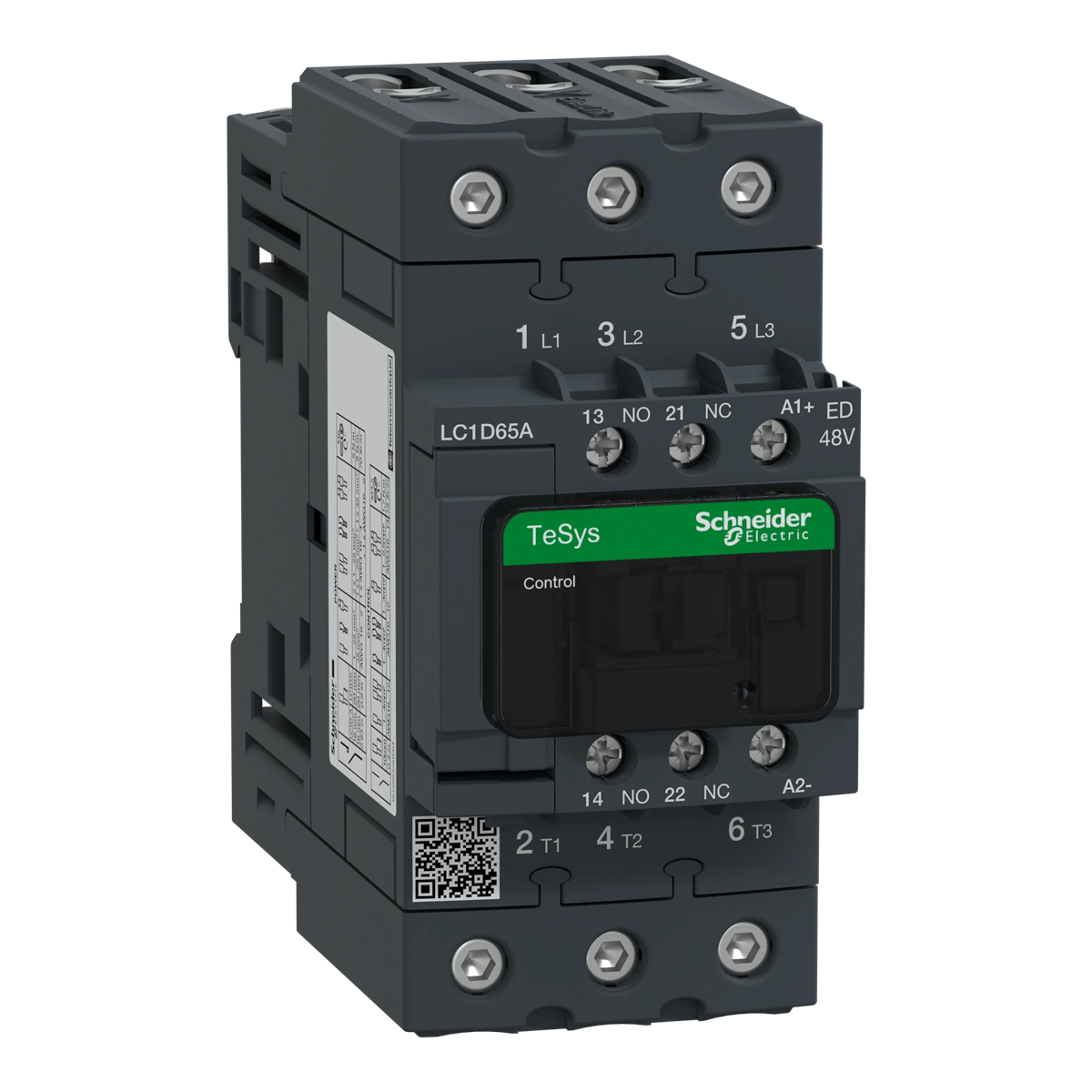

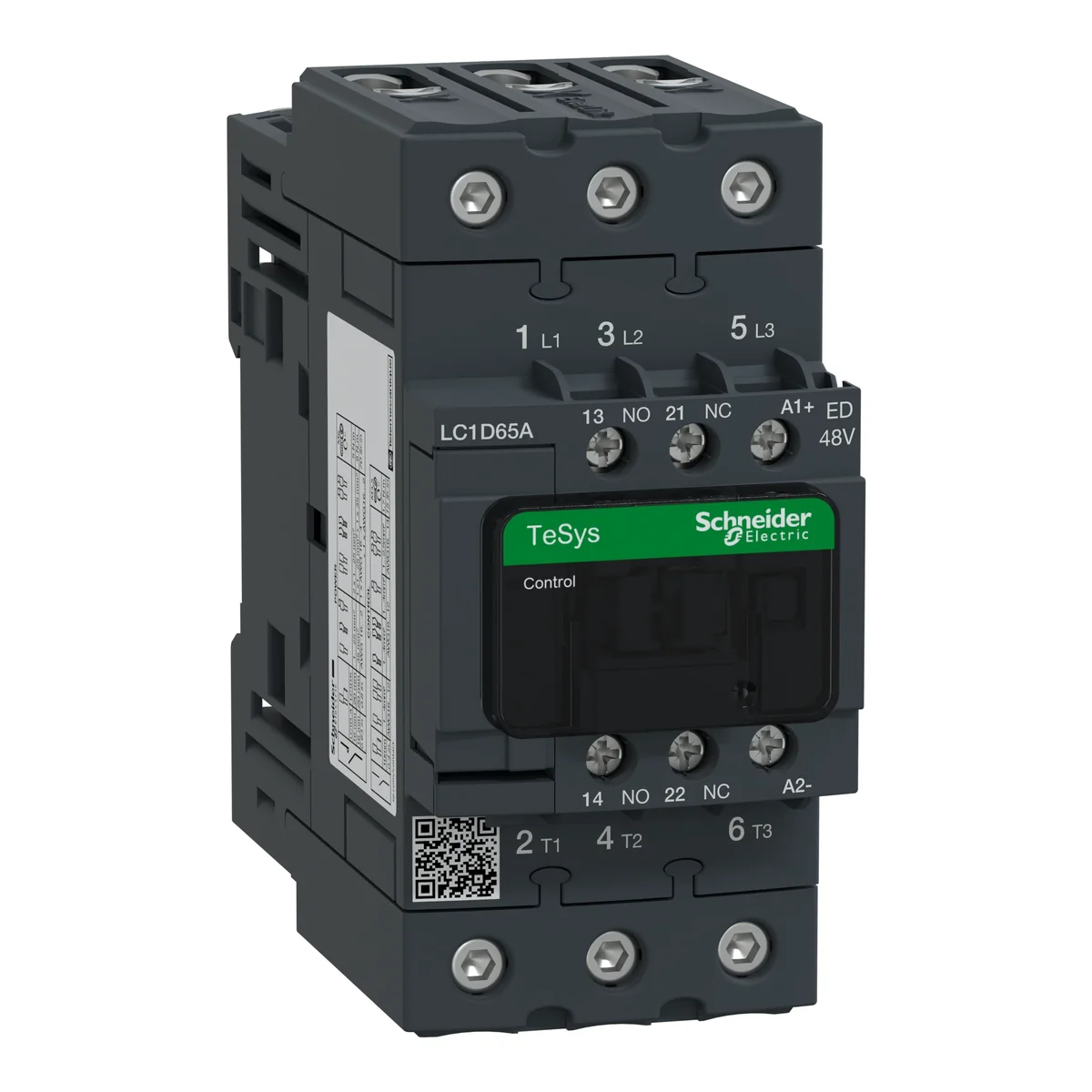

Power contactor TeSys D 65A 30kW 3P 1NO 1NC coil 48VDC EVK box terminals LC1D65AED
local index:
ATD145SCHN
Catalog No:
LC1D65AED
EAN code:
3389119409100
Manufacturer:
SCHNEIDER ELECTRIC
DC control voltage [V]: 48
Price:
324,31 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D 65A 30kW 3P 1NO 1NC coil 48VDC EVK box terminals
Technical data
-
DC control voltage [V]48
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage DC48 ... 48 V
-
Rated operation current Ie at AC-1, 400 V80 A
-
Rated operation power at AC-3, 400 V30 kW
-
Rated operation power at AC-4, 400 V11 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V65 A
-
Rated operation current Ie at AC-4, 400 V25 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
