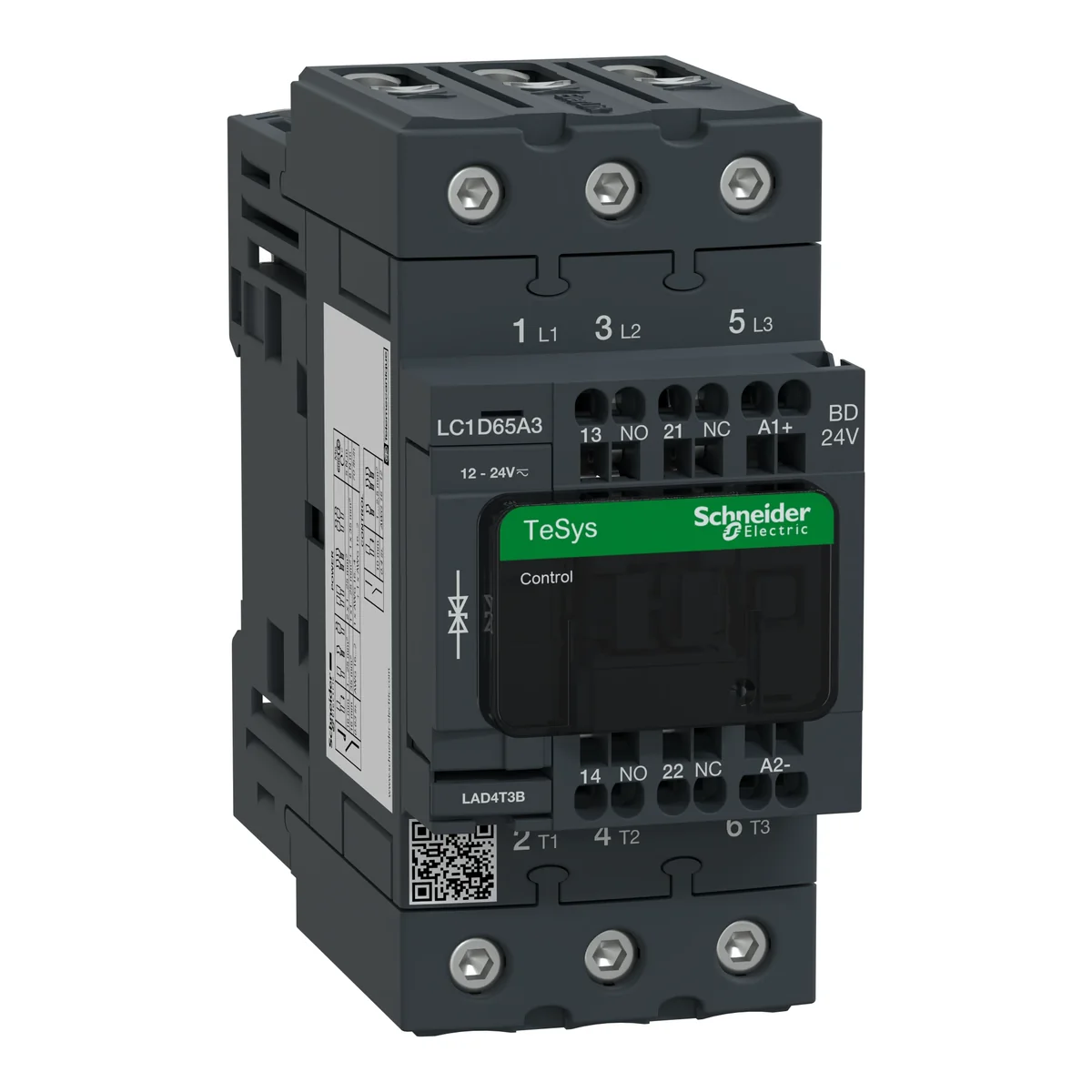

Power contactor TeSys D 65A 30kW 3P 1NO 1NC coil 24VDC EVK spring terminals LC1D65A3BD

local index:
ATD129SCHN
Catalog No:
LC1D65A3BD
EAN code:
3389119409193
Manufacturer: SCHNEIDER ELECTRIC
DC control voltage [V]: 24
Price:
347,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor TeSys D 65A 30kW 3P 1NO 1NC coil 24VDC EVK spring terminals

Technical data

  • DC control voltage [V]
    24
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage DC
    24 ... 24 V
  • Rated operation current Ie at AC-1, 400 V
    80 A
  • Rated operation power at AC-3, 400 V
    30 kW
  • Rated operation power at AC-4, 400 V
    11 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Spring clamp connection
  • Number of normally open contacts as main contact
    3
  • Voltage type for actuating
    DC
  • Rated operation current Ie at AC-3, 400 V
    65 A
  • Rated operation current Ie at AC-4, 400 V
    25 A
  • Modular version
    No
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
