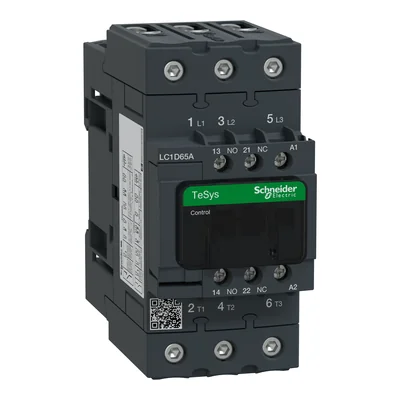

Power contactor TeSys D 65A 30kW 3P 1NO 1NC coil 208VAC EVK box terminals LC1D65ALE7

local index:
ATA581SCHN
Catalog No:
LC1D65ALE7
EAN code:
3389118328365
Manufacturer: SCHNEIDER ELECTRIC
AC control voltage [V]: 208
Price:
223,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Power contactor TeSys D 65A 30kW 3P 1NO 1NC coil 208VAC EVK box terminals

Technical data

  • AC control voltage [V]
    208
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage AC 60 Hz
    208 ... 208 V
  • Rated operation current Ie at AC-1, 400 V
    80 A
  • Rated operation power at AC-3, 400 V
    30 kW
  • Rated operation power at AC-4, 400 V
    30 kW
  • Modular version
    Yes
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    65 A
  • Rated operation current Ie at AC-4, 400 V
    65 A
  • Rated operation power NEMA
    29.8 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3
