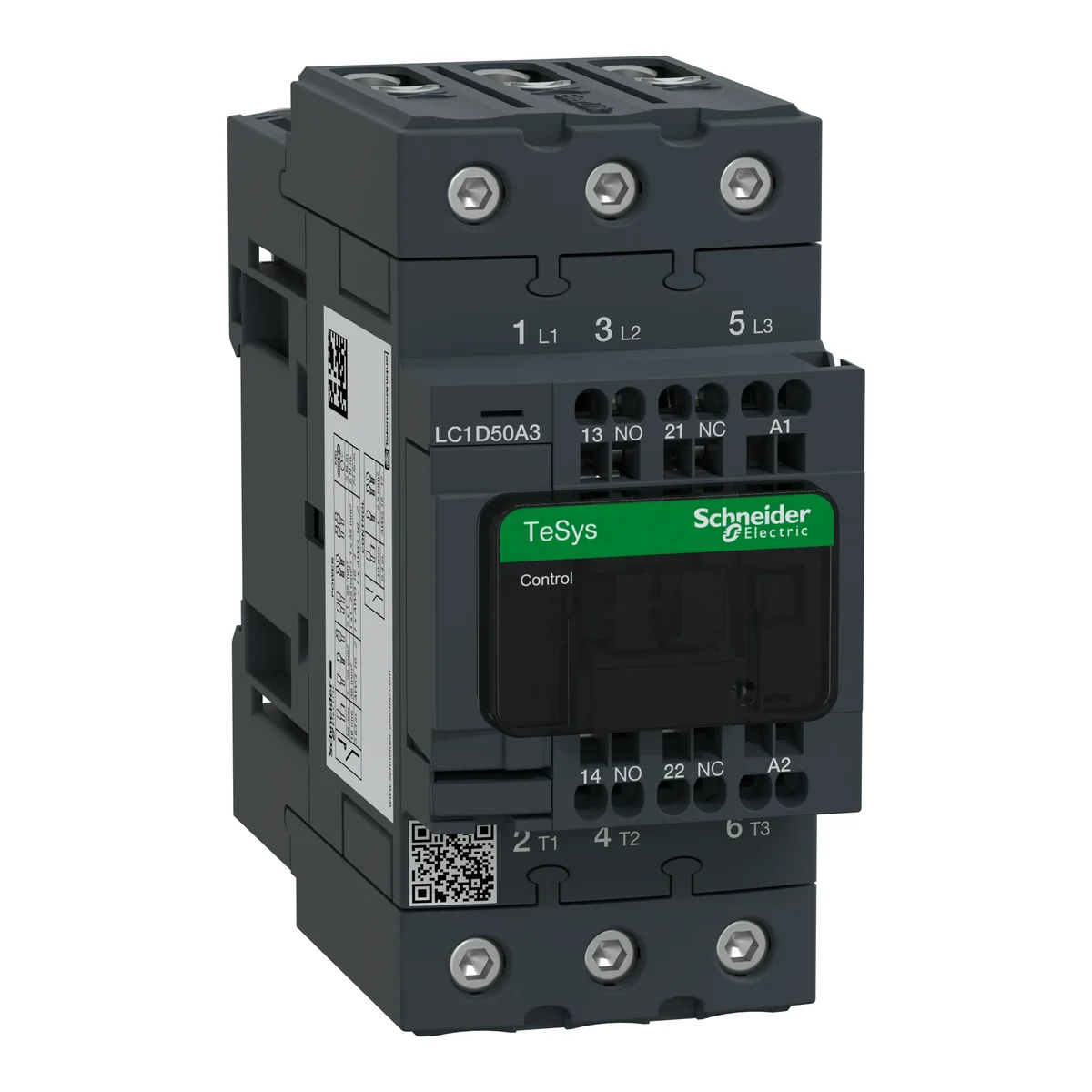

Power contactor TeSys D 50A 3P 1NO 1NC coil 48VAC EVK spring terminals LC1D50A3E7
local index:
ATA482SCHN
Catalog No:
LC1D50A3E7
EAN code:
3389119408868
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]: 48
Price:
182,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D 50A 3P 1NO 1NC coil 48VAC EVK spring terminals
Technical data
-
AC control voltage [V]48
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 50 Hz48 ... 48 V
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V50 A
-
Rated operation current Ie at AC-4, 400 V25 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Rated control supply voltage AC 60 Hz48 ... 48 V
-
Rated operation current Ie at AC-1, 400 V80 A
-
Rated operation power at AC-3, 400 V22 kW
-
Rated operation power at AC-4, 400 V11 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitSpring clamp connection
-
Number of normally open contacts as main contact3
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Phone number
-
Tax identification number5220011965
-
GLN5900009931556
