Power contactor TeSys D 50A 3P 1NO 1NC coil 480VAC EVK box terminals LC1D50AT7
local index:
ATA527SCHN
Catalog No:
LC1D50AT7
EAN code:
3389119408769
Manufacturer:
SCHNEIDER ELECTRIC
AC control voltage [V]: 480
Price:
172,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

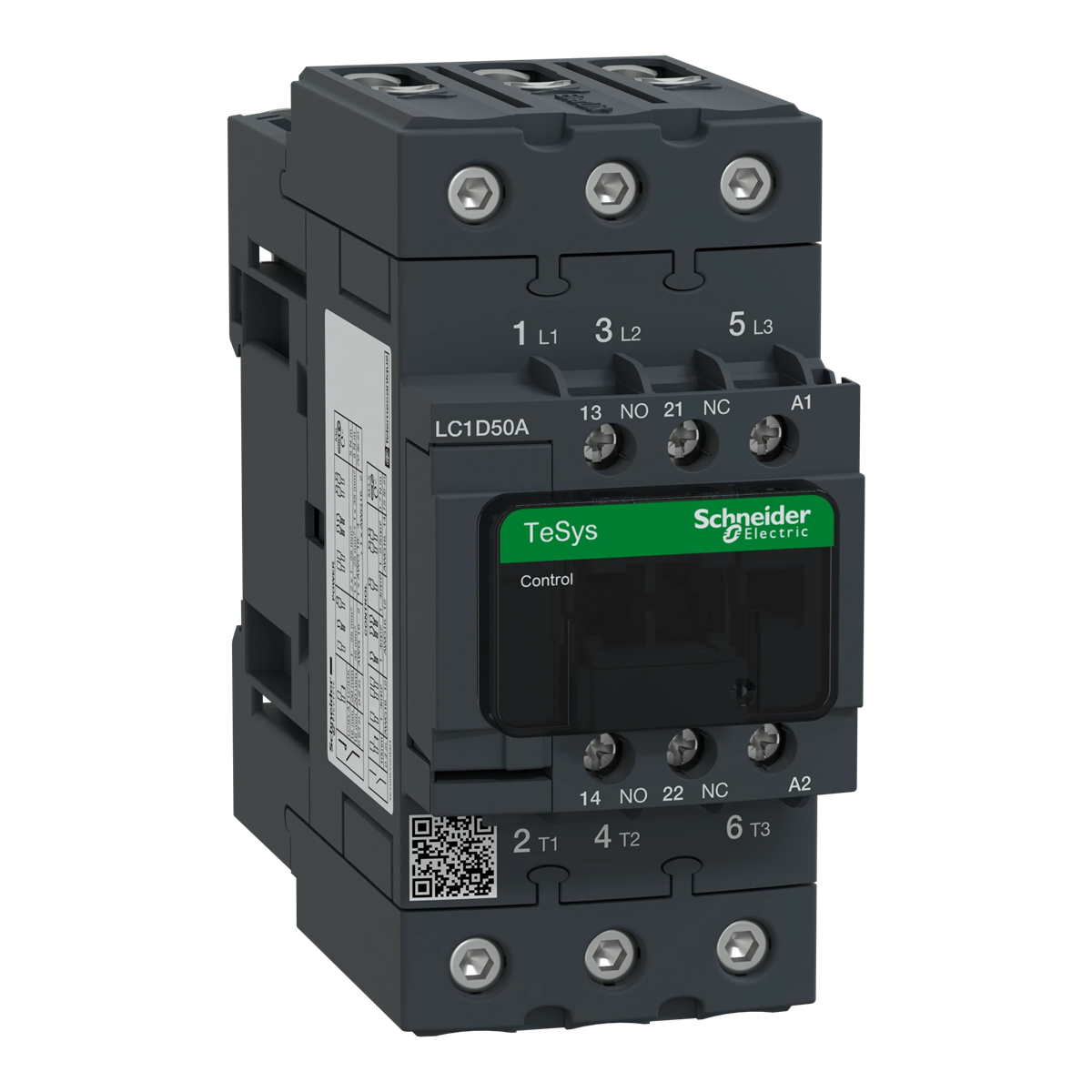

Power contactor TeSys D 50A 3P 1NO 1NC coil 480VAC EVK box terminals
Technical data
-
AC control voltage [V]480
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage AC 60 Hz480 ... 480 V
-
Rated operation current Ie at AC-1, 400 V80 A
-
Rated operation power at AC-3, 400 V22 kW
-
Rated operation power at AC-4, 400 V22 kW
-
Modular versionYes
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
-
Voltage type for actuatingAC
-
Rated operation current Ie at AC-3, 400 V50 A
-
Rated operation current Ie at AC-4, 400 V50 A
-
Rated operation power NEMA29.8 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
