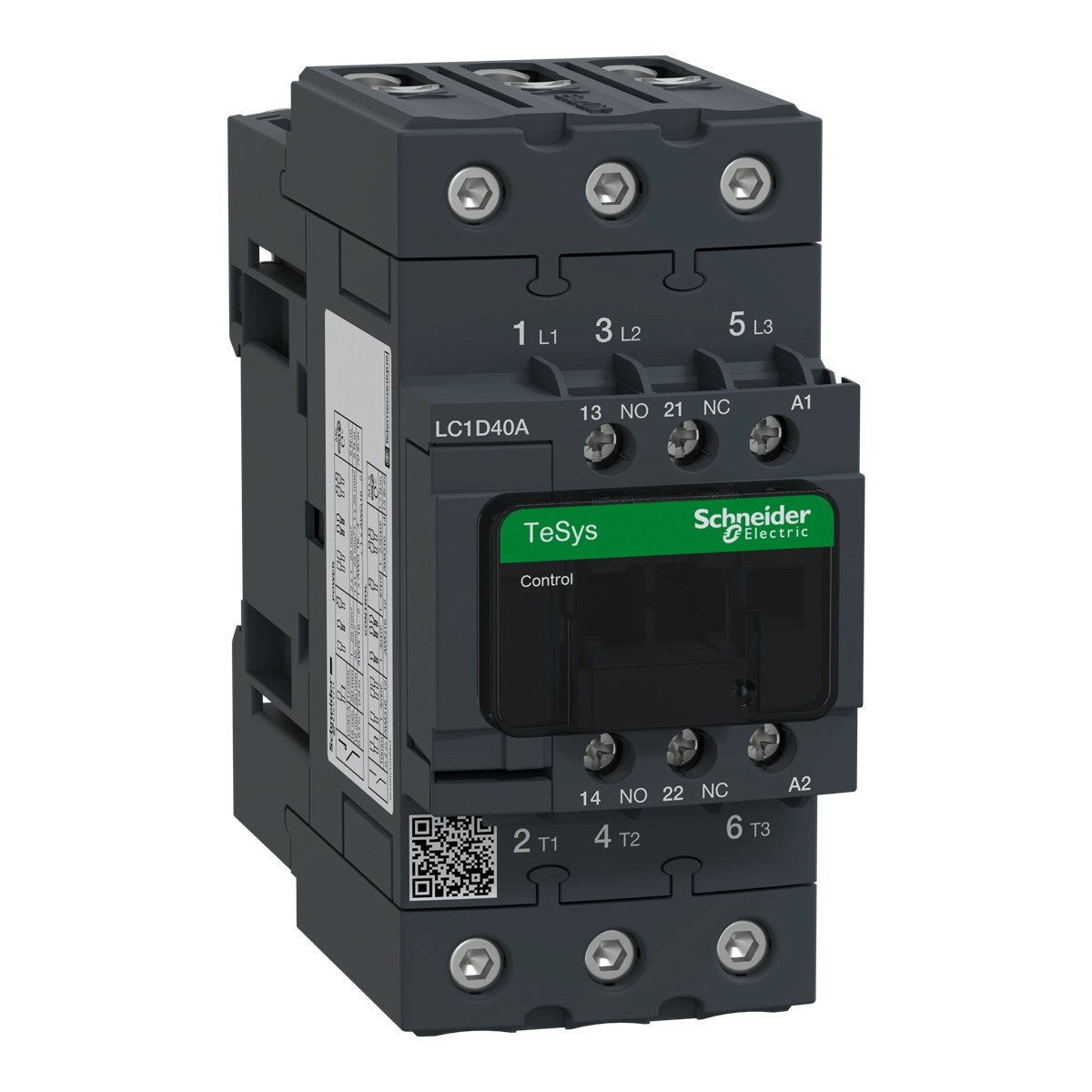

Power contactor TeSys D 40A 3P 1NO 1NC coil 32VAC EVK box terminals LC1D40AC7

local index:
ATA460SCHN
Catalog No:
LC1D40AC7
EAN code:
3389118326705
Manufacturer: SCHNEIDER ELECTRIC
AC control voltage [V]: 32
Price:
181,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Power contactor TeSys D 40A 3P 1NO 1NC coil 32VAC EVK box terminals

Technical data

  • AC control voltage [V]
    32
  • PKWIU
    27.12.24.0

Other technical data

  • Rated control supply voltage AC 50 Hz
    32 ... 32 V
  • Voltage type for actuating
    AC
  • Rated operation current Ie at AC-3, 400 V
    40 A
  • Rated operation current Ie at AC-4, 400 V
    20 A
  • Modular version
    no
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of normally closed contacts as main contact
    0
  • Rated control supply voltage AC 60 Hz
    32 ... 32 V
  • Rated operation current Ie at AC-1, 400 V
    60 A
  • Rated operation power at AC-3, 400 V
    18.5 kW
  • Rated operation power at AC-4, 400 V
    9 kW
  • Number of auxiliary contacts as normally open contact
    1
  • Type of electrical connection of main circuit
    Screw connection
  • Number of normally open contacts as main contact
    3
