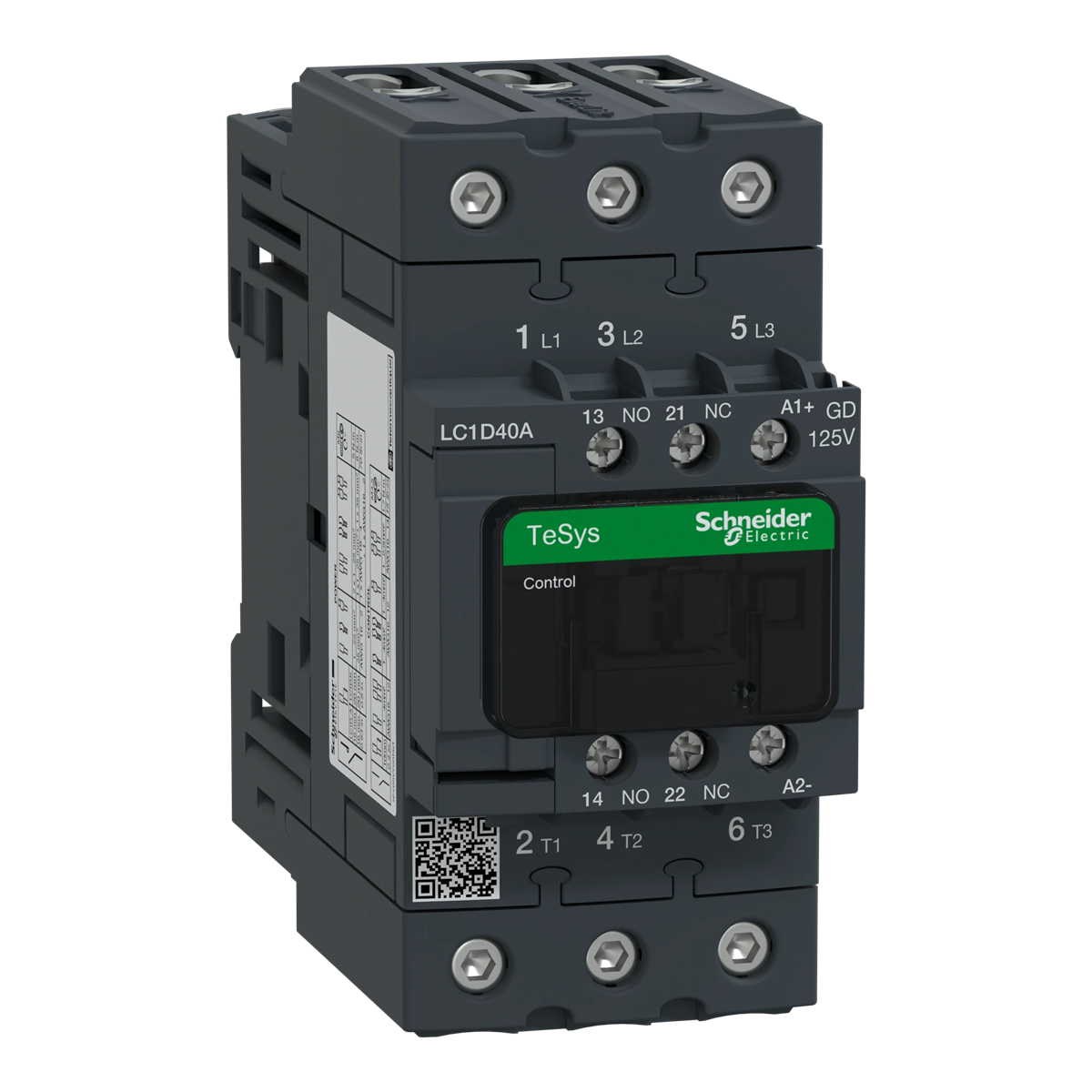

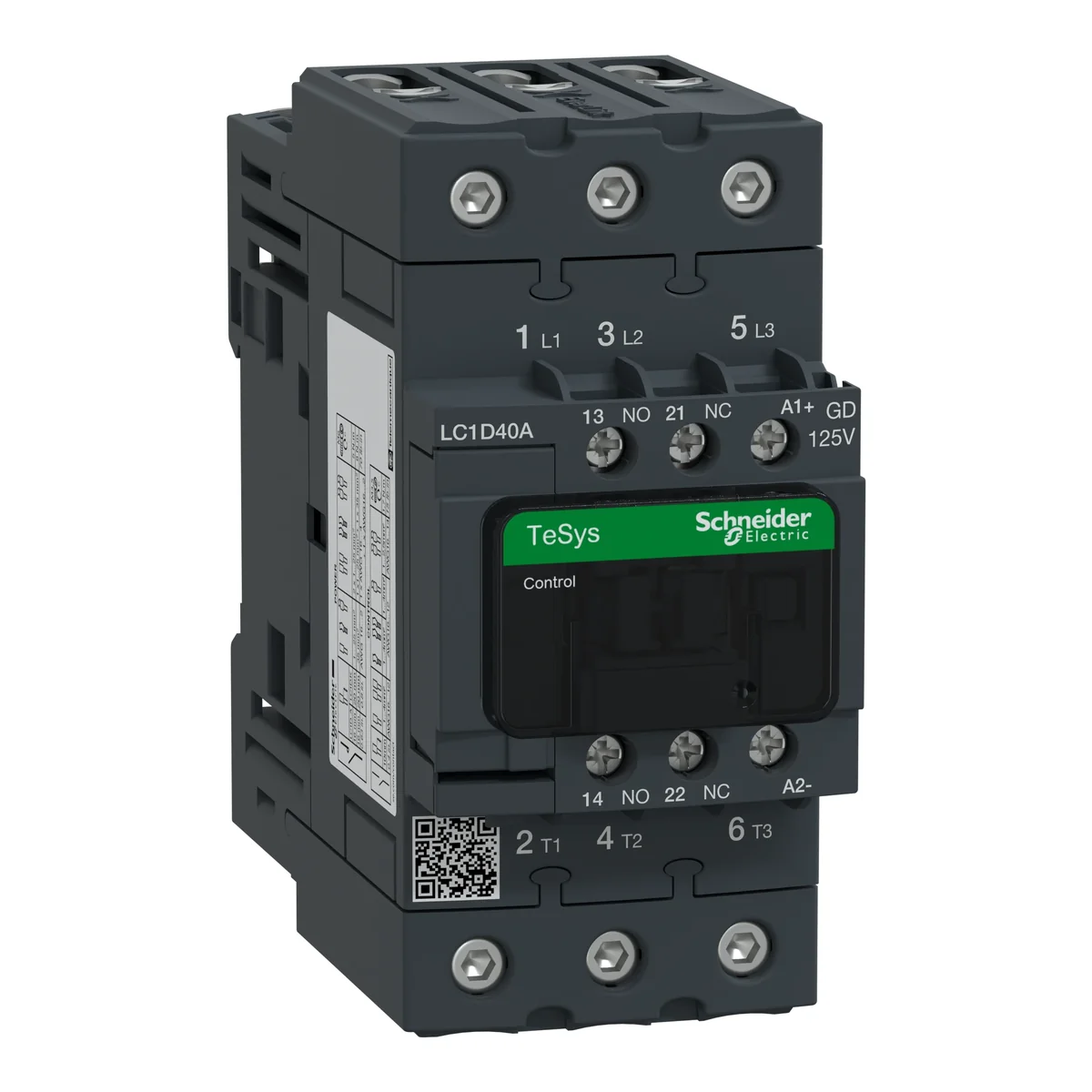

Power contactor TeSys D 40A 3P 1NO 1NC coil 125VDC EVK box terminals LC1D40AGD
local index:
ATD115SCHN
Catalog No:
LC1D40AGD
EAN code:
3389119408523
Manufacturer:
SCHNEIDER ELECTRIC
DC control voltage [V]: 125
Price:
201,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Power contactor TeSys D 40A 3P 1NO 1NC coil 125VDC EVK box terminals
Technical data
-
DC control voltage [V]125
-
PKWIU27.12.24.0
Other technical data
-
Rated control supply voltage DC125 ... 125 V
-
Rated operation current Ie at AC-1, 400 V60 A
-
Rated operation power at AC-3, 400 V18.5 kW
-
Rated operation power at AC-4, 400 V9 kW
-
Number of auxiliary contacts as normally open contact1
-
Type of electrical connection of main circuitScrew connection
-
Number of normally open contacts as main contact3
-
Voltage type for actuatingDC
-
Rated operation current Ie at AC-3, 400 V40 A
-
Rated operation current Ie at AC-4, 400 V20 A
-
Modular versionNo
-
Number of auxiliary contacts as normally closed contact1
-
Number of normally closed contacts as main contact0
Manufacturer details
-
ManufacturerSchneider Electric Polska Sp. z o.o.
-
Address02-673 Warszawa ul. Konstruktorska 12
-
Phone number
-
Tax identification number5220011965
-
GLN5900009931556
