Power contactor, Easy TeSys Control, AC-3, 32A, 3P(1NO), coil 230V, 50/60Hz LC1E3210P7

Místní index:

ATA194SCHN

Katalogové číslo.:

LC1E3210P7

EAN kód:

3606480894701

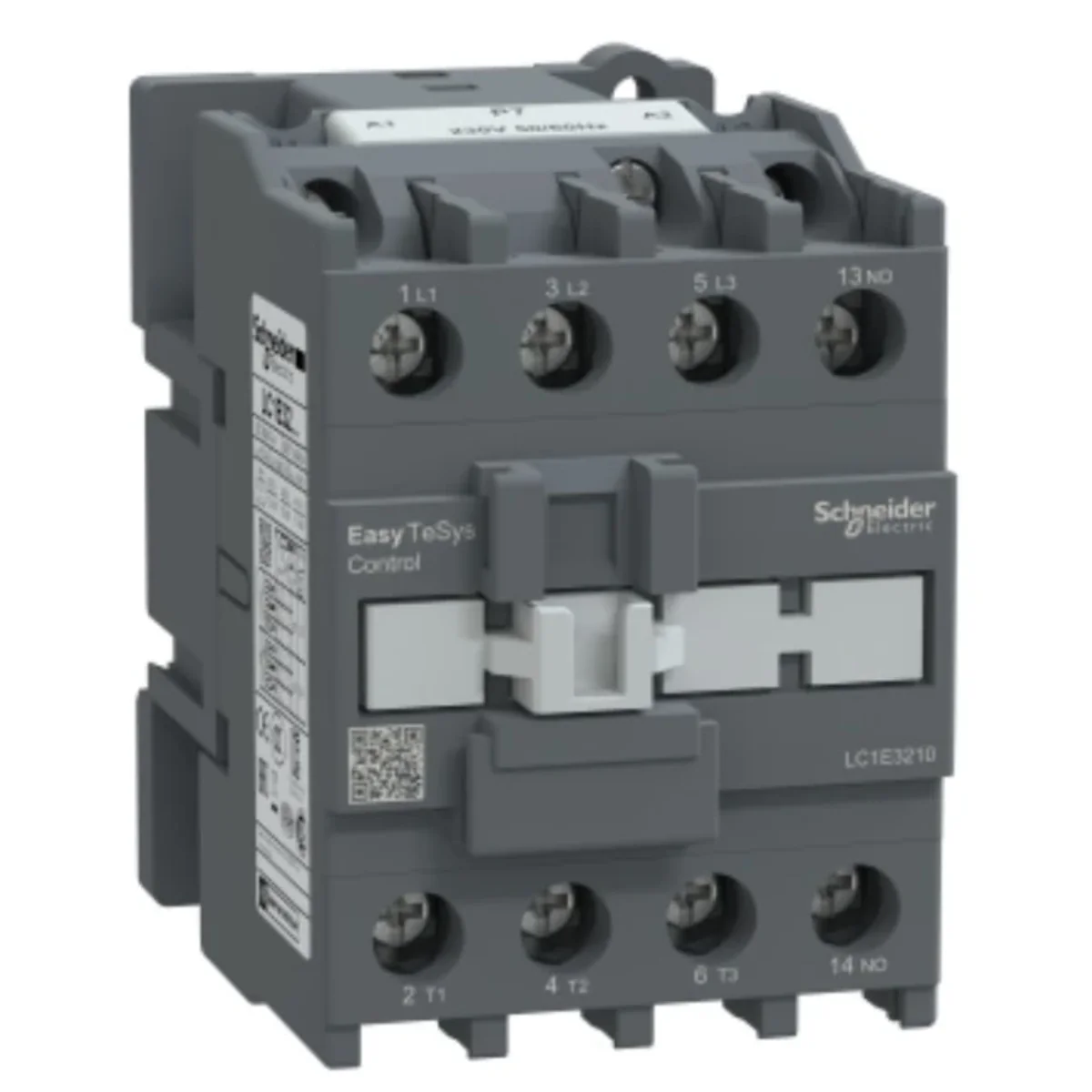

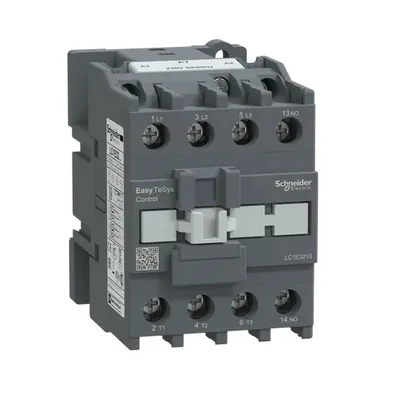

Power contactor, Easy TeSys Control, AC-3, 32A, 3P(1NO), coil 230V, 50/60Hz

Kliknutím na obrázek jej zvětšíte

Výrobce: SCHNEIDER ELECTRIC

gG fuse [A]: 10-63

Frequency [Hz]: 50-60

Depth [mm]: 86

Zobrazit celý popis

Cena:

211,74 zł

gross / kusů.

(včetně DPH 23%)

k dispozici 1 kusů.

Množství kusů.

(vícenásobné:

)

Přidat do žádosti o cenovou nabídku

Přidat do schránky

Vytisknout

Dotaz na výrobek

Popis produktu Technické údaje Podrobnosti o výrobci Velkoobjemová balení Soubory ke stažení

Popis produktu

Easy TeSys Control 3-pole contactor for motor applications up to 32A 15kW at 440V. Equipped with a 230V 50/60Hz AC coil, built-in 1NO auxiliary contact, and screw-type power and control connections. 56mm wide, it offers a switching frequency of up to 1800 cycles per hour. It offers standard reliability and durability of 1M electrical cycles for category AC-3 and 8M mechanical cycles. It can operate at temperatures from -5°C to 55°C and can be DIN rail-mounted without derating up to 3000m above sea level. Certified to multiple standards (IEC, CCC, EAC) and Green Premium (RoHs/Reach) compliant.

Technické údaje

gG fuse [A]

10-63
Depth [mm]

86
Number of auxiliary contacts NO

1
Overvoltage category

III
Maximum engine power [kW]

18.5
Tightening torque [Nm]

1,2-2,1
Control voltage [V]

230
Type of voltage

AC
Level of security

IP2X
Mechanical durability

8000000 cycles
Height [mm]

84
Rated impulse voltage [kV]

6
Rated inrush current [A]

416
Connection type

screw terminals
Rated operational current Ie for AC-1 400V [A]

50-60
Minimum switching current [mA]

5

Frequency [Hz]

50-60
Number of contacts

3NO
Impedance [Ω]

2.5
Number of poles

3P
Maximum operating temperature [°C]

55
Installation

On the TH-35 rail
Rated insulation voltage [V]

690
Family

Easy TeSys
Width [mm]

56
Weight [kg]

0.45
Rated switching voltage [V]

690
Rated thermal current [A]

50
Minimum operating temperature [°C]

-5
Degree of soiling

3
Rated operational current Ie for AC-3 400V [A]

32
Minimum cut-off voltage [V]

17

Další technické údaje

Rated control supply voltage AC 50 Hz

230 ... 230 V
Voltage type for actuating

AC
Number of normally open contacts as main contact

3
Rated operation current Ie at AC-1, 400 V

50 A
Rated operation power at AC-3, 400 V

15 kW
Number of auxiliary contacts as normally closed contact

0

Rated control supply voltage AC 60 Hz

230 ... 230 V
Number of normally closed contacts as main contact

0
Type of electrical connection of main circuit

Screw connection
Rated operation current Ie at AC-3, 400 V

32 A
Number of auxiliary contacts as normally open contact

1
Modular version

No

Podrobnosti o výrobci

Výrobce

Schneider Electric Polska
Adresa

02-673 Warszawa Konstruktorska 12 Polska
E-mail

poland.helpdesk@se.com

Velkoobjemová balení

Typ obalu	Sztuka	Karton	Paleta	Sztuka	Karton	Paleta
Množství	1 kusů.	24 kusů.	384 kusů.	1 kusů.	24 kusů.	384 kusů.
Hmotnost (kg)	0,457	11,272	188,352	0,457	11,272	188,352
Objem (m3)	0,000	0,018	0,360	0,000	0,018	0,360
Šířka (m)	0,085	0,300	0,600	0,085	0,300	0,600
Délka (m)	0,090	0,400	0,800	0,090	0,400	0,800
Hloubka (m)	0,060	0,150	0,750	0,060	0,150	0,750
