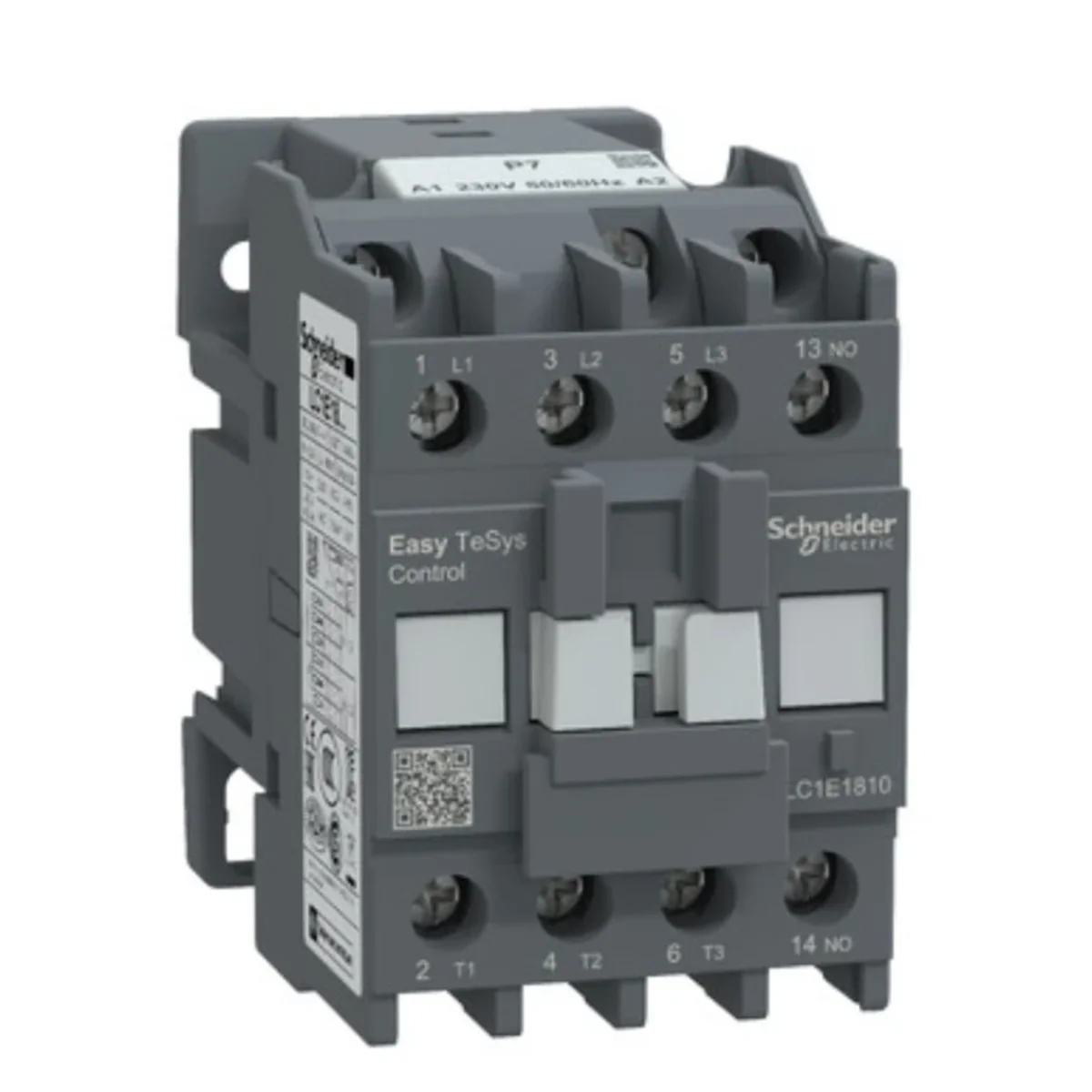

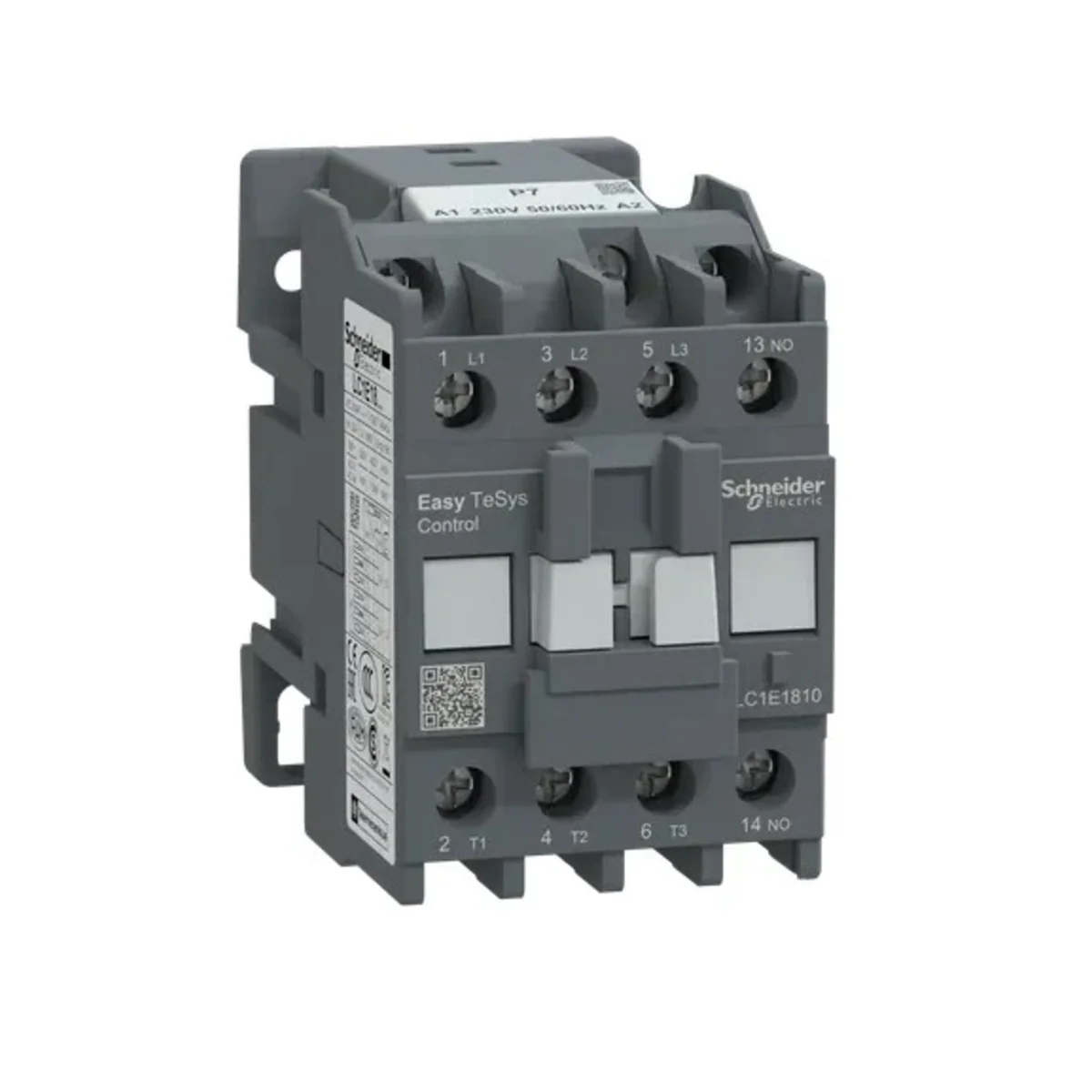

Power contactor, Easy TeSys Control, AC-3, 18A, 3P(1NO), coil 230V, 50/60Hz LC1E1810P7
Indeks lokalny:
ATA153SCHN
Numer katalogowy:
LC1E1810P7
Kod EAN:
3606480894664
Cena:
105,39 zł
gross / szt.
(w tym VAT 23%)
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj
Zapytaj o produkt
Opis produktu
The Easy TeSys Control 3-pole contactor is suitable for motor applications up to 18A 9kW at 440V. It features a 230V 50/60Hz AC coil, a built-in 1NO auxiliary contact, and screw-type power and control connections. It's 45mm wide and has a switching frequency of up to 1800 cycles per hour. It offers standard reliability and durability with 1.2M electrical cycles for category AC-3 and 10M mechanical cycles. It can operate at temperatures from -5°C to 55°C and can be DIN rail-mounted without derating up to 3000m above sea level. It's certified to multiple standards (IEC, CCC, EAC) and Green Premium (RoHs/Reach) compliant.
Dane techniczne
-
gG fuse [A]10-35
-
Depth [mm]80
-
Number of auxiliary contacts NO1
-
Overvoltage categoryIII
-
Maximum engine power [kW]10
-
Tightening torque [Nm]1.2
-
Control voltage [V]230
-
Type of voltageAC
-
Level of securityIP2X
-
Mechanical durability10000000 cycles
-
Height [mm]74
-
Rated impulse voltage [kV]6
-
Rated inrush current [A]234
-
Connection typescrew terminals
-
Rated operational current Ie for AC-1 400V [A]32
-
Minimum switching current [mA]5
-
Frequency [Hz]50-60
-
Number of contacts3NO
-
Impedance [Ω]2.5
-
Number of poles3P
-
Maximum operating temperature [°C]55
-
InstallationOn the TH-35 rail
-
Rated insulation voltage [V]690
-
FamilyEasy TeSys
-
Width [mm]45
-
Weight [kg]0.3
-
Rated switching voltage [V]690
-
Rated thermal current [A]32
-
Minimum operating temperature [°C]-5
-
Degree of soiling3
-
Rated operational current Ie for AC-3 400V [A]18
-
Minimum cut-off voltage [V]17
Pozostałe dane techniczne
-
Rated control supply voltage AC 50 Hz230 ... 230 V
-
Voltage type for actuatingAC
-
Number of normally open contacts as main contact3
-
Rated operation current Ie at AC-1, 400 V32 A
-
Rated operation power at AC-3, 400 V7.5 kW
-
Number of auxiliary contacts as normally closed contact0
-
Rated control supply voltage AC 60 Hz230 ... 230 V
-
Number of normally closed contacts as main contact0
-
Type of electrical connection of main circuitScrew connection
-
Rated operation current Ie at AC-3, 400 V18 A
-
Number of auxiliary contacts as normally open contact1
-
Modular versionNo
