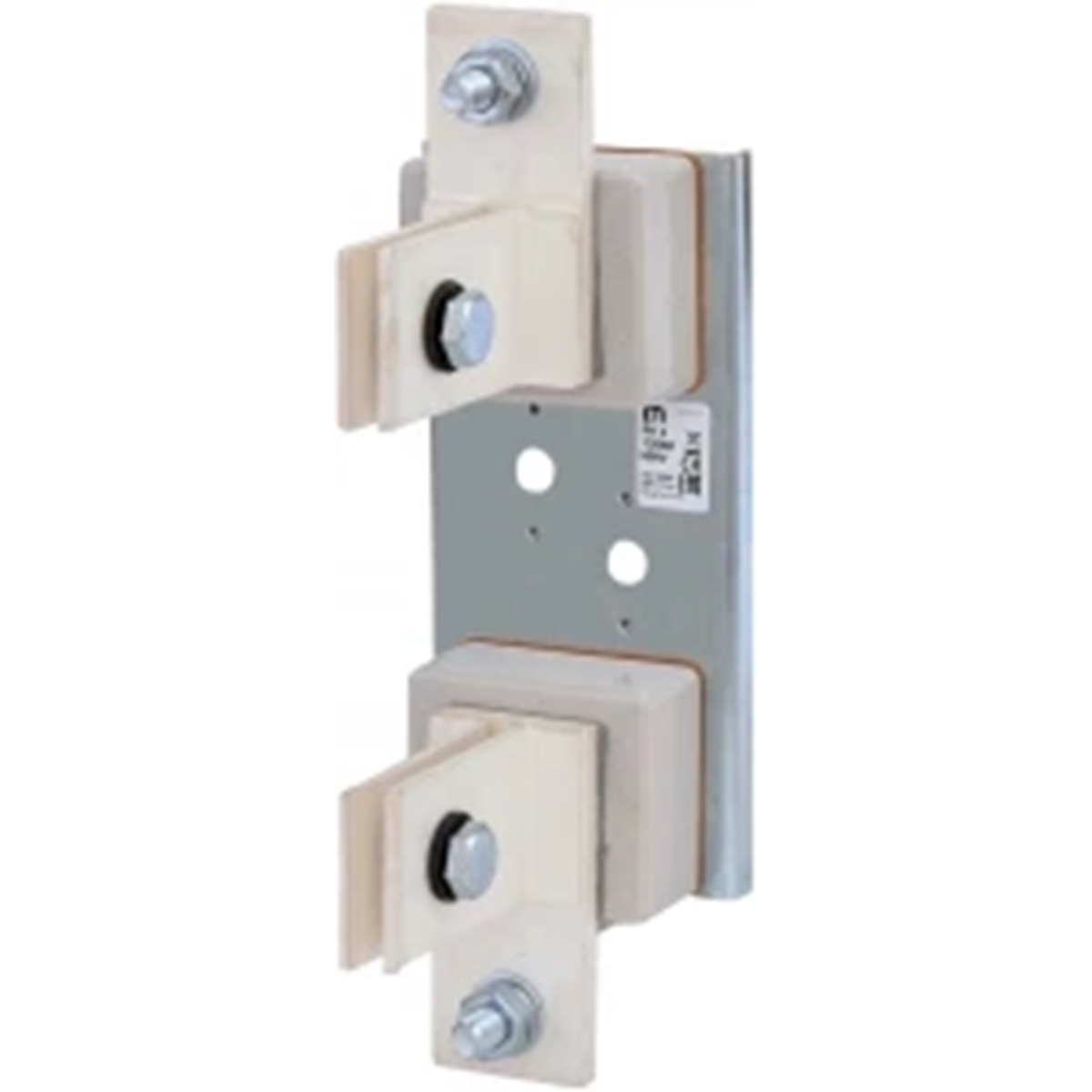

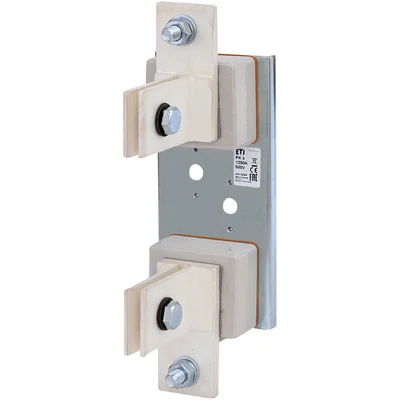

PK 4 fuse base 004122006

local index:
ABP012ETIP
Catalog No:
004122006
EAN code:
3838895003106
Manufacturer: ETI POLAM
Rated voltage [V]: 690
Rated current [A]: 1250
Weight [g]: 3030
Price:
92,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Fuse bases can be built into all types of switchgear, especially in industrial installations. Three-pole fuse bases type PK2 Z and PK2 ZZ are mounted directly on busbars with a spacing of 185mm.

Technical data

  • Rated voltage [V]
    690
  • Weight [g]
    3030
  • Rated current [A]
    1250
  • PKWIU
    27.12.21.0

Other technical data

  • Construction size
    NH4
  • Rated current
    1250 A
  • Number of poles
    1
