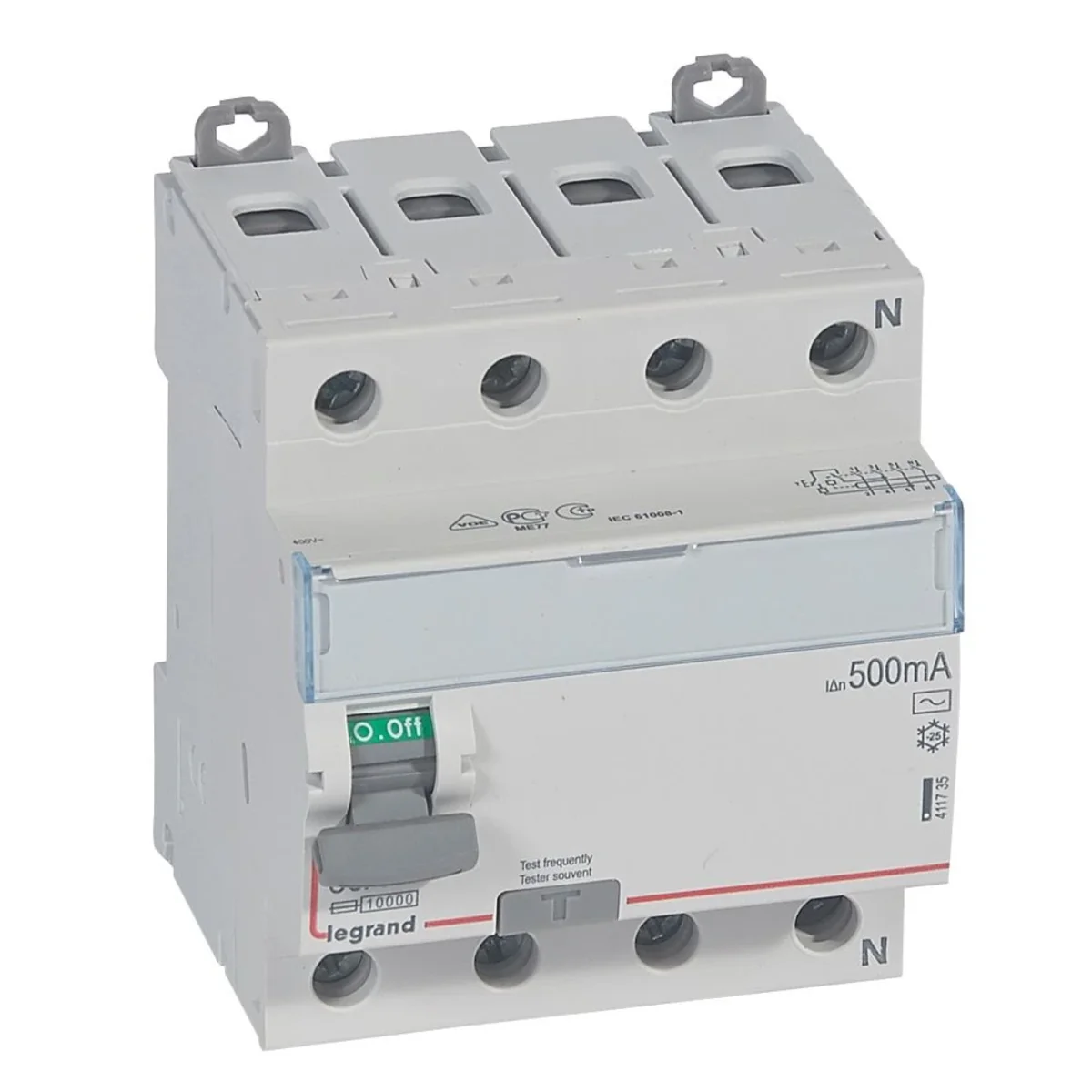

P 304 4P 80A 500MA AC TYPE DX3 SERIES RESIDUAL CURRENT CIRCUIT BREAKER 411735

Indice locale:
ARP025LEGR
Numero di catalogo:
411735
Codice EAN:
3245064117357
Produttore: LEGRAND
Prezzo:
624,82 zł
gross / pezzi
(inclusa IVA 23%)
2 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Dati tecnici

Altri dati tecnici

  • Number of poles
    4
  • Rated current
    80 A
  • Rated insulation voltage Ui
    500 V
  • Mounting method
    DIN rail
  • Selective protection
    No
  • Short-circuit breaking capacity (Icw)
    10 kA
  • Voltage type
    AC
  • Frequency
    50 Hz
  • Degree of protection (IP)
    IP20
  • Built-in depth
    44 mm
  • Pollution degree
    2
  • Connectable conductor cross section solid-core
    0.75 ... 50 mm²
  • RAL-number (similar)
    7035
  • Rated voltage
    400 V
  • Rated fault current
    0.5 A
  • Rated impulse withstand voltage Uimp
    4 kV
  • Leakage current type
    AC
  • Short-time delayed tripping
    No
  • Surge current capacity
    0.25 kA
  • With interlocking device
    Yes
  • Additional equipment possible
    Yes
  • Width in number of modular spacings
    4
  • Ambient temperature during operating
    -25 ... 60 °C
  • Connectable conductor cross section multi-wired
    0.75 ... 35 mm²
  • Colour
    Grey
  • Explosion-proof
    No

Dettagli del produttore

  • Produttore
    Legrand Polska Sp. z o.o.
  • Indirizzo
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska

Imballaggio sfuso

Una specie di pacchetto Pudełko Karton Paleta
Quantità 1 pezzi 12 pezzi 216 pezzi
Peso (kg) 0,349 4,488 80,784
Volume (m3) 0,001 0,012 0,432
Larghezza (m) 0,078 0,200 1,200
Lunghezza (m) 0,089 0,197 0,360
Profondità (m) 0,101 0,296 1,000
