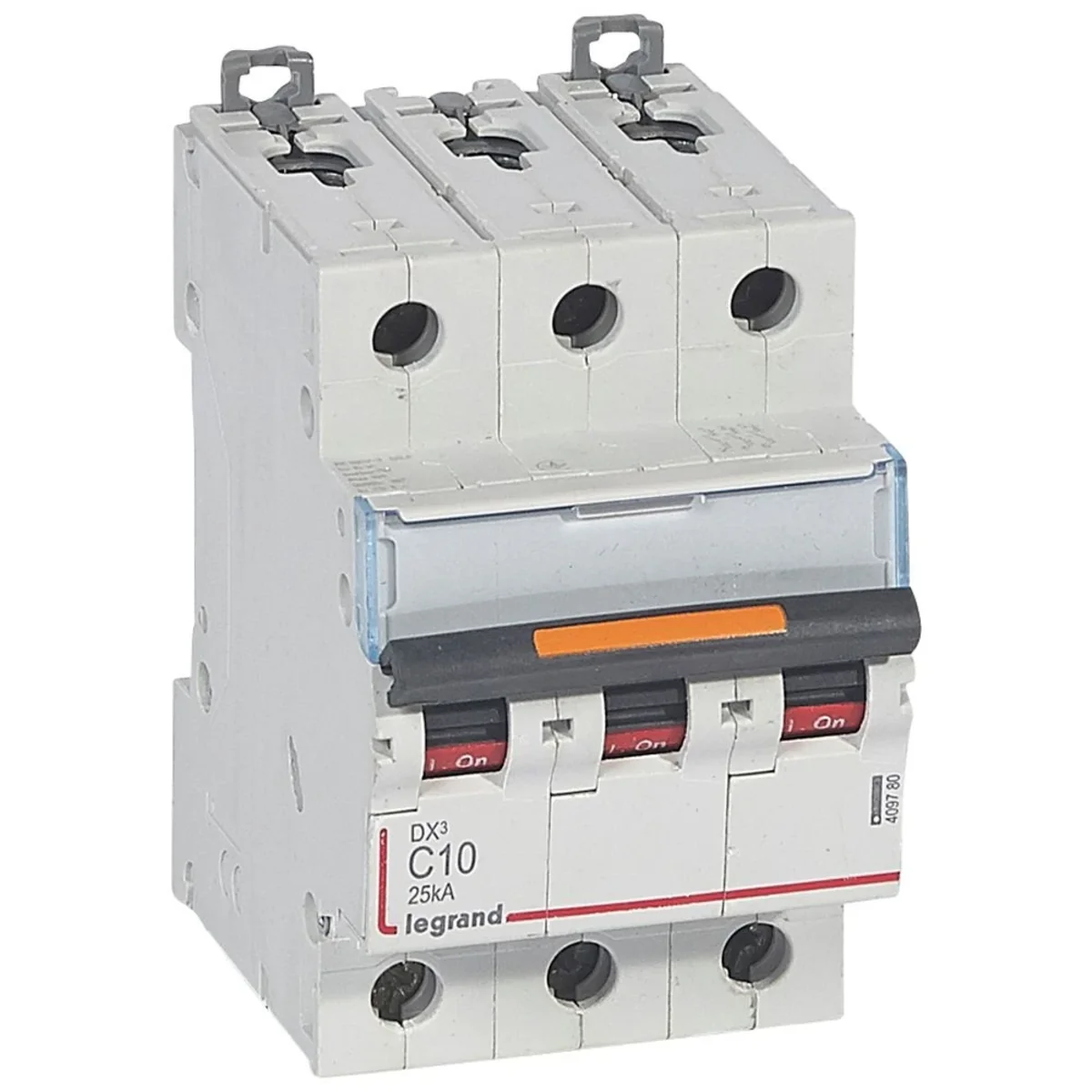

OVERCURRENT SWITCH S323 C10 3P 10 A 25KA DX3 409780

Name: OVERCURRENT SWITCH S323 C10 3P 10 A 25KA DX3
Brand: LEGRAND
SKU: ABC024LEGR
Price: 554.47 PLN
Availability: BackOrder

Índice local:

ABC024LEGR

Número de catálogo:

409780

Código EAN:

3245064097802

Haga clic en la foto para ampliar

Fabricante: LEGRAND

Precio:

554,47 zł

gross / uds.

(IVA incluido 23%)

2 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Datos técnicos

Built-in depth

44 mm
Number of poles (total)

3
Rated current

10 A
Rated insulation voltage Ui

500 V
Voltage type

AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

25 kA
Flush-mounted installation

Yes
Pollution degree

3
Width in number of modular spacings

3
Ambient temperature during operating

-25 ... 70 °C
Connectable conductor cross section solid-core

1.5 ... 35 mm²

Release characteristic

C
Number of protected poles

3
Rated voltage

400 V
Rated impulse withstand voltage Uimp

4 kV
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

50 kA
Frequency

50 ... 60 Hz
Concurrently switching neutral conductor

No
Additional equipment possible

Yes
Degree of protection (IP)

IP20
Connectable conductor cross section multi-wired

1.5 ... 25 mm²
Explosion-proof

No
