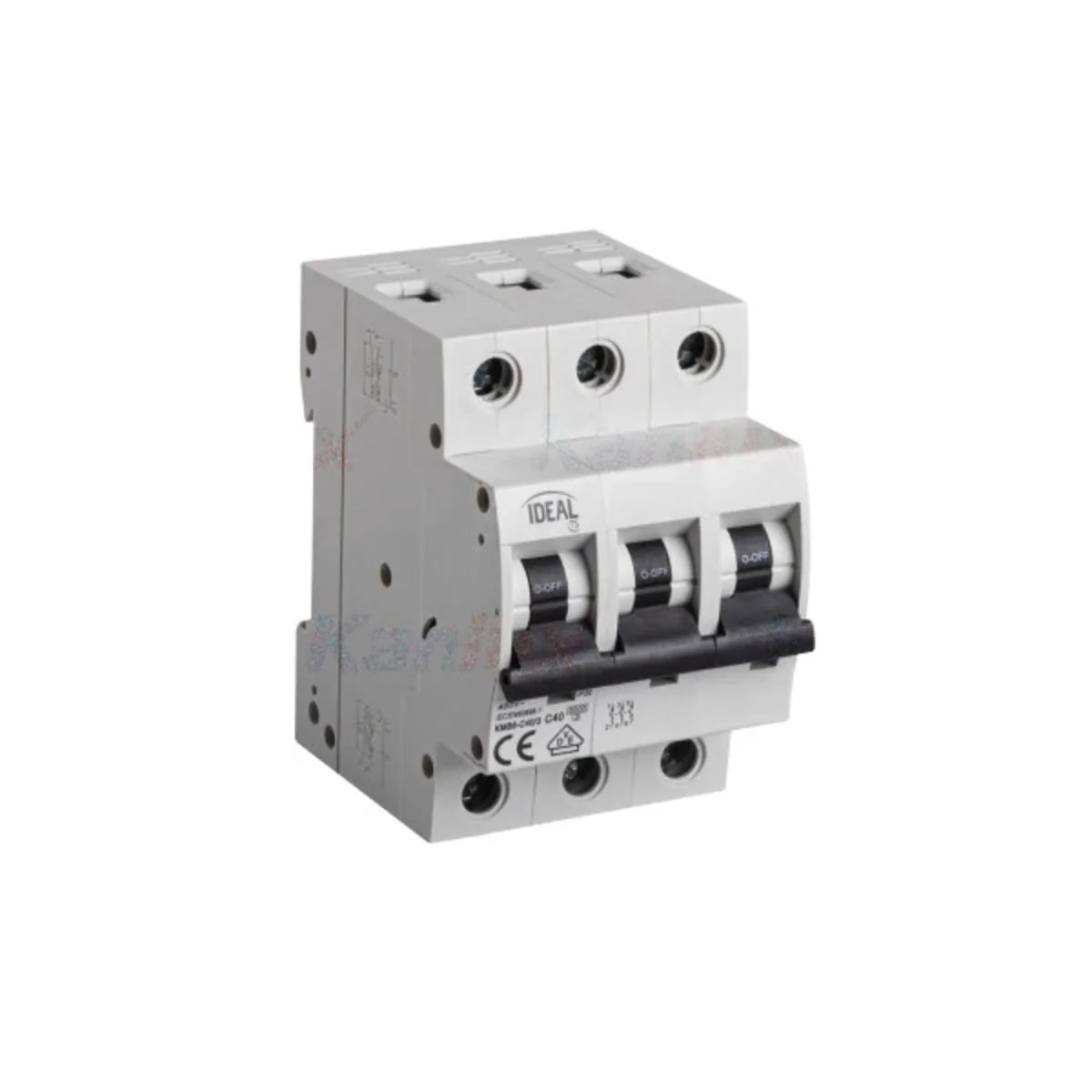

Overcurrent circuit breaker KMB6-C40/3 IP20 23165

local index:
ABC018KANL
Catalog No:
23165
EAN code:
5905339231659
Manufacturer: KANLUX
Characteristic: c
Rated frequency [Hz]: 50/60
Energy limitation class: 3
Price:
10,33 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

A circuit breaker with overcurrent protection KMB6-C40/3 is used to protect wires against overloads and short circuits in installations and devices.

Conforms to PN- EN 60898-1

Technical data

  • Characteristic
    c
  • Energy limitation class
    3
  • Number of poles
    3
  • Rated voltage [V]
    230
  • Rated short-circuit current [A]
    6000
  • Number of modules
    3
  • Rated frequency [Hz]
    50/60
  • Color
    White
  • Installation
    On the TH35 rail
  • Rated current [A]
    40
  • Level of security
    IP20
  • PKWIU
    27.12.22.0
