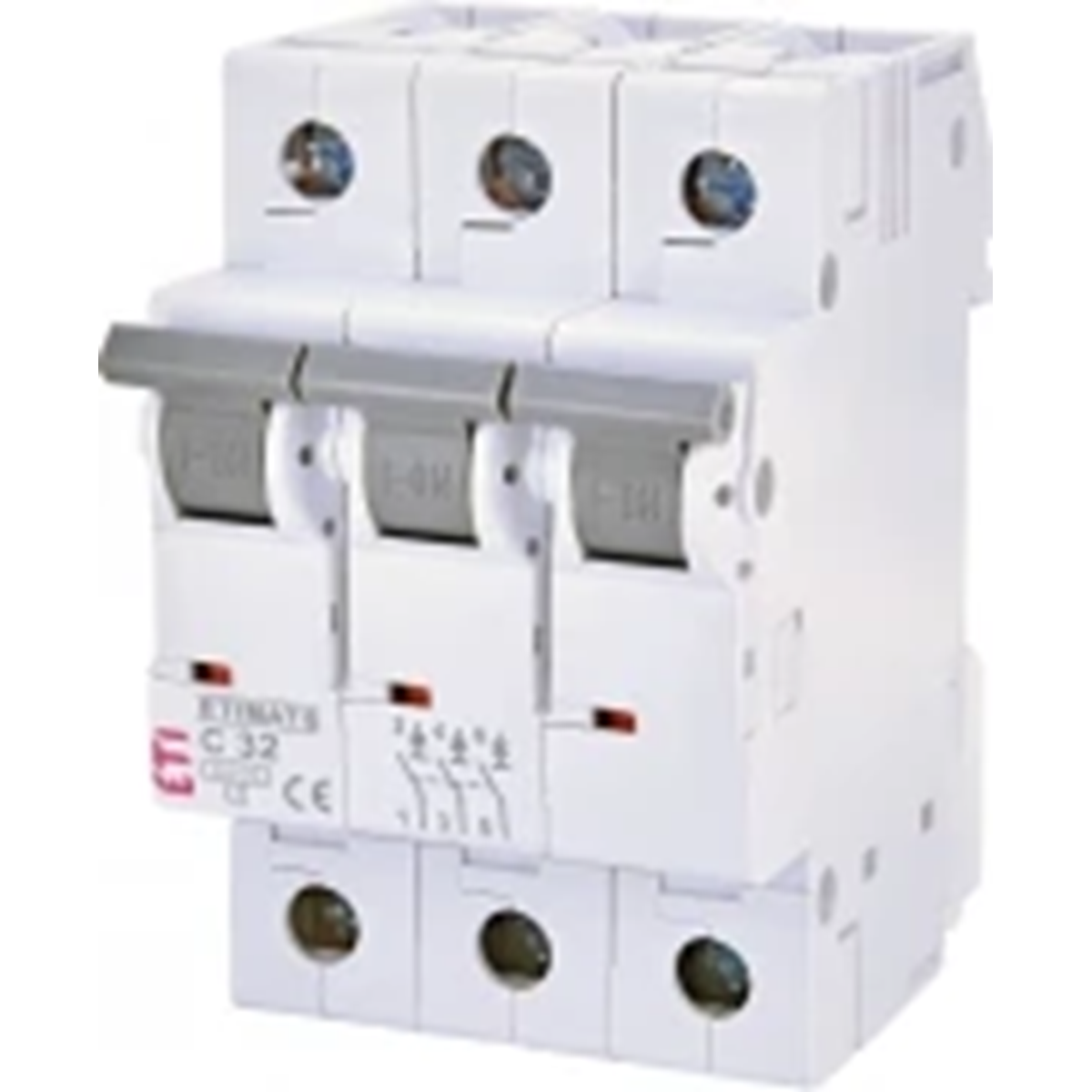

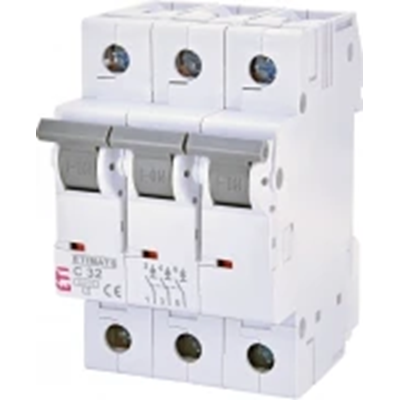

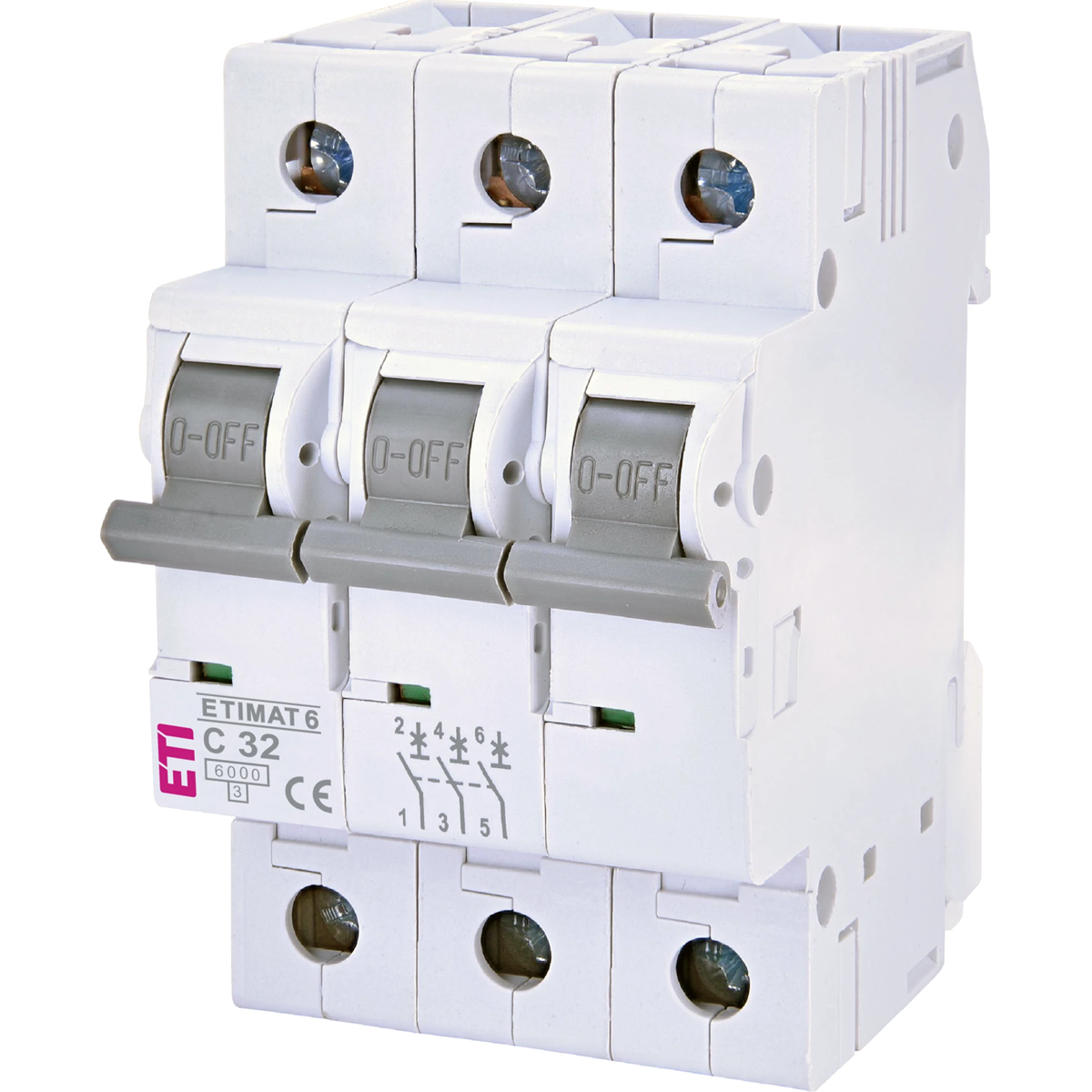

Overcurrent circuit breaker ETIMAT 6 32A 230V 002145519
local index:
ABC026ETIP
Catalog No:
002145519
EAN code:
3838895265849
Price:
18,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
C32 overcurrent circuit breaker used as protection of electrical installations in facilities.
Meeting the standards:
- IEC/EN 60898-1,
- IEC 60947-2.
Technical data
-
Characteristicc
-
FunctionMCB
-
Rated voltage [V]230
-
Rated current [A]32
-
Level of securityIP20
-
Rated frequency [Hz]50/60
-
Number of poles3
-
Terminal capacityfrom 1 to 25
-
Type of voltageAC
-
PKWIU27.12.22.0
Other technical data
-
Built-in depth68 mm
-
Number of poles (total)3
-
Rated current32 A
-
Rated impulse withstand voltage Uimp4 kV
-
Voltage typeOther
-
Frequency50 ... 60 Hz
-
Over voltage category3
-
Additional equipment possibleYes
-
Degree of protection (IP)IP20
-
Connectable conductor cross section multi-wired1 ... 25 mm²
-
Release characteristicC
-
Number of protected poles3
-
Rated insulation voltage Ui500 V
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
-
Current limiting class3
-
Pollution degree3
-
Width in number of modular spacings3
-
Ambient temperature during operating-25 ... 55 °C
-
Connectable conductor cross section solid-core1 ... 25 mm²
Bulk packaging
| A kind of package | Pudełko | Pudełko |
| Quantity | 4 pcs. | 36 pcs. |
| Weight (kg) | 1,425 | - |
| Volume (m3) | 0,002 | - |
| Width (m) | 0,092 | - |
| Length (m) | 0,220 | - |
| Depth (m) | 0,078 | - |
