OA1 Manual Emergency Button OA1-W01-A\01-230

local index:
AKS222SPAM
Catalog No:
OA1-W01-A\01-230
EAN code:
5907723142985
Manufacturer: SPAMEL
Rated insulation voltage [V]: 500
Continuous rated current [A]: 10
The degree of protection of the device: IP65
Price:
27,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

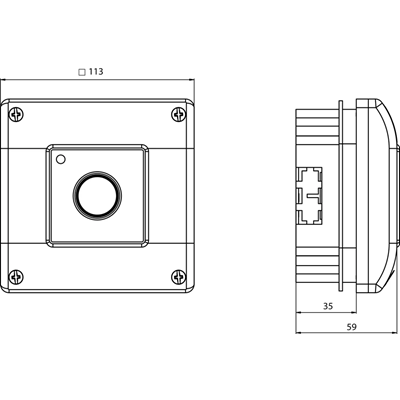

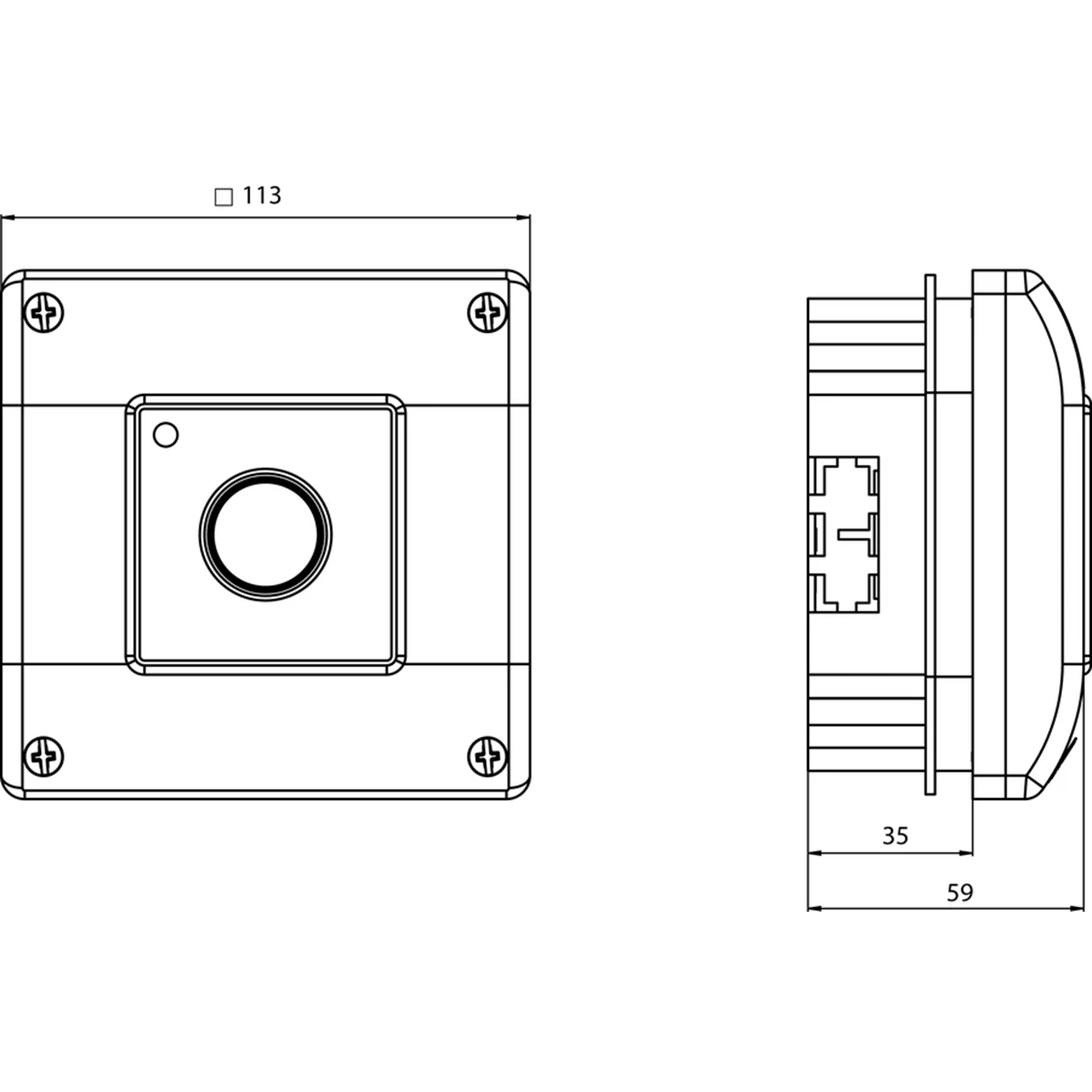

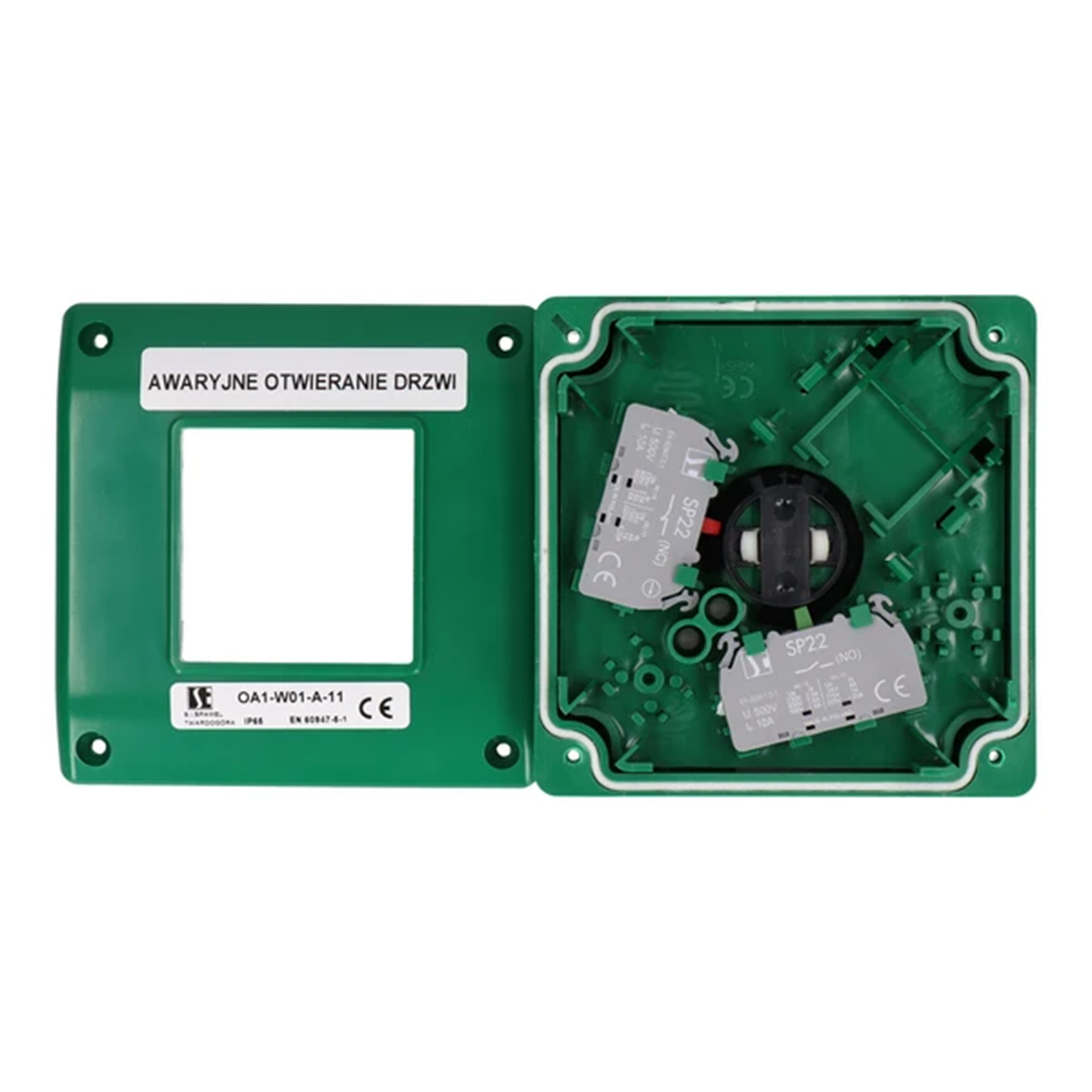

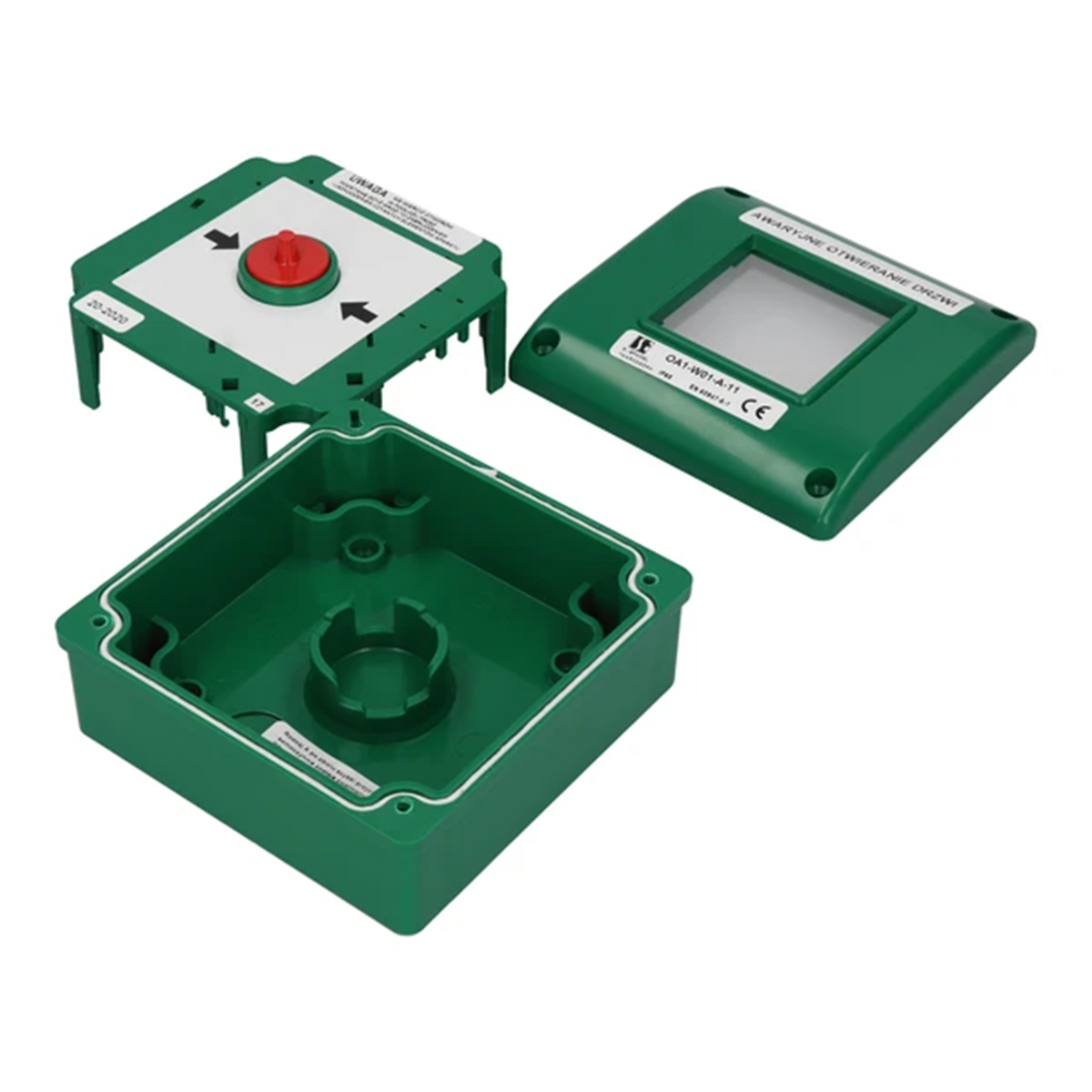

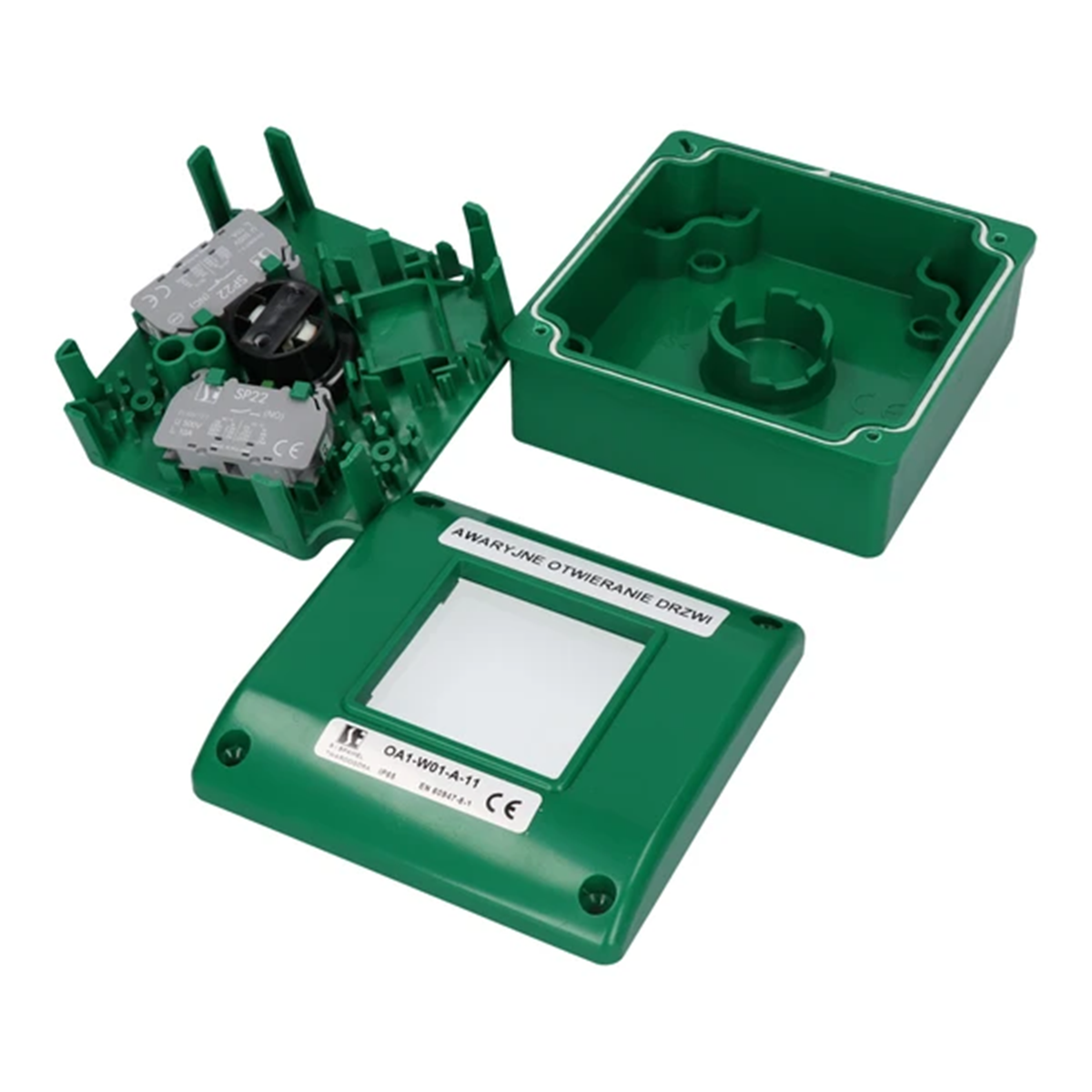

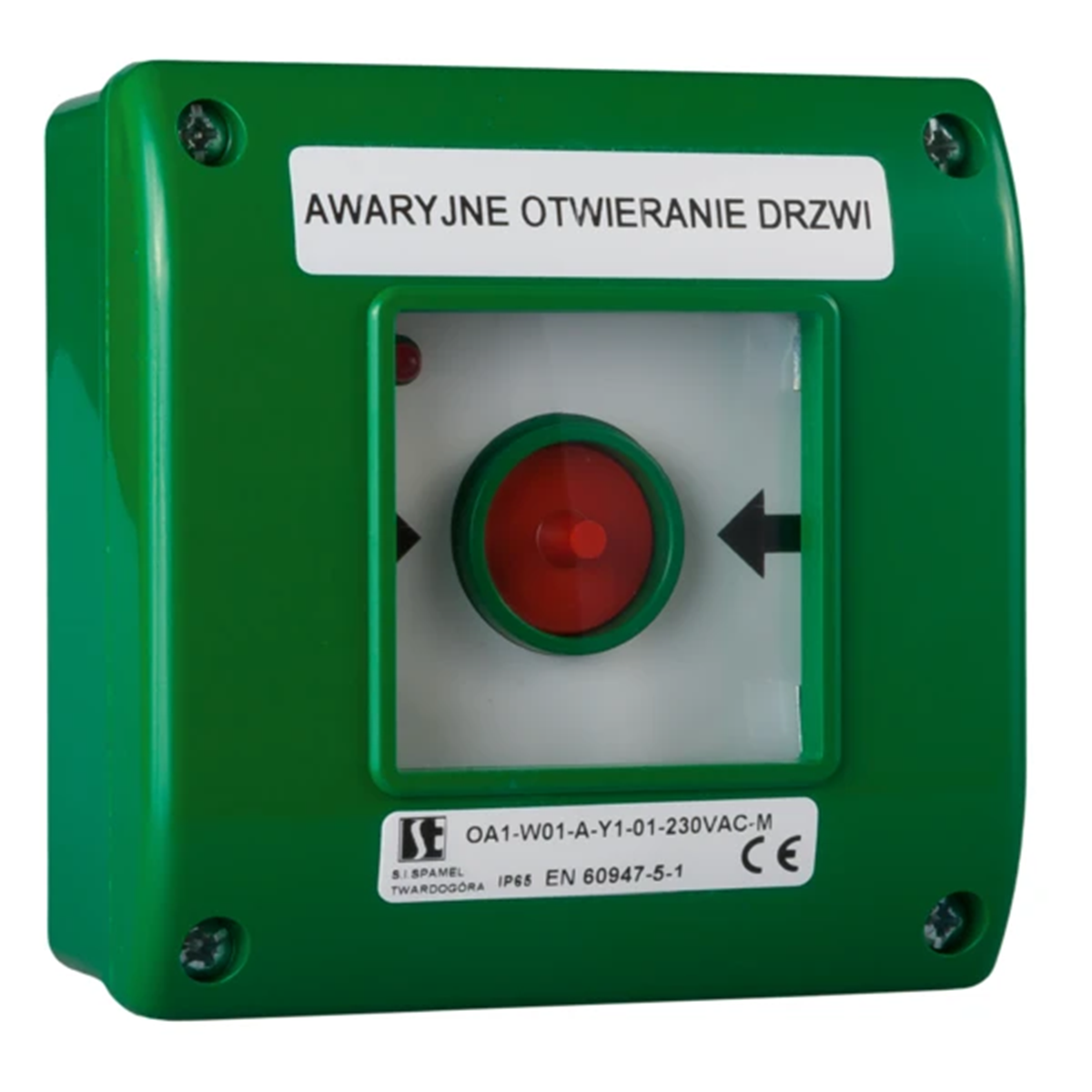

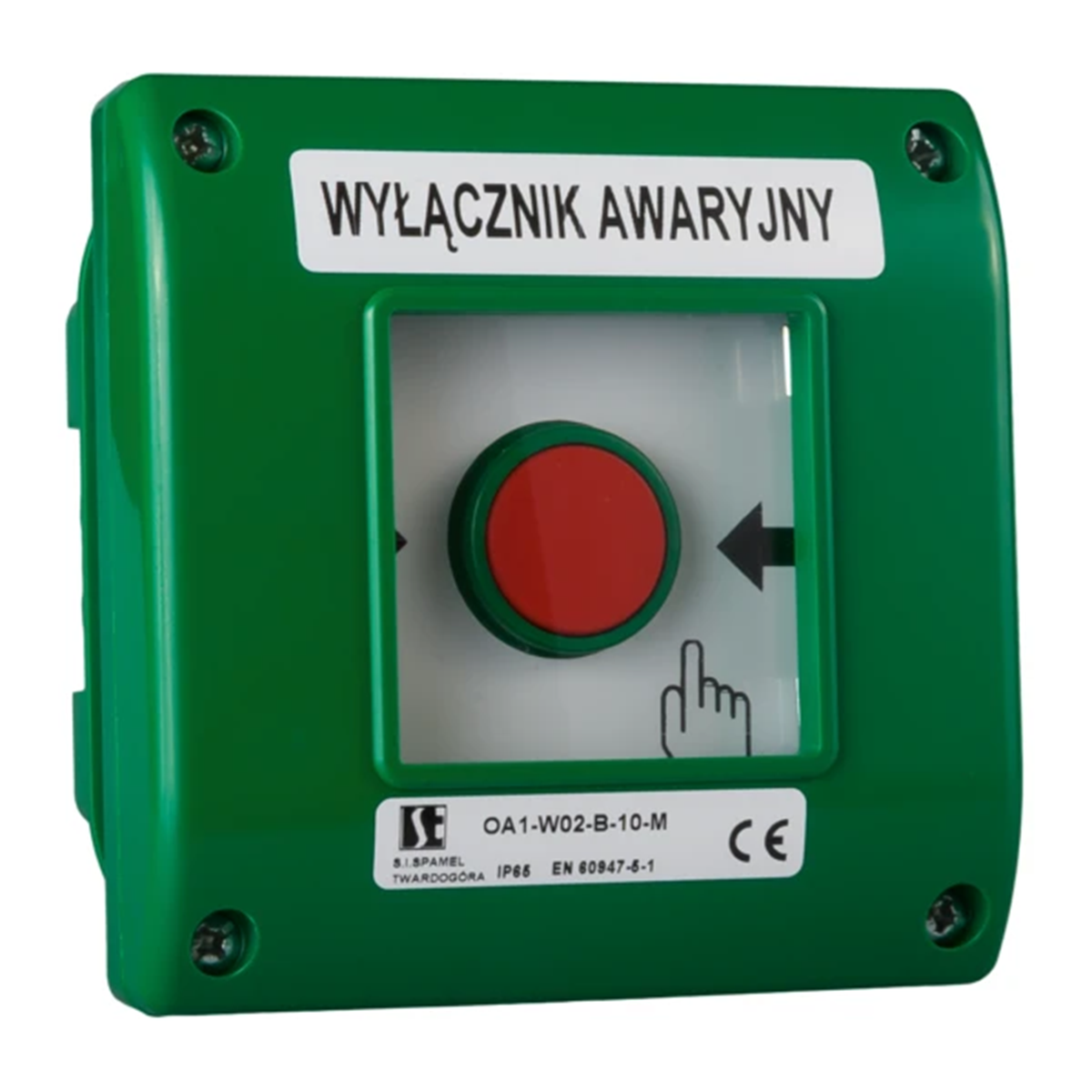

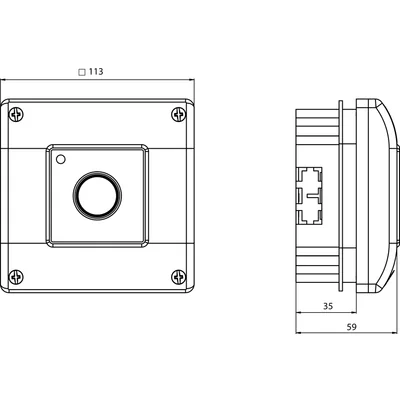

The OA1 manual button is intended for use in places where emergency manual control is required. An example of application can be evacuation passages, which in an emergency must be opened in an emergency by breaking the glass. OA1 can also be used in areas where in case of danger it is required to disconnect the power supply by permanently damaging a fragile element. The OA1 is offered in two versions, type A and type B. Type A in an emergency situation only requires breaking the glass, which will release the button. For type B, after breaking the glass, press the button with automatic return. OA1, due to the mounting method, is available in a surface-mounted and flush-mounted housing. Up to three switches SP22-10 (NO) or SP22-01 (NC) can be installed in each enclosure. The activation and sending of the signal takes place by breaking the glass (type A) or after breaking the glass and pressing the button with automatic return (type B). The alarm status is canceled by replacing the fragile element (glass - order symbol PPOŻ-5701). Labels with the inscription Emergency Door Opening and Emergency Switch are attached loosely to the product.

Technical data

  • Rated insulation voltage [V]
    500
  • The degree of protection of the device
    IP65
  • Continuous rated current [A]
    10

Other technical data

  • Type of messaging
    Door release (green)

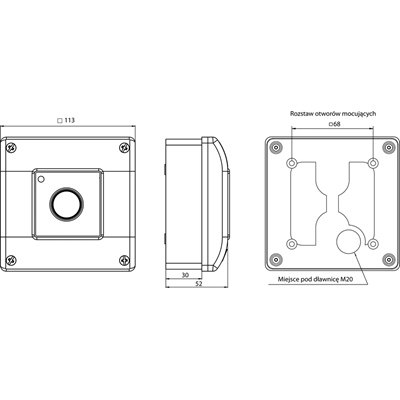

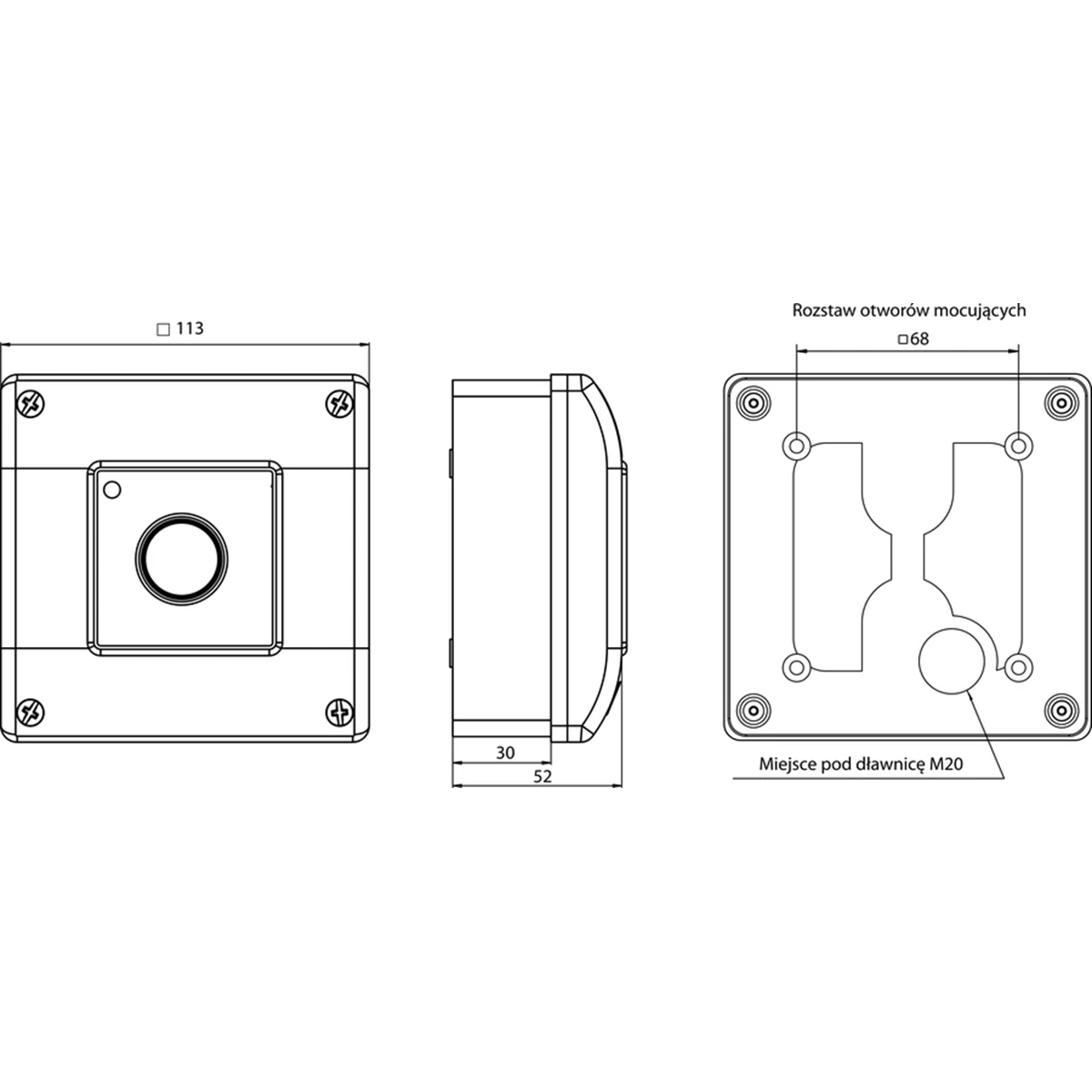

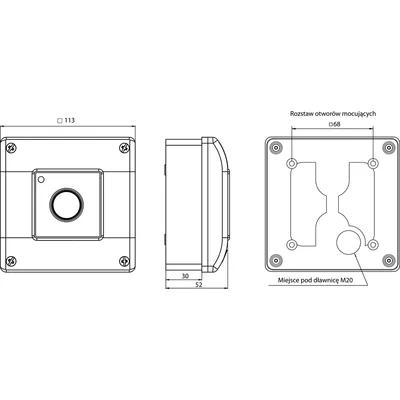

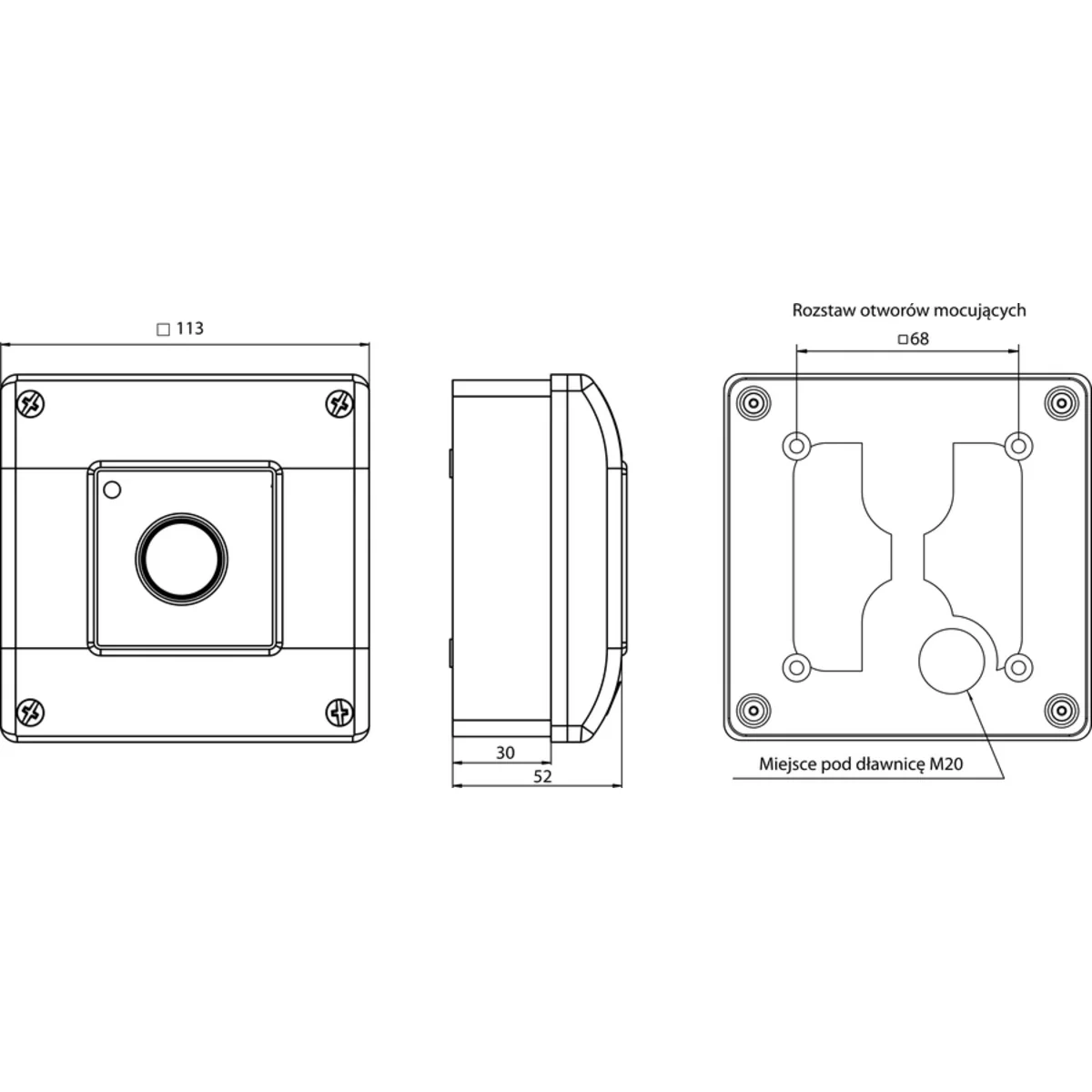

  • Width
    113 mm
  • Radio system
    No
  • With paper cover
    No
  • Material
    Plastic
  • Height
    113 mm
  • Depth
    52 mm
  • With glass disc
    Yes
  • Colour
    Other
  • Degree of protection (IP)
    IP65
