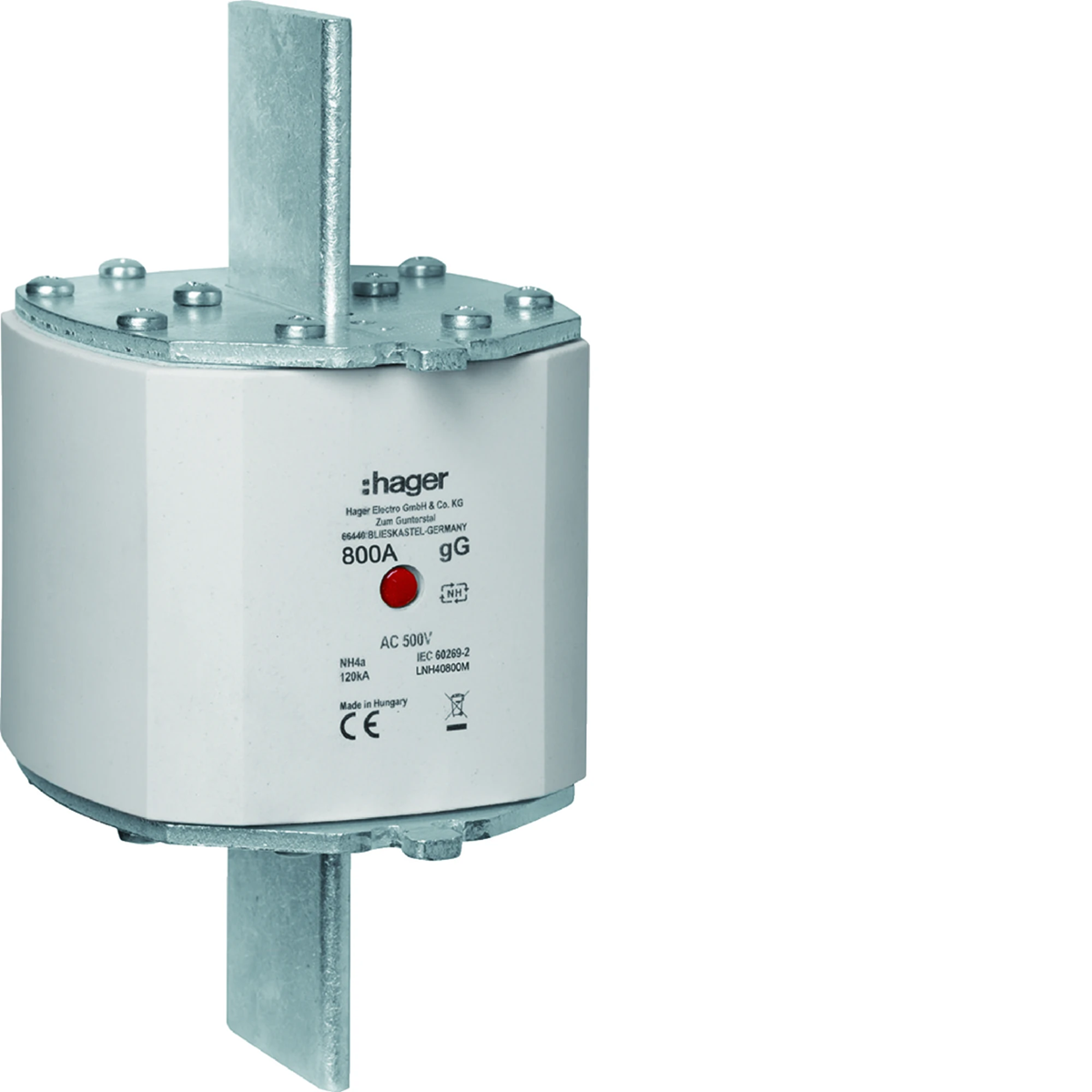

NH4a gG blade fuse link with center indicator 800A 500V LNH40800M
local index:
ABI569HAGE
Catalog No:
LNH40800M
EAN code:
3250614132919
Price:
190,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
800A blade fuse link:
- double indicator,
- non-insulated handle.
Technical data
-
CharacteristicgG
-
DC operating voltage [V]0/500/550
-
power loss [W]68
-
Fuse link sizeNH4a
-
Rated switching voltage [V]0/500/550
-
PKWIU27.12.21.0
-
Length [mm]119
-
Rated current [A]800
-
Width [mm]98
-
Height [mm]200
-
Rated short-circuit breaking capacity Icn [kA]120
Other technical data
-
Voltage typeAC
-
Rated switching capacity120 kA
-
Type of fuse status indicatorCentre fuse status indicator
-
Rated current800 A
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Insulated metal gripping lugs (IMGL)No
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 3 pcs. | 96 pcs. |
| Weight (kg) | 2,472 | 2,645 | 8,255 | 287,160 |
| Width (m) | 0,098 | 0,135 | 0,290 | 0,800 |
| Length (m) | 0,200 | 0,105 | 0,120 | 1,500 |
| Depth (m) | 0,119 | 0,220 | 0,400 | 1,200 |
