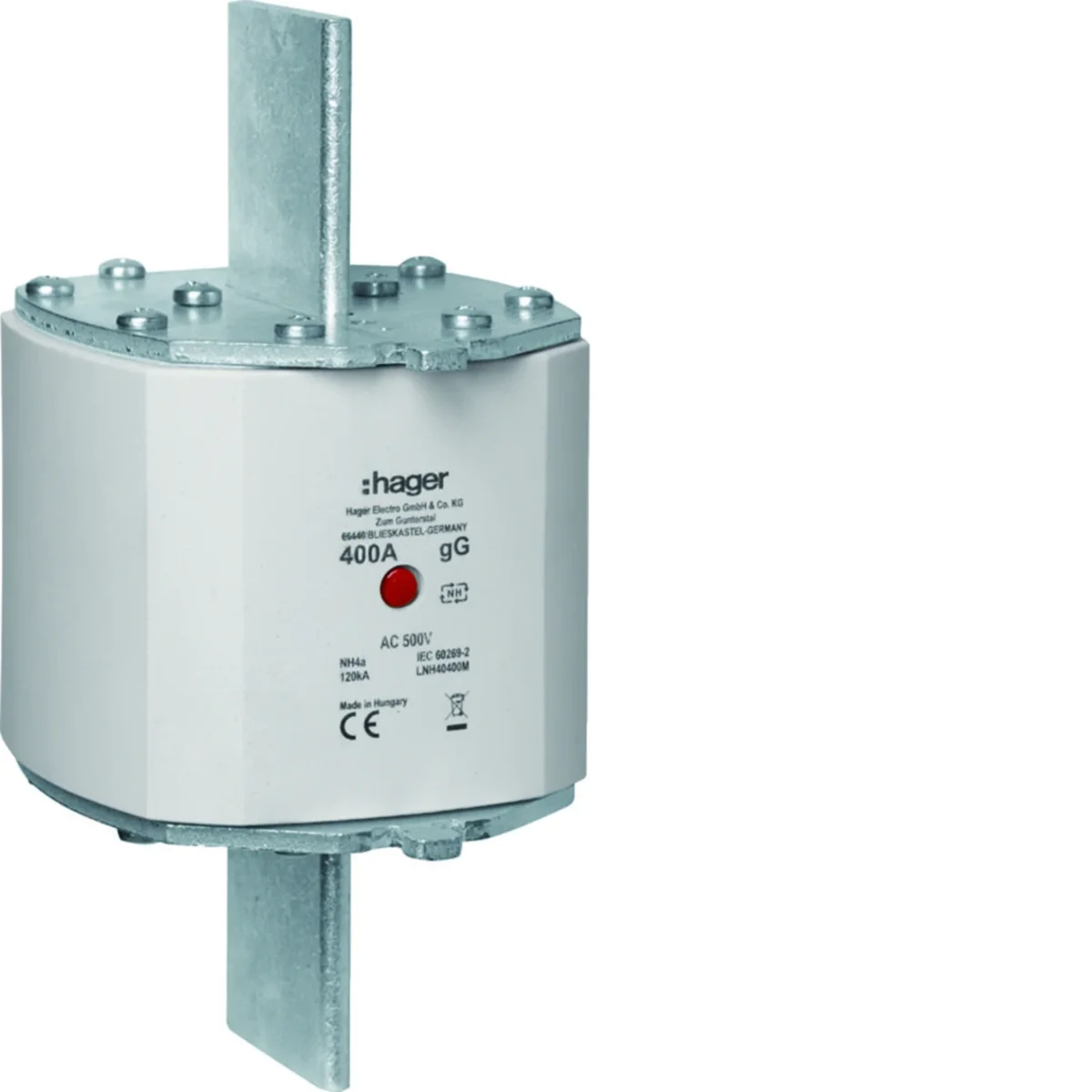

NH4a gG blade fuse link with center indicator 400A 500V LNH40400M

local index:
ABI566HAGE
Catalog No:
LNH40400M
EAN code:
3250614132889
Manufacturer: HAGER
Characteristic: gG
Length [mm]: 119
DC operating voltage [V]: 0/500/550
Price:
181,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

400A knife fuse link:

  • double indicator,
  • non-insulated handle.

Technical data

  • Characteristic
    gG
  • DC operating voltage [V]
    0/500/550
  • power loss [W]
    31
  • Fuse link size
    NH4a
  • Rated switching voltage [V]
    0/500/550
  • PKWIU
    27.12.21.0
  • Length [mm]
    119
  • Rated current [A]
    400
  • Width [mm]
    98
  • Height [mm]
    200
  • Rated short-circuit breaking capacity Icn [kA]
    120

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Centre fuse status indicator
  • Rated current
    400 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 3 pcs. 96 pcs.
Weight (kg) 2,472 2,600 7,869 914,760
Width (m) 0,098 0,130 0,290 0,800
Length (m) 0,200 0,105 0,145 1,500
Depth (m) 0,119 0,215 0,390 1,200
