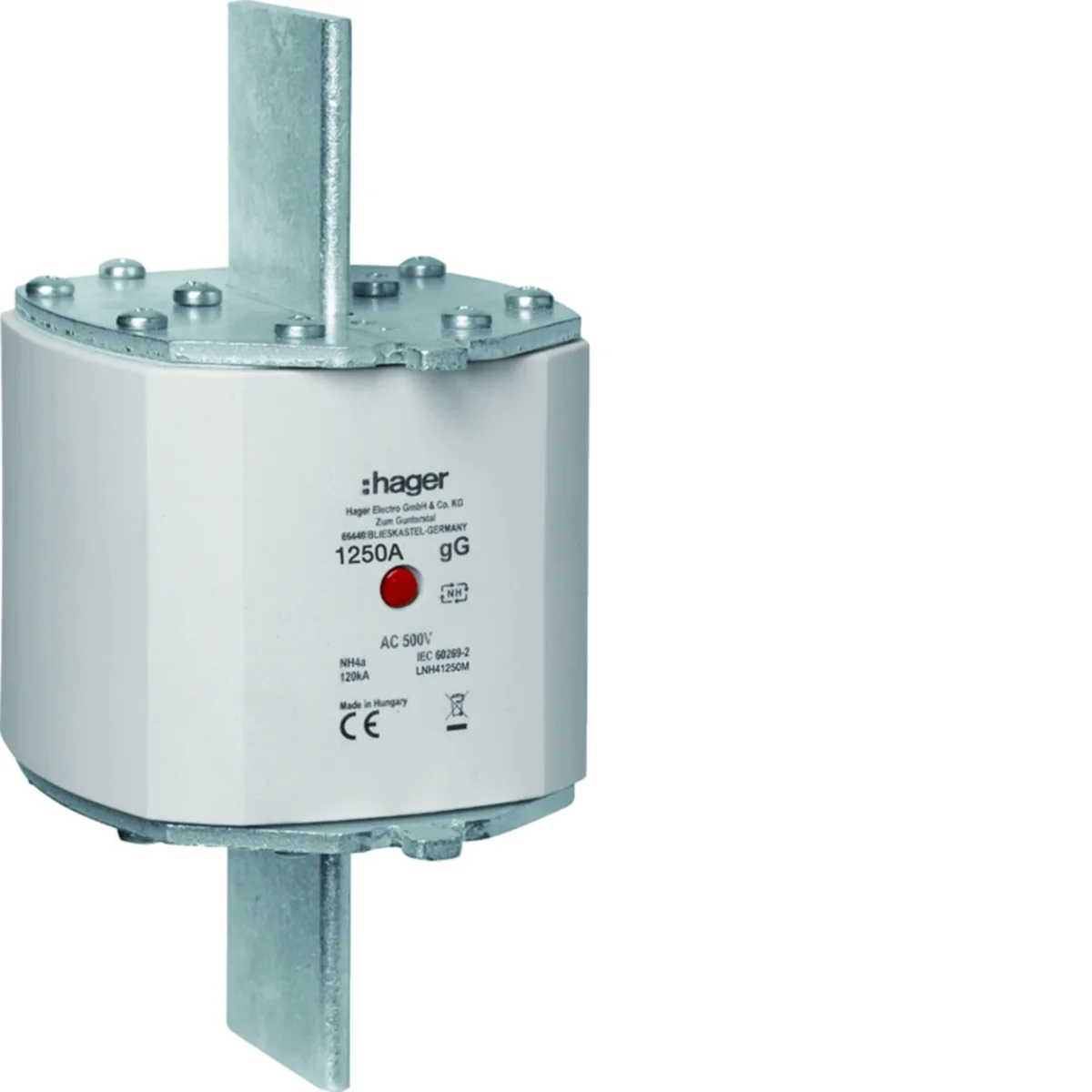

NH4a gG blade fuse link with center indicator 1250A 500V LNH41250M
local index:
ABI564HAGE
Catalog No:
LNH41250M
EAN code:
3250614132933
Price:
184,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
1250A knife fuse link:
- double indicator,
- non-insulated handle.
Technical data
-
CharacteristicgG
-
DC operating voltage [V]0/500/550
-
power loss [W]100.5
-
Fuse link sizeNH4a
-
Rated switching voltage [V]0/500/550
-
PKWIU27.12.21.0
-
Length [mm]119
-
Rated current [A]1250
-
Width [mm]98
-
Height [mm]200
-
Rated short-circuit breaking capacity Icn [kA]120
Other technical data
-
Voltage typeAC
-
Rated switching capacity120 kA
-
Type of fuse status indicatorCentre fuse status indicator
-
Rated current1250 A
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Insulated metal gripping lugs (IMGL)No
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 3 pcs. | 96 pcs. |
| Weight (kg) | 2,472 | 2,640 | 8,250 | 287,000 |
| Width (m) | 0,098 | 0,130 | 0,290 | 0,800 |
| Length (m) | 0,200 | 0,110 | 0,120 | 1,500 |
| Depth (m) | 0,119 | 0,215 | 0,395 | 1,200 |
