NH3C gG insert with central indicator insulated handle 315A 500V LNH3315MK

Name: NH3C gG insert with central indicator insulated handle 315A 500V
Brand: HAGER
SKU: ABI543HAGE
Price: 195.07 PLN
Availability: BackOrder

local index:

ABI543HAGE

Catalog number:

LNH3315MK

EAN code:

3250614122910

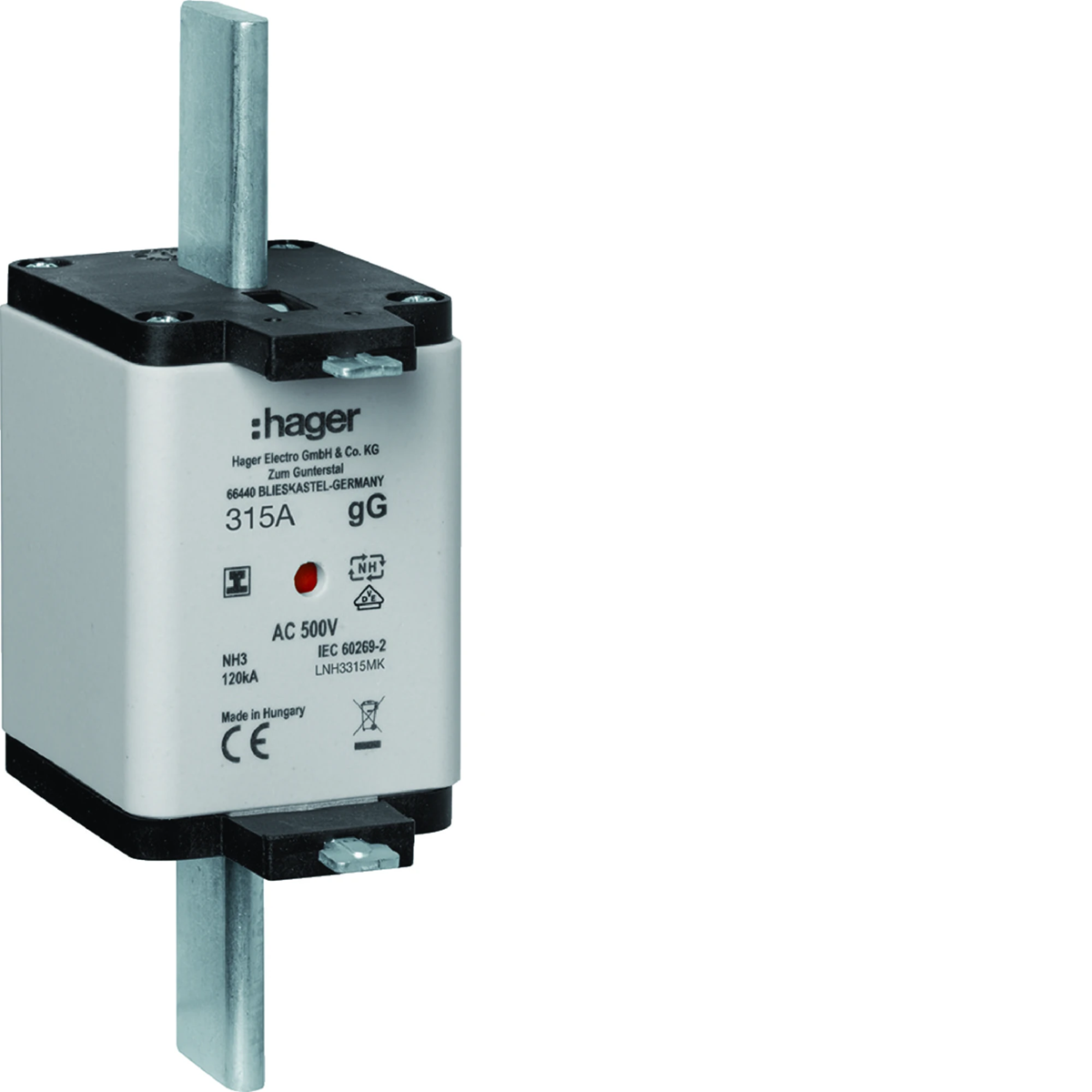

NH3C gG insert with central indicator insulated handle 315A 500V

Click on the photo to enlarge

Manufacturer: HAGER

Characteristic: gG

Length [mm]: 80

DC operating voltage [V]: 0/500/550

See full description

Price:

195,07 zł

gross / pcs.

(including VAT 23%)

up to 10 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

35A blade fuse link:

double indicator,
insulated handle,
fuse characteristics: gG.

Technical data

Characteristic

gG
DC operating voltage [V]

0/500/550
power loss [W]

25
Fuse link size

NH3C
Rated switching voltage [V]

0/500/550
PKWIU

27.12.21.0

Length [mm]

80
Rated current [A]

315
Width [mm]

66
Height [mm]

150
Rated short-circuit breaking capacity Icn [kA]

120

Other technical data

Voltage type

AC
Rated switching capacity

120 kA
Type of fuse status indicator

Combination fuse status indicator

Rated current

315 A
Utilization category

gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
Insulated metal gripping lugs (IMGL)

Yes

Manufacturer details

Manufacturer

Hager Electro GmbH & Co KG
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	1 pcs.	12 pcs.	384 pcs.	1 pcs.	12 pcs.	384 pcs.
Weight (kg)	0,653	8,225	288,200	0,653	8,225	288,200
Width (m)	0,090	0,280	0,800	0,090	0,280	0,800
Length (m)	0,050	0,150	1,500	0,050	0,150	1,500
Depth (m)	0,160	0,390	1,200	0,160	0,390	1,200
