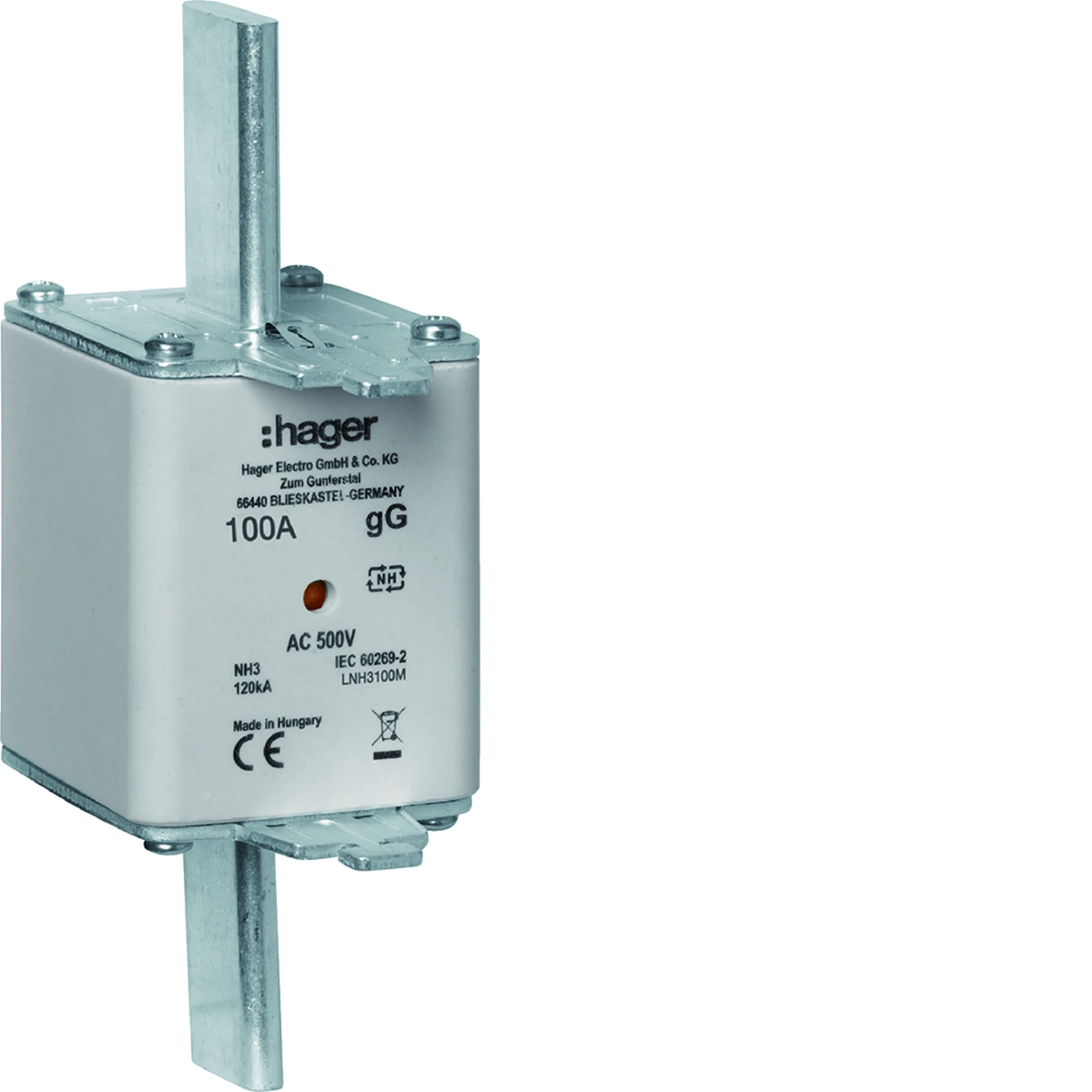

NH3C gG blade fuse link with center indicator 100A 500V LNH3100M
local index:
ABI549HAGE
Catalog No:
LNH3100M
EAN code:
3250614121067
Price:
19,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
100A blade fuse link:
- double indicator,
- non-insulated handle,
- fuse characteristics: gG,
- trigger characteristics: gG.
Technical data
-
CharacteristicgG
-
DC operating voltage [V]0/500/550
-
power loss [W]10.7
-
Fuse link sizeNH3C
-
Rated switching voltage [V]0/500/550
-
PKWIU27.12.21.0
-
Length [mm]80
-
Rated current [A]100
-
Width [mm]66
-
Height [mm]150
-
Rated short-circuit breaking capacity Icn [kA]120
Other technical data
-
Voltage typeAC
-
Rated switching capacity120 kA
-
Type of fuse status indicatorCombination fuse status indicator
-
Rated current100 A
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Insulated metal gripping lugs (IMGL)No
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
Tax identification number6460015532
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 1 pcs. | 12 pcs. | 384 pcs. | 1 pcs. | 12 pcs. | 384 pcs. |
| Weight (kg) | 0,625 | 7,880 | 275,160 | 0,625 | 7,880 | 275,160 |
| Width (m) | 0,090 | 0,310 | 0,800 | 0,090 | 0,310 | 0,800 |
| Length (m) | 0,060 | 0,215 | 1,500 | 0,060 | 0,215 | 1,500 |
| Depth (m) | 0,160 | 0,360 | 1,200 | 0,160 | 0,360 | 1,200 |
