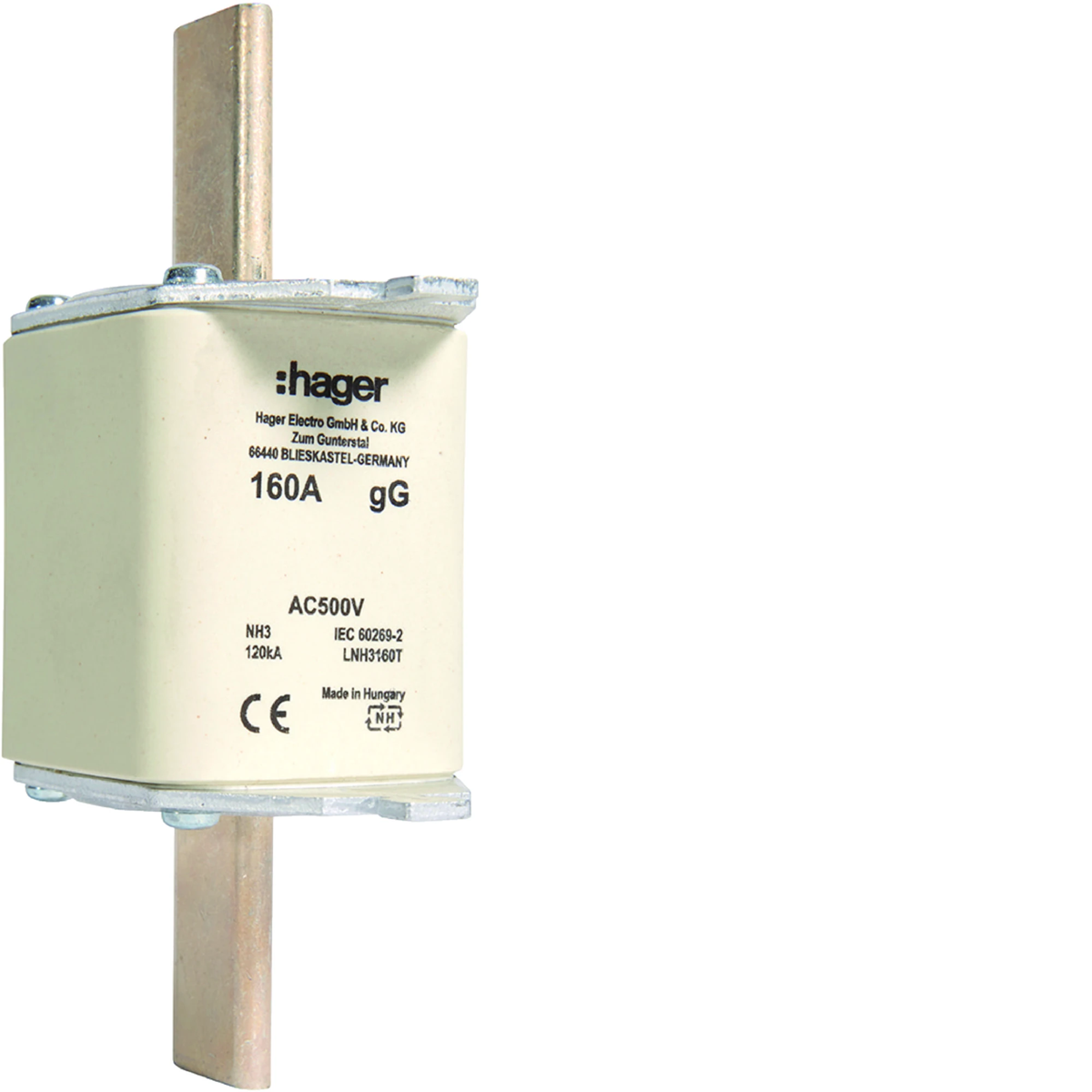

NH3C 160A AC 500V gG blade fuse link LNH3160T

local index:
ABI418HAGE
Catalog No:
LNH3160T
EAN code:
3250614132728
Manufacturer: HAGER
Characteristic: gG
Length [mm]: 80
DC operating voltage [V]: 0/500/550
Price:
20,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Individual inquiry
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

160A blade fuse link:

  • single indicator,
  • non-insulated handle,
  • fuse characteristics: gG.

Technical data

  • Characteristic
    gG
  • DC operating voltage [V]
    0/500/550
  • power loss [W]
    12.1
  • Fuse link size
    NH3C
  • Rated switching voltage [V]
    0/500/550
  • PKWIU
    27.12.21.0
  • Length [mm]
    80
  • Rated current [A]
    160
  • Width [mm]
    66
  • Height [mm]
    150
  • Rated short-circuit breaking capacity Icn [kA]
    120

Other technical data

  • Construction size
    NH3C
  • Rated voltage
    500 V
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Top fuse status indicator
  • Rated current
    160 A
  • Voltage type
    AC
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 24 pcs. 576 pcs.
Weight (kg) 0,550 1,720 14,100 368,640
Width (m) 0,066 0,155 0,330 0,800
Length (m) 0,150 0,090 0,175 1,150
Depth (m) 0,080 0,160 0,370 1,200
