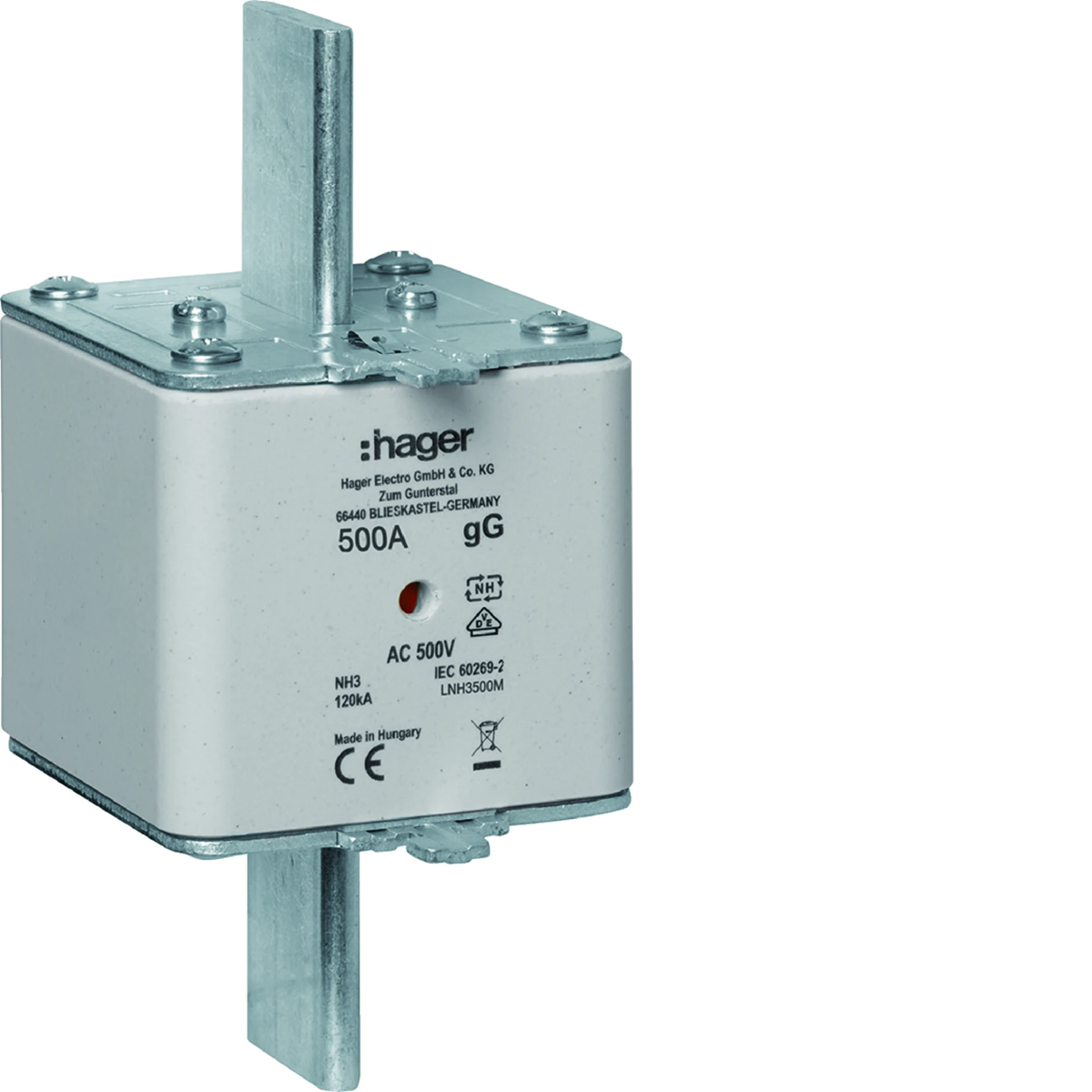

NH3 gG blade fuse link with center indicator 500A 500V LNH3500M
local index:
ABI541HAGE
Catalog No:
LNH3500M
EAN code:
3250614121166
Price:
25,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
500A blade fuse link:
- double indicator,
- non-insulated handle,
- fuse characteristics: gG.
Technical data
-
CharacteristicgG
-
Depth [mm]150
-
Rated current [A]500
-
Width [mm]66
-
Height [mm]86
-
Rated short-circuit breaking capacity Icn [kA]120
-
Length [mm]80
-
DC operating voltage [V]0/500/550
-
power loss [W]43
-
Fuse link sizeNH3
-
Rated switching voltage [V]0/500/550
-
PKWIU27.12.21.0
Other technical data
-
Voltage typeAC
-
Rated switching capacity120 kA
-
Type of fuse status indicatorCombination fuse status indicator
-
Rated current500 A
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Insulated metal gripping lugs (IMGL)No
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 7 pcs. | 224 pcs. |
| Weight (kg) | 0,964 | 1,000 | 7,400 | 238,933 |
| Width (m) | 0,070 | 0,157 | 0,300 | 0,800 |
| Length (m) | 0,086 | 0,075 | 0,150 | 0,750 |
| Depth (m) | 0,150 | 0,095 | 0,400 | 1,200 |
