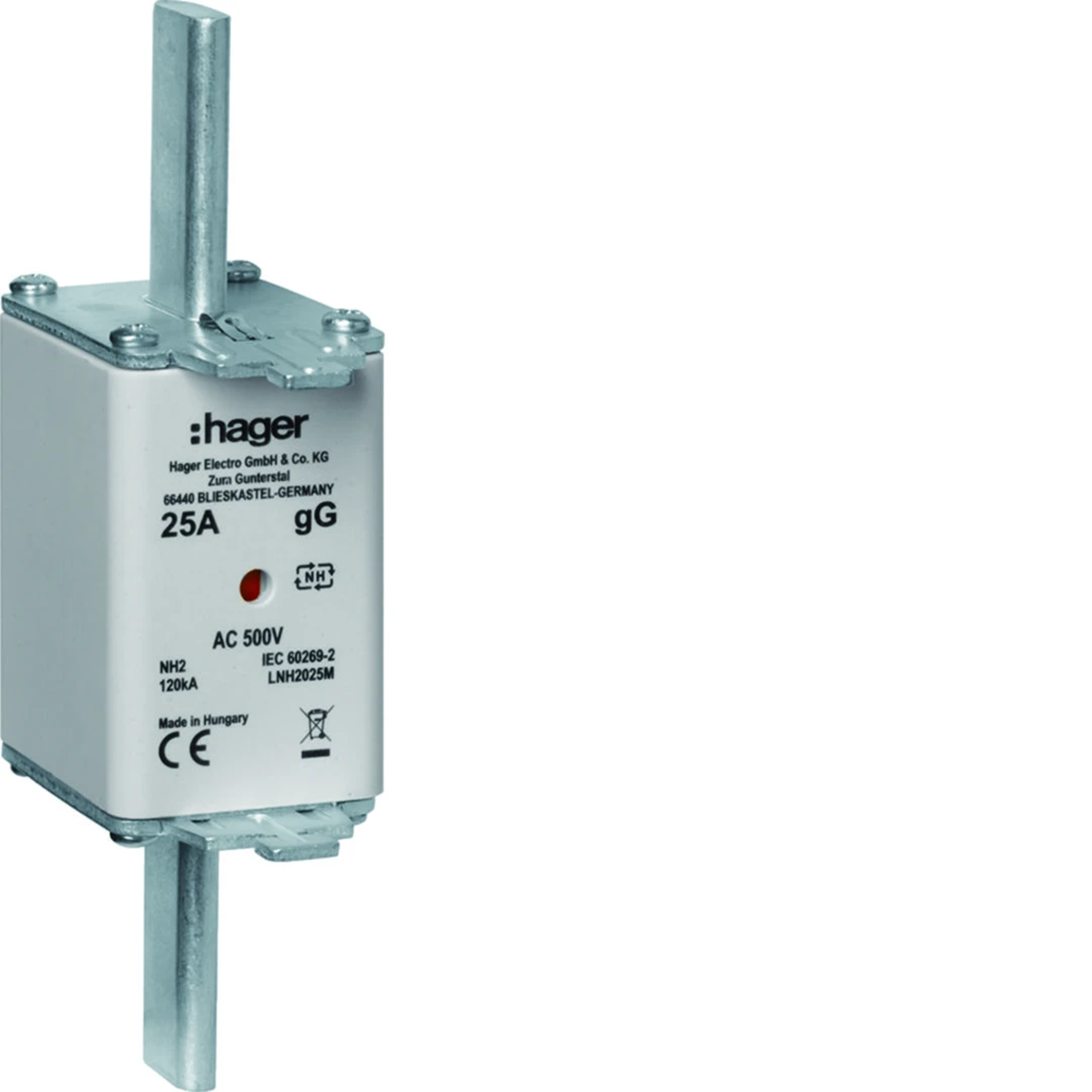

NH2C gG blade fuse link with center indicator 25A 500V LNH2025M
local index:
ABI520HAGE
Catalog No:
LNH2025M
EAN code:
3250614120893
Price:
11,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description
25A blade fuse link:
- double indicator,
- non-insulated handle,
- fuse characteristics: gG,
- trigger characteristics: gG.
Technical data
-
CharacteristicgG
-
DC operating voltage [V]0/500/550
-
power loss [W]2.4
-
Fuse link sizeNH2C
-
Rated switching voltage [V]0/500/550
-
PKWIU27.12.21.0
-
Length [mm]62
-
Rated current [A]25
-
Width [mm]49
-
Height [mm]135
-
Rated short-circuit breaking capacity Icn [kA]120
Other technical data
-
Voltage typeAC
-
Rated switching capacity120 kA
-
Type of fuse status indicatorCombination fuse status indicator
-
Rated current25 A
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Insulated metal gripping lugs (IMGL)No
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 3 pcs. | 18 pcs. | 576 pcs. | 3 pcs. | 18 pcs. | 576 pcs. |
| Weight (kg) | 1,260 | 7,560 | 241,920 | 1,260 | 7,560 | 241,920 |
| Width (m) | 0,150 | 0,290 | 0,800 | 0,150 | 0,290 | 0,800 |
| Length (m) | 0,070 | 0,140 | 1,500 | 0,070 | 0,140 | 1,500 |
| Depth (m) | 0,160 | 0,390 | 1,200 | 0,160 | 0,390 | 1,200 |
