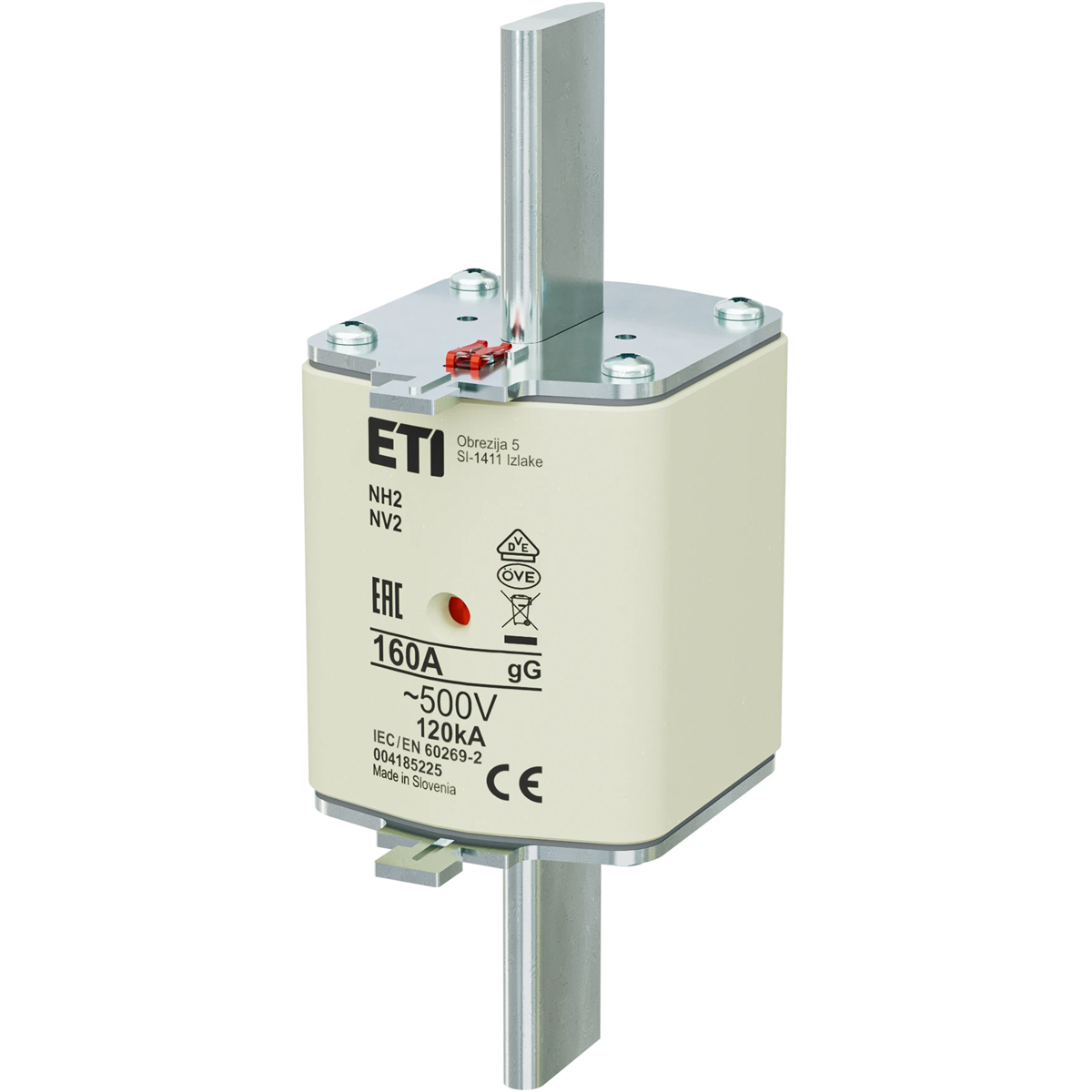

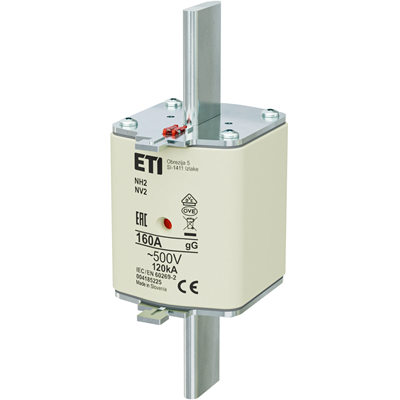

Name: NH2 gG 160A/500V industrial slow-blow fuse link
Brand: ETI POLAM
SKU: ABM210ETIP
Price: 14.82 PLN
Availability: InStock

NH2 gG 160A/500V fuse link - is a new series of fuse links with a double activation indicator.

The combination of both activation indicators means that both the front the indicator and the indicator located on the top cover will work simultaneously when the fuse-link burns out.

Very good visibility of the operating status of the fuse-link is ensured, both in the bases and fuse disconnectors.

< p>Use of inserts:

protection of power installations against the effects of short circuits and overloads,

Characteristic

gG
Type

NH
AC rated voltage [V]

500

Rated current [A]

160
Size

NH2
PKWIU

27.12.21.0

Other technical data

Voltage type

AC
Rated switching capacity

120 kA
Type of fuse status indicator

Combination fuse status indicator

Rated current

160 A
Utilization category

gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)

A kind of package	Pudełko	Pudełko
Quantity	3 pcs.	15 pcs.
Weight (kg)	-	8,500
Volume (m3)	-	0,017
Width (m)	0,166	0,295
Length (m)	0,150	0,235
Depth (m)	0,074	0,245
