NH2 400 A Disconnector box for powering 60mm busbar bridge, 3 poles LT254E
local index:
ABM034HAGE
Catalog No:
LT254E
EAN code:
3250614201103
Click on the photo to enlarge
Manufacturer:
HAGER
Rated frequency [Hz]:
60
Energy lost in cables [W]:
122
Number of poles:
3
See full description
Price:
382,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description

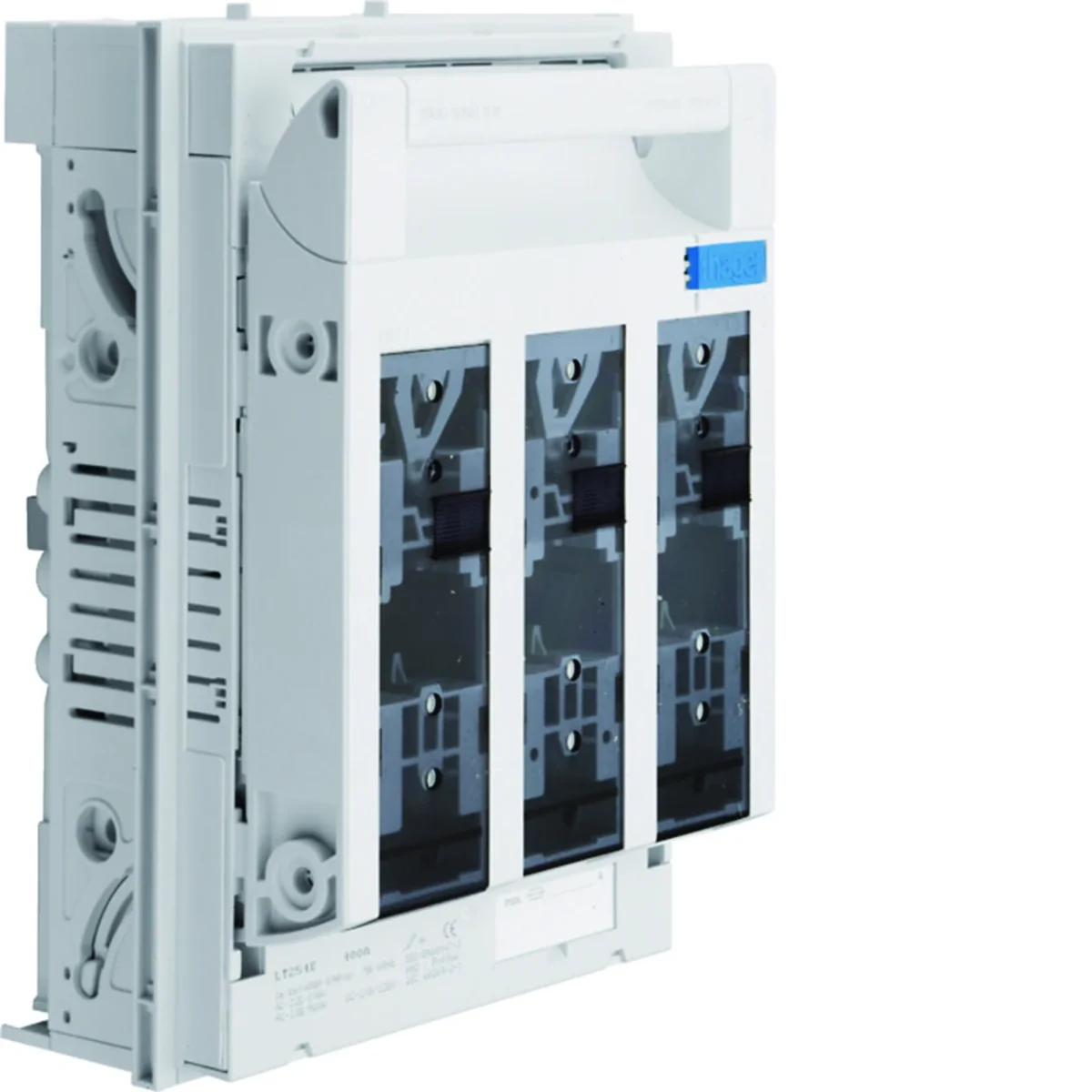

NH2 400 A Disconnector box for powering 60mm busbar bridge, 3 poles
Technical data
Rated frequency [Hz]
60
Number of poles
3
Rated current [A]
400
Fuse link size
NH2
Mechanical durability (number of cycles)
800
The distance between the rails
40mm
Rated surge voltage [V]
8000
Conductor cross-section (wire) [mm²]
70 - 300
Energy lost in cables [W]
122
Tightening torque [Nm]
8
power loss [W]
37
Electrical endurance (number of cycles)
200
Operating temperature range [°C]
from -20 to 60
storage temperature [°C]
from -20 to 60
Wire cross-section (cord) [mm²]
70 - 300
PKWIU
27.33.11.0
Other technical data
Wyposażenie obudowy
Z rozłącznikiem bezpiecznikowym
Rated operation current Ie
400 A
Rated insulation voltage Ui
1000 V
With error protection
No
Degree of protection (IP)
IP3X
Number of poles
3
Max. rated operation voltage Ue AC
690 V
Construction size fuse inserts
NH2
Height of housing
306 mm
Degree of protection (NEMA)
1
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
60 pcs.
Weight (kg)
3,346
3,540
201,720
Width (m)
0,210
0,240
0,800
Length (m)
0,308
0,160
1,270
Depth (m)
0,151
0,330
1,200
