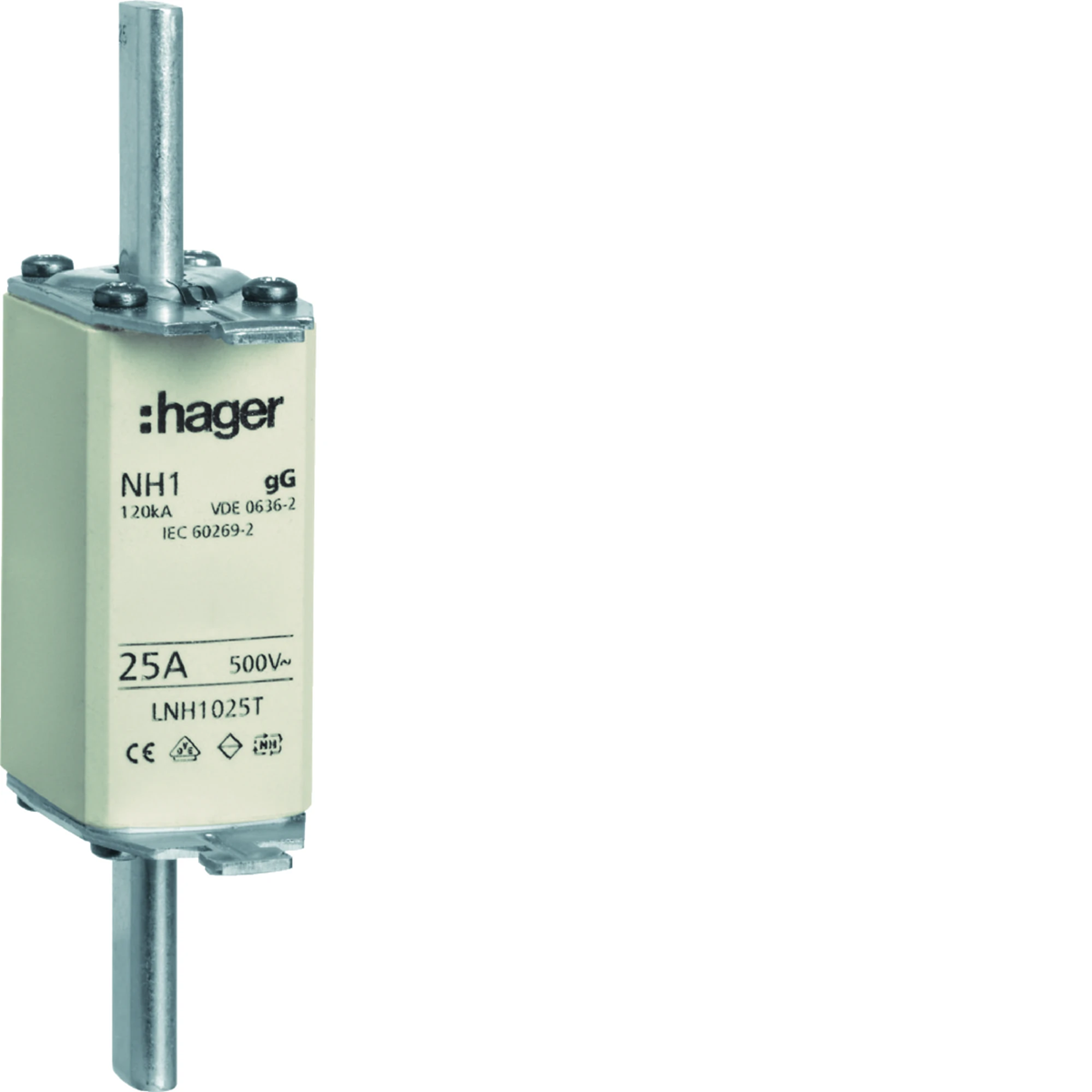

NH1C 25A AC 500V gG blade fuse link LNH1025T
local index:
ABI318HAGE
Catalog No:
LNH1025T
EAN code:
3250614132391
Price:
5,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Knife fuse link:
- single indicator,
- non-insulated handle,
- fuse characteristics: gG,< /li>
- trigger characteristics: gG.
Technical data
-
CharacteristicgG
-
DC operating voltage [V]0/500/550
-
power loss [W]2.7
-
Fuse link sizeNH1C
-
Rated switching voltage [V]0/500/550
-
PKWIU27.12.21.0
-
Length [mm]thirty
-
Rated current [A]25
-
Width [mm]135
-
Height [mm]55
-
Rated short-circuit breaking capacity Icn [kA]120
Other technical data
-
Construction sizeNH1C
-
Rated voltage500 V
-
Rated switching capacity120 kA
-
Type of fuse status indicatorTop fuse status indicator
-
Rated current25 A
-
Voltage typeAC
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Insulated metal gripping lugs (IMGL)No
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 3 pcs. | 60 pcs. | 1440 pcs. |
| Weight (kg) | 0,230 | 0,700 | 14,350 | 362,880 |
| Width (m) | 0,135 | 0,095 | 0,290 | 0,800 |
| Length (m) | 0,055 | 0,062 | 0,220 | 1,170 |
| Depth (m) | 0,030 | 0,140 | 0,325 | 1,200 |
