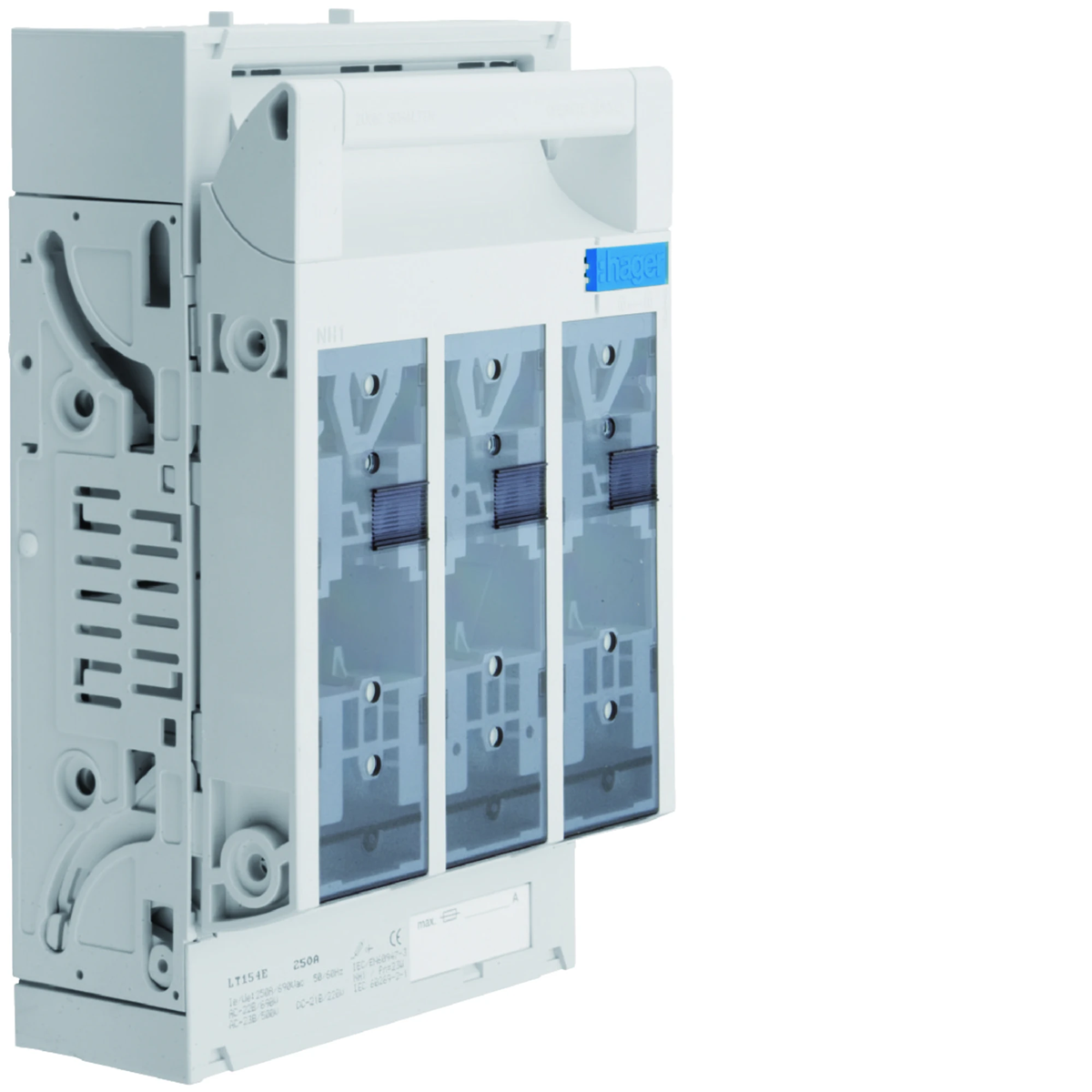

NH1 250 A Disconnector box for powering busbar bridge 60mm 3 poles LT154E

local index:
ABM033HAGE
Catalog No:
LT154E
EAN code:
3250614201097
Manufacturer: HAGER
Rated frequency [Hz]: 60
Energy lost in cables [W]: 85
Number of poles: 3
Price:
334,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

NH1 250 A Disconnector box for powering busbar bridge 60mm 3 poles

Technical data

  • Rated frequency [Hz]
    60
  • Number of poles
    3
  • Rated current [A]
    250
  • Fuse link size
    NH1
  • Mechanical durability (number of cycles)
    1400
  • The distance between the rails
    60mm
  • Busbar height [mm]
    5/10
  • Wire cross-section (cord) [mm²]
    6 - 150
  • PKWIU
    27.33.11.0
  • Energy lost in cables [W]
    85
  • Tightening torque [Nm]
    8
  • power loss [W]
    20
  • Electrical endurance (number of cycles)
    200
  • Operating temperature range [°C]
    from -20 to 60
  • storage temperature [°C]
    from -20 to 60
  • Rated surge voltage [V]
    8000
  • Conductor cross-section (wire) [mm²]
    6 - 150

Other technical data

  • Wyposażenie obudowy
    Z rozłącznikiem bezpiecznikowym
  • Rated operation current Ie
    250 A
  • Rated insulation voltage Ui
    1000 V
  • With error protection
    No
  • Degree of protection (IP)
    IP3X
  • Number of poles
    3
  • Max. rated operation voltage Ue AC
    690 V
  • Construction size fuse inserts
    NH1
  • Height of housing
    306 mm
  • Degree of protection (NEMA)
    1

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 60 pcs.
Weight (kg) 2,270 2,505 173,300
Width (m) 0,184 0,195 0,800
Length (m) 0,306 0,145 0,830
Depth (m) 0,131 0,340 1,200
