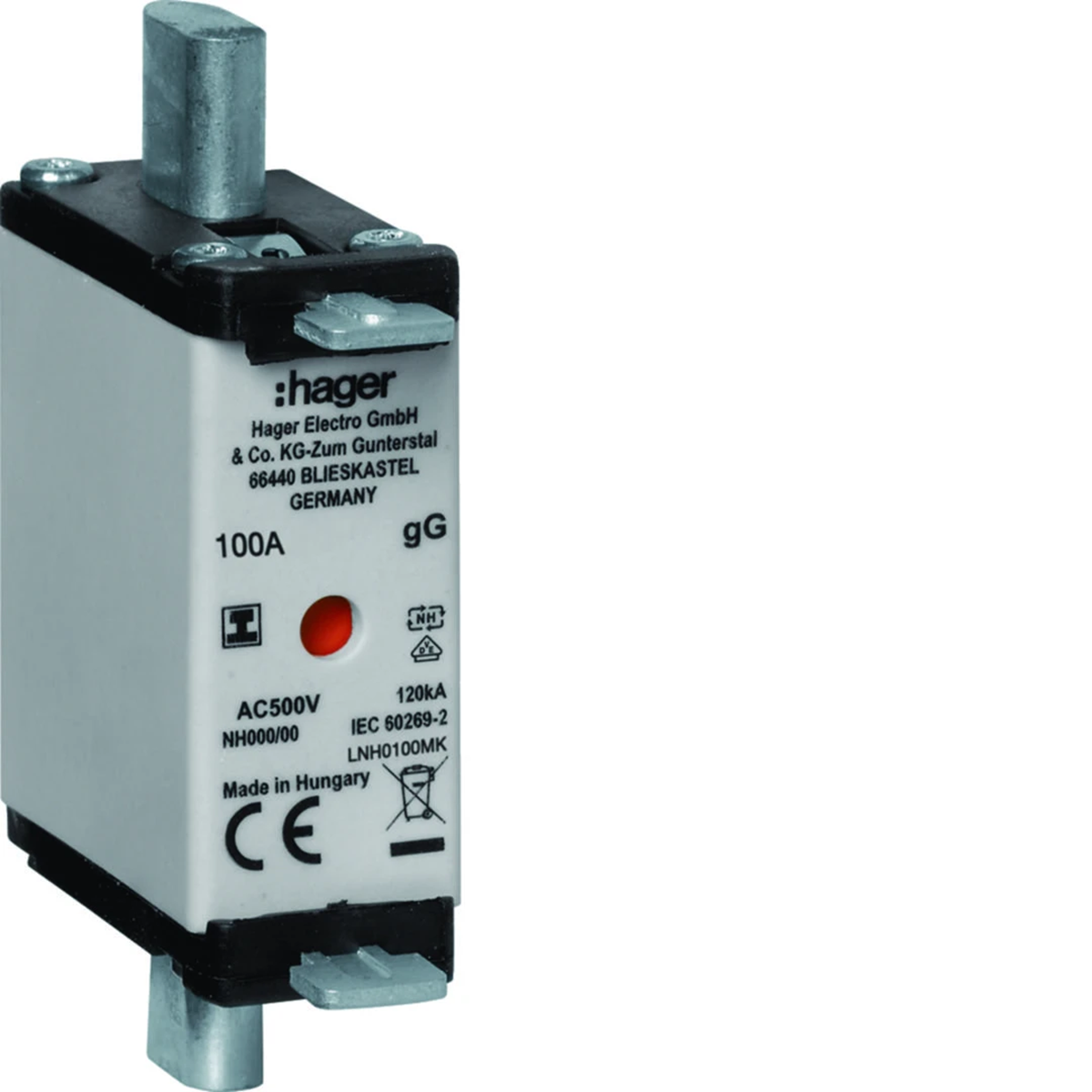

NH000 gG blade fuse link with center indicator insulated holder 100A 500V LNH0100MK
local index:
ABI481HAGE
Catalog No:
LNH0100MK
EAN code:
3250614122521
Price:
7,69 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Knife fuse insert:
- double indicator,
- insulated handle,
- fuse characteristics: gG,< /li>
- trigger characteristics: gG.
Technical data
-
CharacteristicgG
-
DC operating voltage [V]0/500/550
-
power loss [W]7.5
-
Fuse link sizeNH000
-
Rated switching voltage [V]0/500/550
-
PKWIU27.12.21.0
-
Length [mm]51
-
Rated current [A]100
-
Width [mm]21
-
Height [mm]79
-
Rated short-circuit breaking capacity Icn [kA]120
Other technical data
-
Voltage typeAC
-
Rated switching capacity120 kA
-
Type of fuse status indicatorCombination fuse status indicator
-
Rated current100 A
-
Utilization categorygL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
-
Insulated metal gripping lugs (IMGL)Yes
Manufacturer details
-
ManufacturerHager Electro GmbH & Co KG
-
AddressDE 66440 Blieskastel Zum Gunterstal Niemcy
-
E-mail
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | Karton | Pakiet | Paleta |
| Quantity | 3 pcs. | 108 pcs. | 3456 pcs. | 3 pcs. | 108 pcs. | 3456 pcs. |
| Weight (kg) | 0,350 | 12,740 | 407,800 | 0,350 | 12,740 | 407,800 |
| Width (m) | 0,060 | 0,280 | 0,800 | 0,060 | 0,280 | 0,800 |
| Length (m) | 0,070 | 0,150 | 1,500 | 0,070 | 0,150 | 1,500 |
| Depth (m) | 0,090 | 0,390 | 1,200 | 0,090 | 0,390 | 1,200 |
