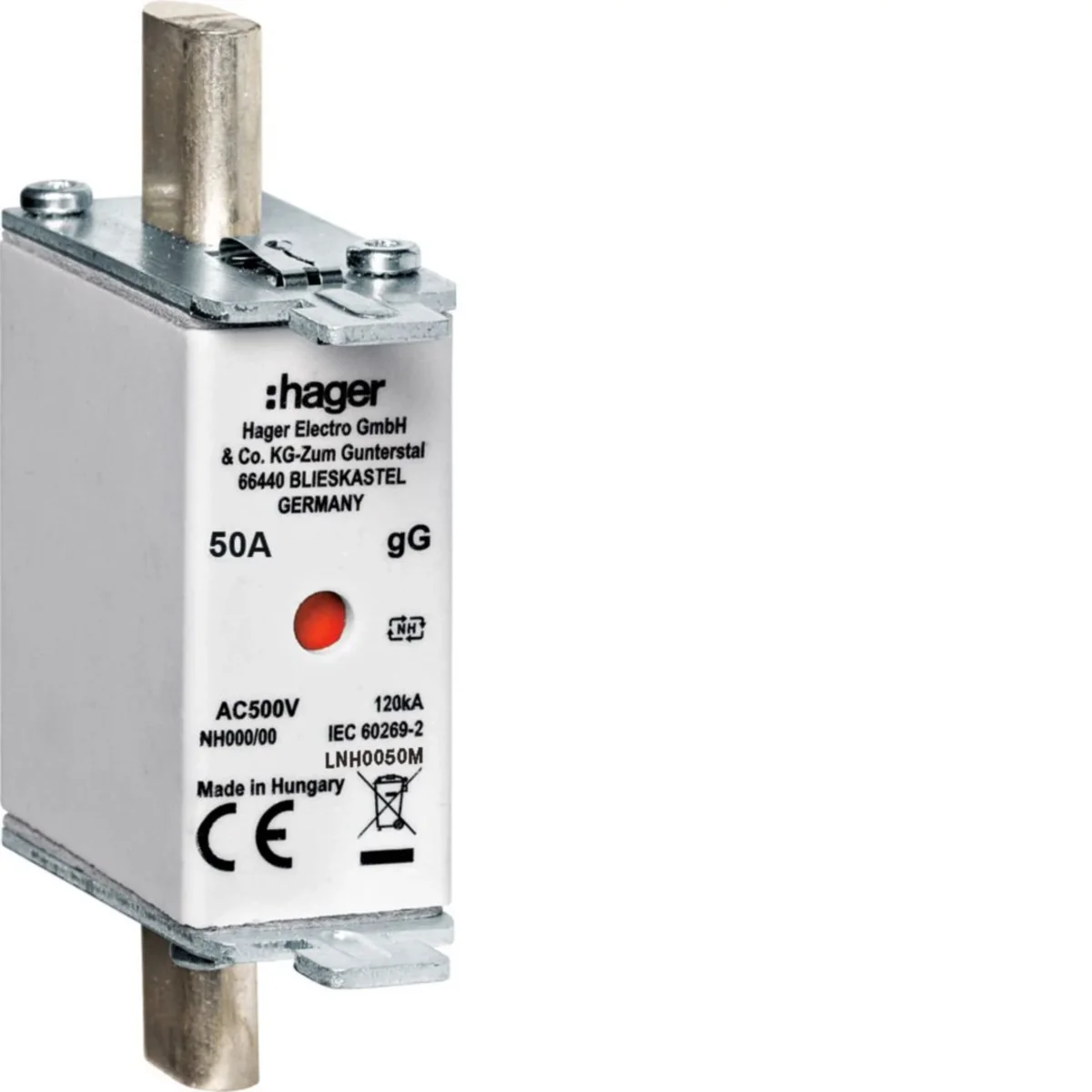

NH000 gG blade fuse link with center indicator 50A 500V LNH0050M

local index:
ABI469HAGE
Catalog No:
LNH0050M
EAN code:
3250614120725
Manufacturer: HAGER
Characteristic: gG
Length [mm]: 51
Depth [mm]: 79
Price:
3,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Knife fuse insert:

  • double indicator,
  • non-insulated handle,
  • fuse characteristics: gG,< /li>
  • trigger characteristics: gG.

Technical data

  • Characteristic
    gG
  • Depth [mm]
    79
  • Rated current [A]
    50
  • Width [mm]
    21
  • Height [mm]
    58.5
  • Rated short-circuit breaking capacity Icn [kA]
    120
  • Length [mm]
    51
  • DC operating voltage [V]
    0/500/550
  • power loss [W]
    4.1
  • Fuse link size
    NH000
  • Rated switching voltage [V]
    0/500/550
  • PKWIU
    27.12.21.0

Other technical data

  • Voltage type
    AC
  • Rated switching capacity
    120 kA
  • Type of fuse status indicator
    Combination fuse status indicator
  • Rated current
    50 A
  • Utilization category
    gL/gG (ochrona instalacji elektroenergetycznych przed skutk. zwarć i przeciążeń)
  • Insulated metal gripping lugs (IMGL)
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 3 pcs. 108 pcs. 3456 pcs.
Weight (kg) 0,120 0,380 14,020 449,280
Width (m) 0,030 0,070 0,300 0,800
Length (m) 0,058 0,061 0,155 1,000
Depth (m) 0,079 0,086 0,400 1,200
