el12 Electrical apparatus Buttons and cassettes Buttons and signal lights Mushroom pushbutton red NC ring nickel plated

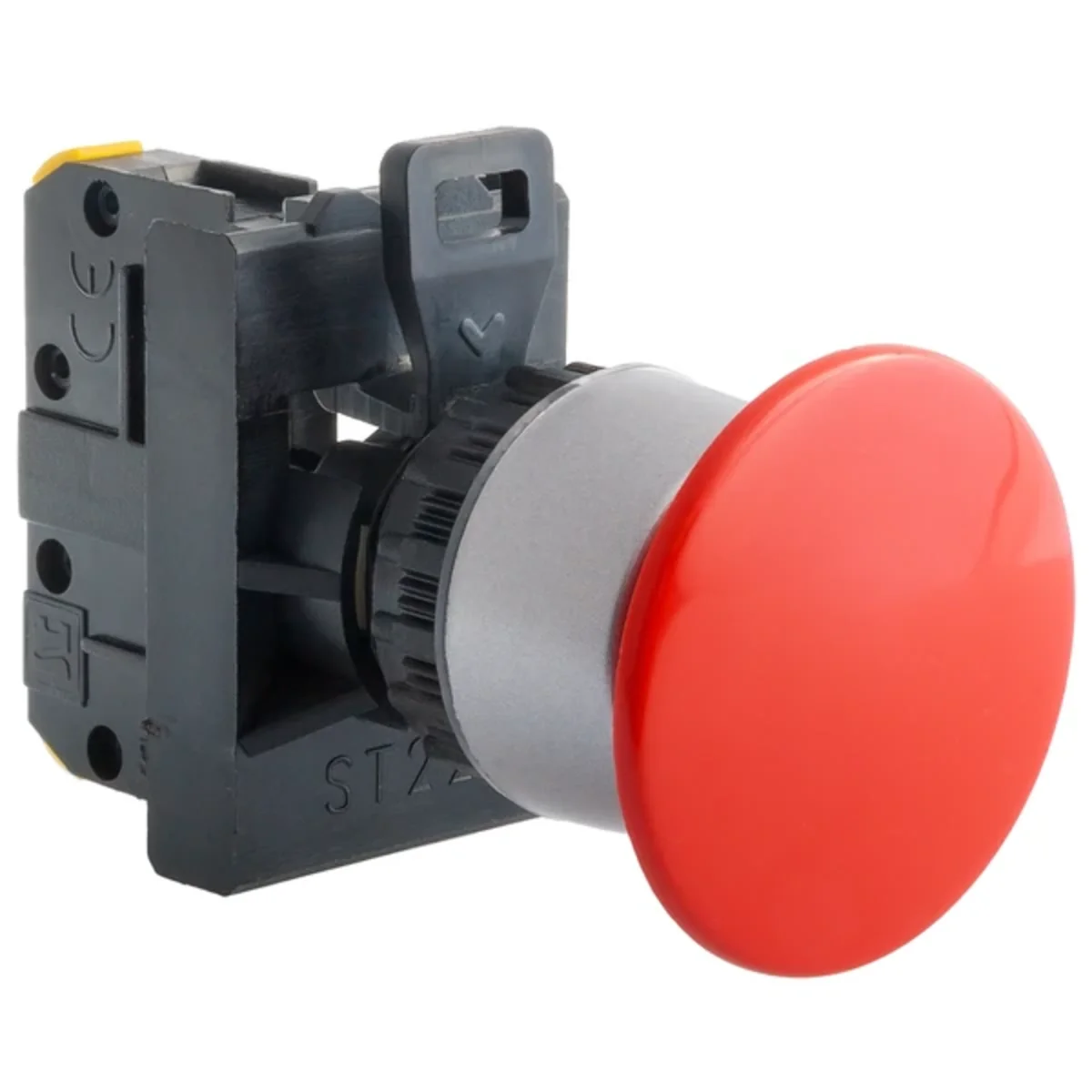

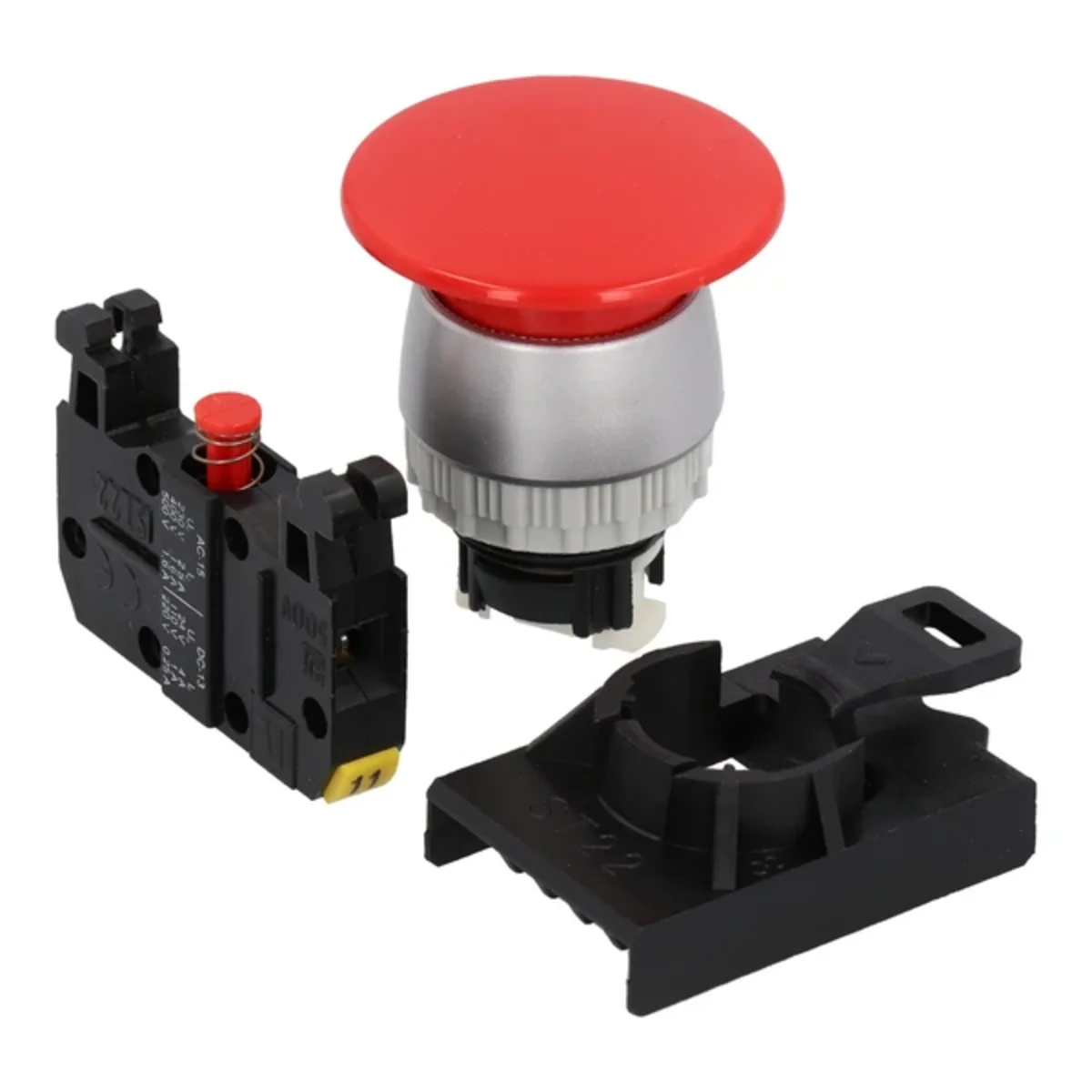

Mushroom pushbutton red NC ring nickel plated

Click on the photo to enlarge

Mushroom pushbutton red NC ring nickel plated
SPAMEL

Mushroom pushbutton red NC ring nickel plated ST22-DC-01\.

local index:
AKS328SPAM
Catalog No:
ST22-DC-01\.
EAN code:
5907723008304
Price:
8,79 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Mushroom pushbutton red NC ring nickel plated
Print the product sheet Report an error

Technical data

  • Color
    Red
  • Housing material
    Plastic
  • Hole diameter [mm]
    22
  • Shape
    Round
  • Level of security
    IP65
  • Accurate color
    Red

Other technical data

  • Number of command positions
    1
  • Colour button
    Red
  • Hole diameter
    22 mm
  • Height opening
    22 mm
  • Switching function latching
    no
  • Number of contacts as normally open contact
    0
  • Number of contacts as change-over contact
    0
  • With front ring
    yes
  • Colour front ring
    Grey
  • Type of button
    Mushroom
  • Construction type lens
    Round
  • Width opening
    22 mm
  • Suitable for illumination
    no
  • Spring-return
    yes
  • Number of contacts as normally closed contact
    1
  • Type of electric connection
    Screw connection
  • Material front ring
    Plastic
  • Degree of protection (IP)
    IP65
