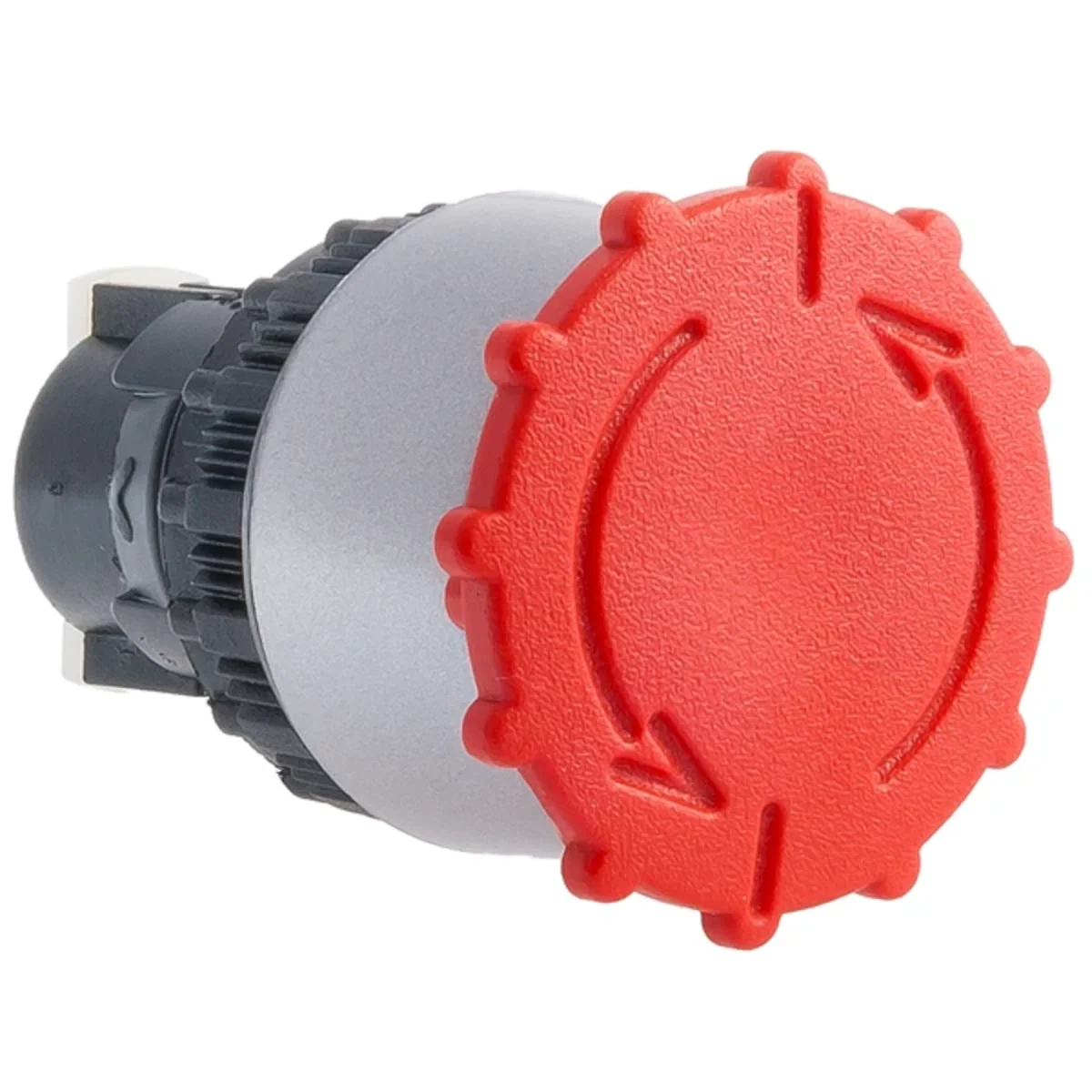

Mushroom button drive - safety B ST22-B\.

local index:
AKS329SPAM
Catalog No:
ST22-B\.
EAN code:
5907723008434
Manufacturer: SPAMEL
Housing material: Plastic
Level of security: IP65
Hole diameter [mm]: 22
Price:
8,73 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

For installation on a screw connection.

Technical data

  • Housing material
    Plastic
  • Hole diameter [mm]
    22
  • Level of security
    IP65

Other technical data

  • Colour button
    Red
  • Diameter cap
    34 mm
  • Width opening
    22 mm
  • Degree of protection (IP)
    IP65
  • Suitable for illumination
    No
  • Spring-return
    No
  • Material front ring
    Plastic
  • Suitable for emergency stop
    Yes
  • Construction type lens
    Round
  • Hole diameter
    22 mm
  • Height opening
    22 mm
  • Type of button
    High
  • Switching function latching
    Yes
  • With front ring
    Yes
  • Colour front ring
    Grey
  • Unlocking method
    Turn-release
