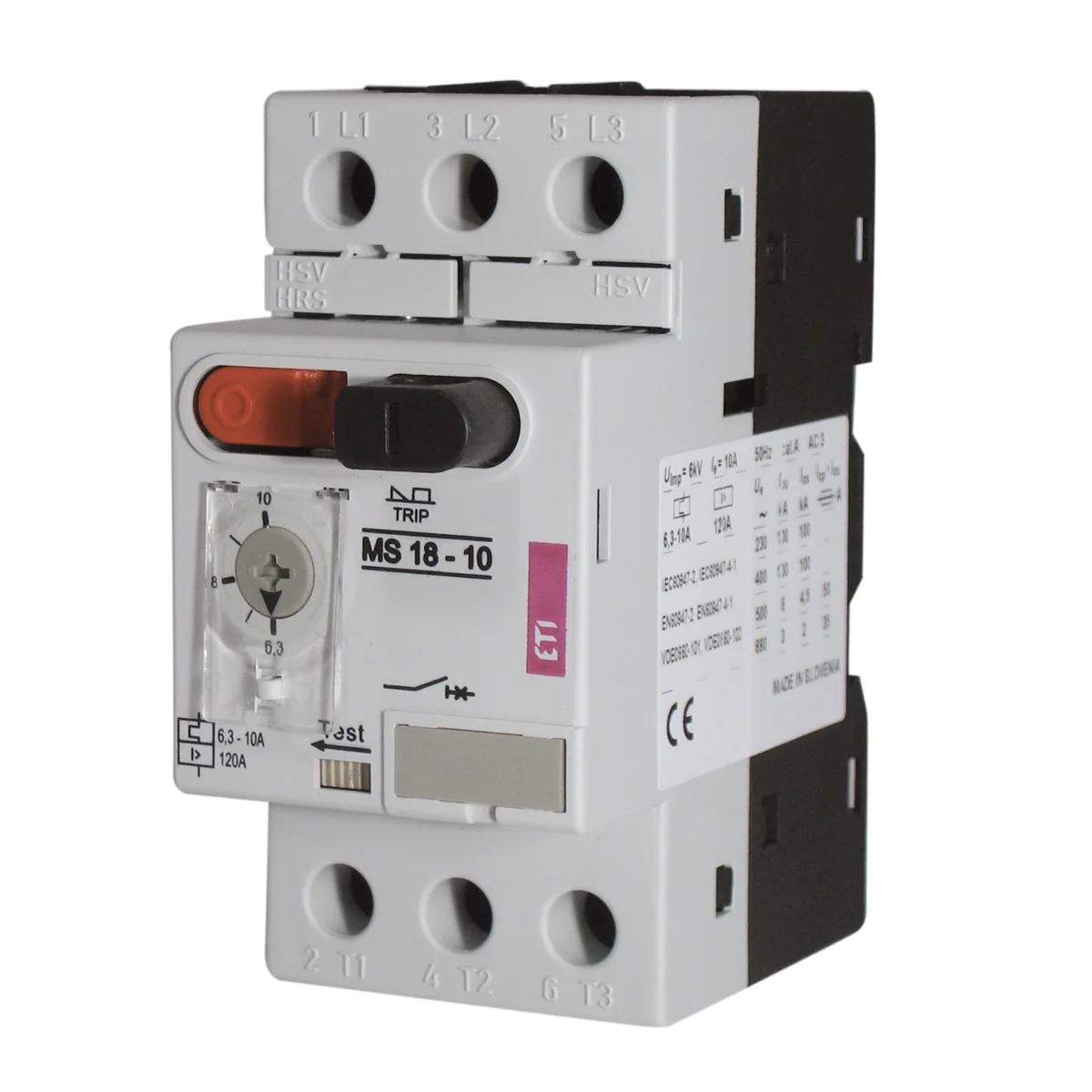

MS18 10A motor circuit breaker 004600349

Внутрішній артикул:
ASN009ETIP
№ каталоговий:
004600349
Код EAN:
3838895575771
Виробник: ETI POLAM
Level of security: IP20
Weight [g]: 300
Ie range [A]: 6:3-10
Ціна:
204,99 zł
gross / шт.
(з ПДВ 23%)
683,30 zł gross/кг.
до 4 тижнів
На замовлення
Кількість шт.
(багаторазовий:
1
)
Додати до запиту на пропозицію
Додати в буфер обміну
Роздрукувати

Опис товару

MS 18 motor circuit breakers are used to start electric motors and protect them against overload and short circuit. They can be used as a main or emergency switch.
Advantages:

temperature compensation
possibility of testing
phase loss control (according to PN-IEC 60947-4-1)
possibility to select the setting range of triggers in 12 ranges from 0, 1 A to 18 A
the possibility of blocking before switching on
wide accessories

Технічні дані

  • Level of security
    IP20
  • Ie range [A]
    6:3-10
  • Weight [g]
    300
  • PKWIU
    27.12.22.0

Інші технічні дані

  • Overload release current setting
    6.3 ... 10 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    230 ... 690 V
  • Type of electrical connection of main circuit
    Frame clamp
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
  • Adjustment range undelayed short-circuit release
    120 ... 120 A
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    10 A
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    50 kA

Інформація про виробника

  • Виробник
    ETI Polam Sp. z o.o.
  • Адреса
    06-100 Pułtusk Jana Pawła II 18 Polska
  • Електронна пошта
