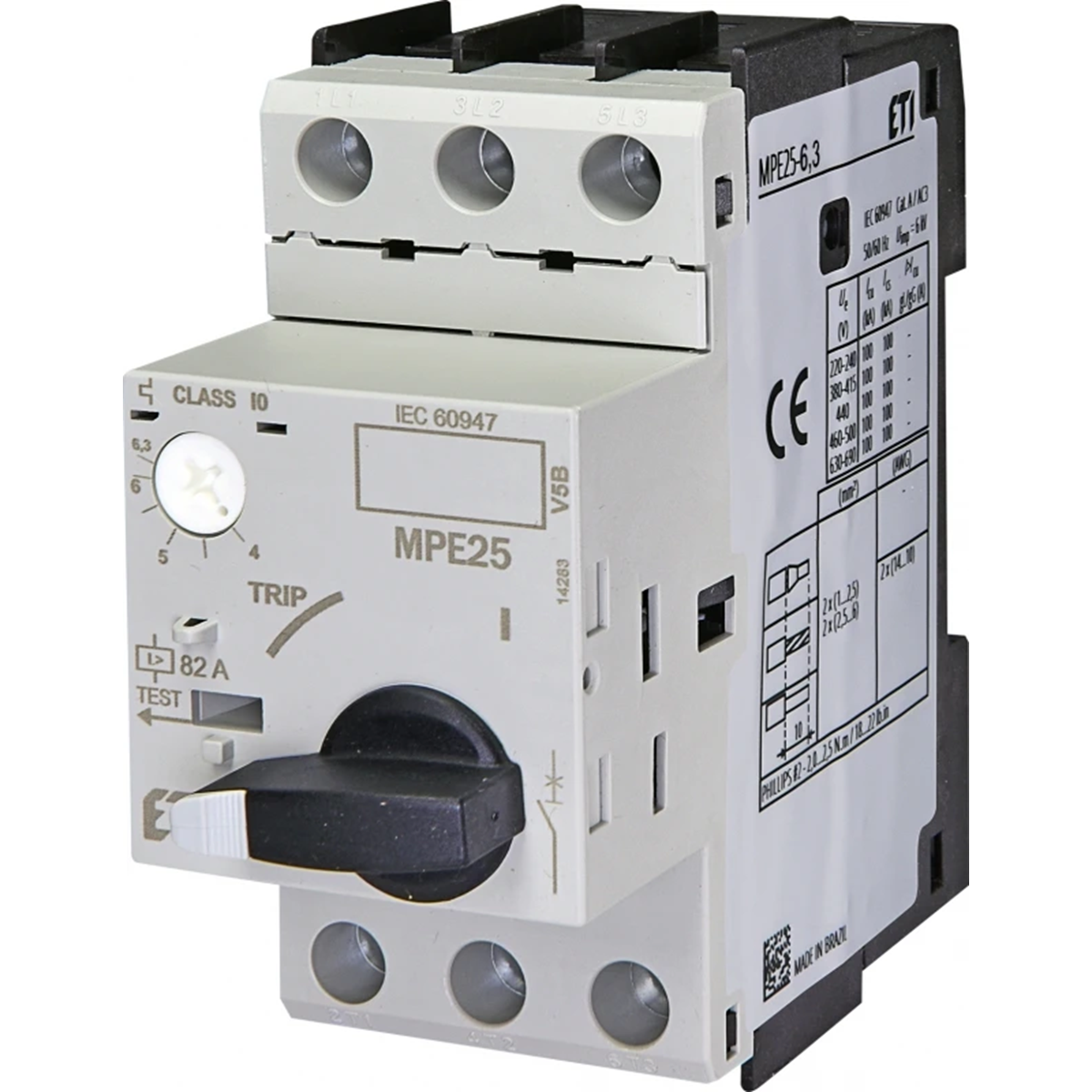

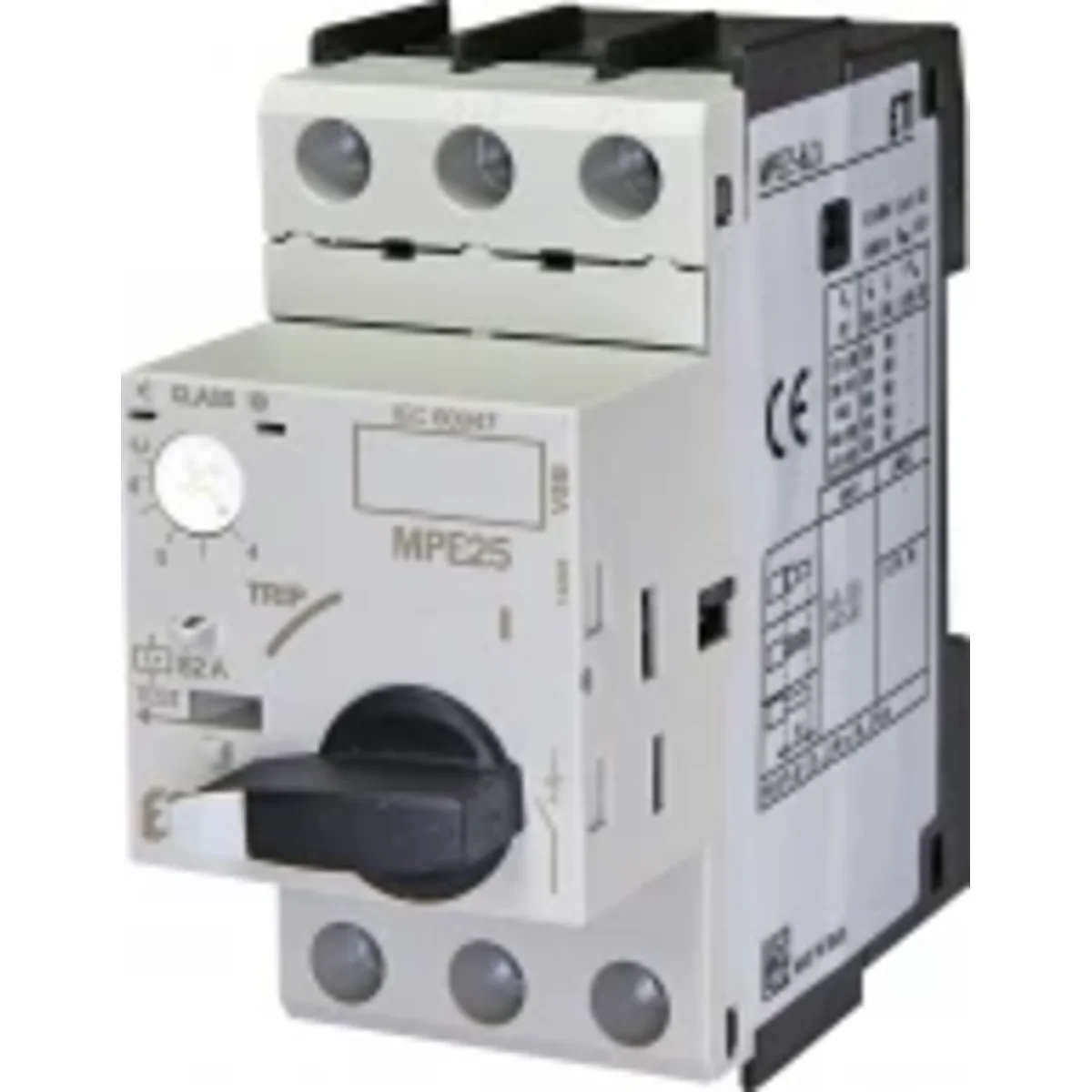

MPE25-6,3 Motor protection switch 004648009

local index:
ASN010ETIP
Catalog No:
004648009
EAN code:
7890355188323
Manufacturer: ETI POLAM
Level of security: IP20
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
27,06 €
gross / pcs.
(including VAT 23%)
Last lowest price: 71,11 € gross
Base price: 73,25 € gross -63%
Delivery in 3h
Accessible 2 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

MPE25-6,3 Motor protection switch

Technical data

  • Level of security
    IP20
  • PKWIU
    27.12.22.0

Other technical data

  • Overload release current setting
    4.0 ... 6.3 A
  • Phase failure sensitive
    Yes
  • Rated operating voltage
    400 ... 690 V
  • Rated operation power at AC-3, 400 V
    2.2 kW
  • Device construction
    Built-in device fixed built-in technique
  • With integrated under voltage release
    No
  • Rated short-circuit breaking capacity lcu at 400 V, AC
    100 kA
  • Adjustment range undelayed short-circuit release
    81.9 ... 81.9 A
  • Switch off technique
    Thermomagnetic
  • Rated permanent current Iu
    6.3 A
  • Type of electrical connection of main circuit
    Frame clamp
  • With integrated auxiliary switch
    No
  • Number of poles
    3
  • Degree of protection (IP)
    IP20
