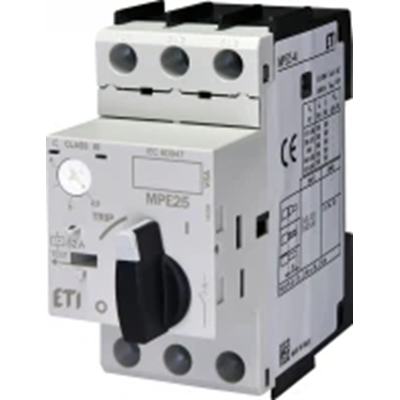

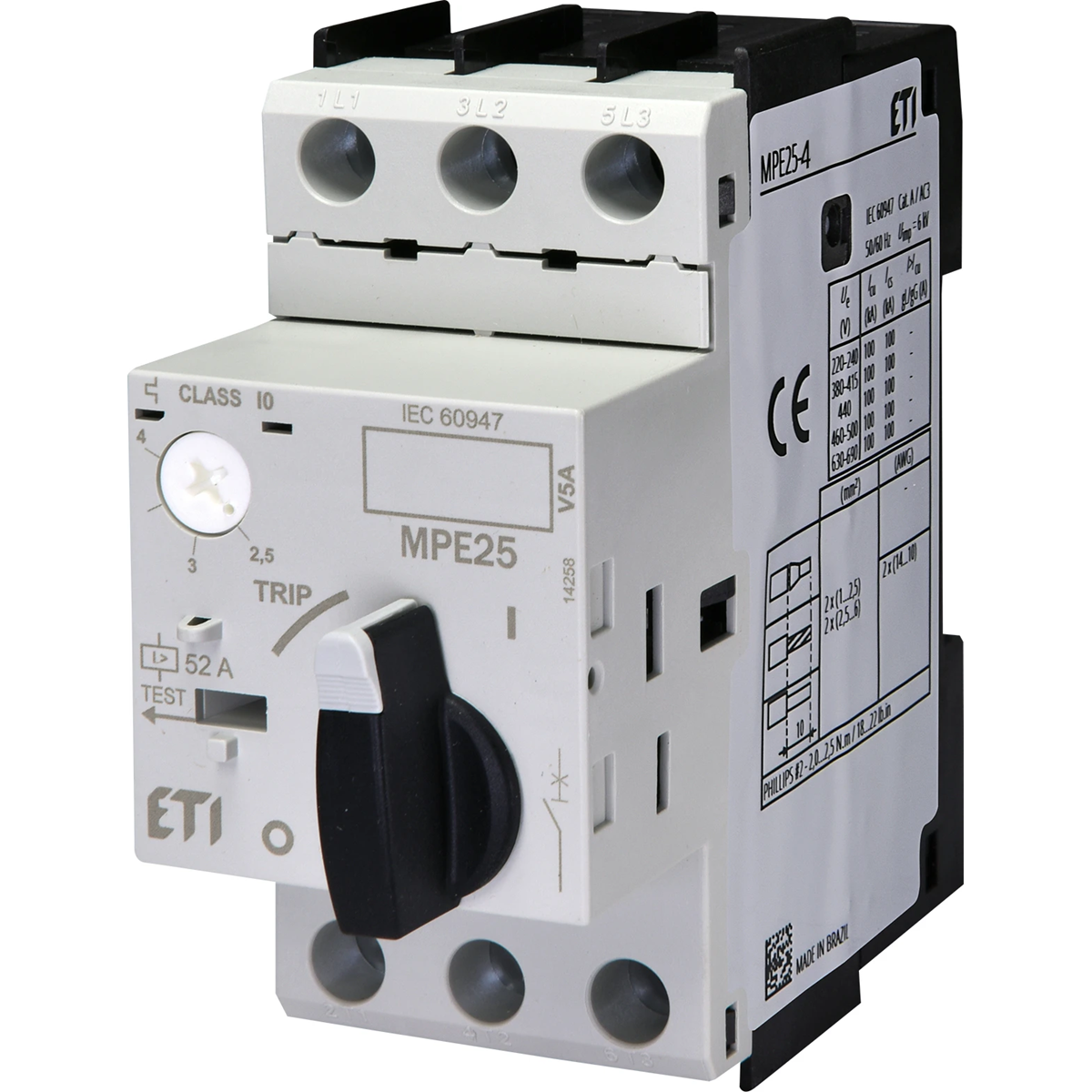

MPE25-4.0 motor circuit breaker 004648008
local index:
ASN026ETIP
Catalog No:
004648008
EAN code:
7890355188316
Manufacturer:
ETI POLAM
Frequency [Hz]: 50/60 Hz
Terminal capacity: 1x(0.5 to 2.5mm2) or 2x(0.5 to 2.5mm2)
Trip pick-up current [A]: 48
Price:
44,87 €
gross / pcs.
(including VAT 23%)
139,35 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Application - MPE25 motor circuit breakers are used to start electric motors and protect them against overload, short circuit and part-phase operation. They can be used as a main or emergency switch. Starting systems can be built in conjunction with CE or CEM type contactors and mounting adapters.
Technical data
-
Frequency [Hz]50/60 Hz
-
Trip pick-up current [A]48
-
Working temperature [°C]non-built-in device -20/+70 built-in device -20/+35
-
Ie range [A]2.5-4.0
-
Rated impulse voltage [kV]6
-
Terminal capacity1x(0.5 to 2.5mm2) or 2x(0.5 to 2.5mm2)
-
Level of securityIP20
-
Weight [g]322
-
Range of application (m.a.s.l.)& ≤ 2000m
-
PKWIU27.12.22.0
Other technical data
-
Overload release current setting2.5 ... 4.0 A
-
Phase failure sensitiveYes
-
Rated operating voltage400 ... 690 V
-
Rated operation power at AC-3, 400 V1.5 kW
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC100 kA
-
Adjustment range undelayed short-circuit release52 ... 52 A
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu4 A
-
Type of electrical connection of main circuitFrame clamp
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerETI-POLAM Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18
-
E-mail
-
Tax identification number5681370113
-
GLN5909000467408
