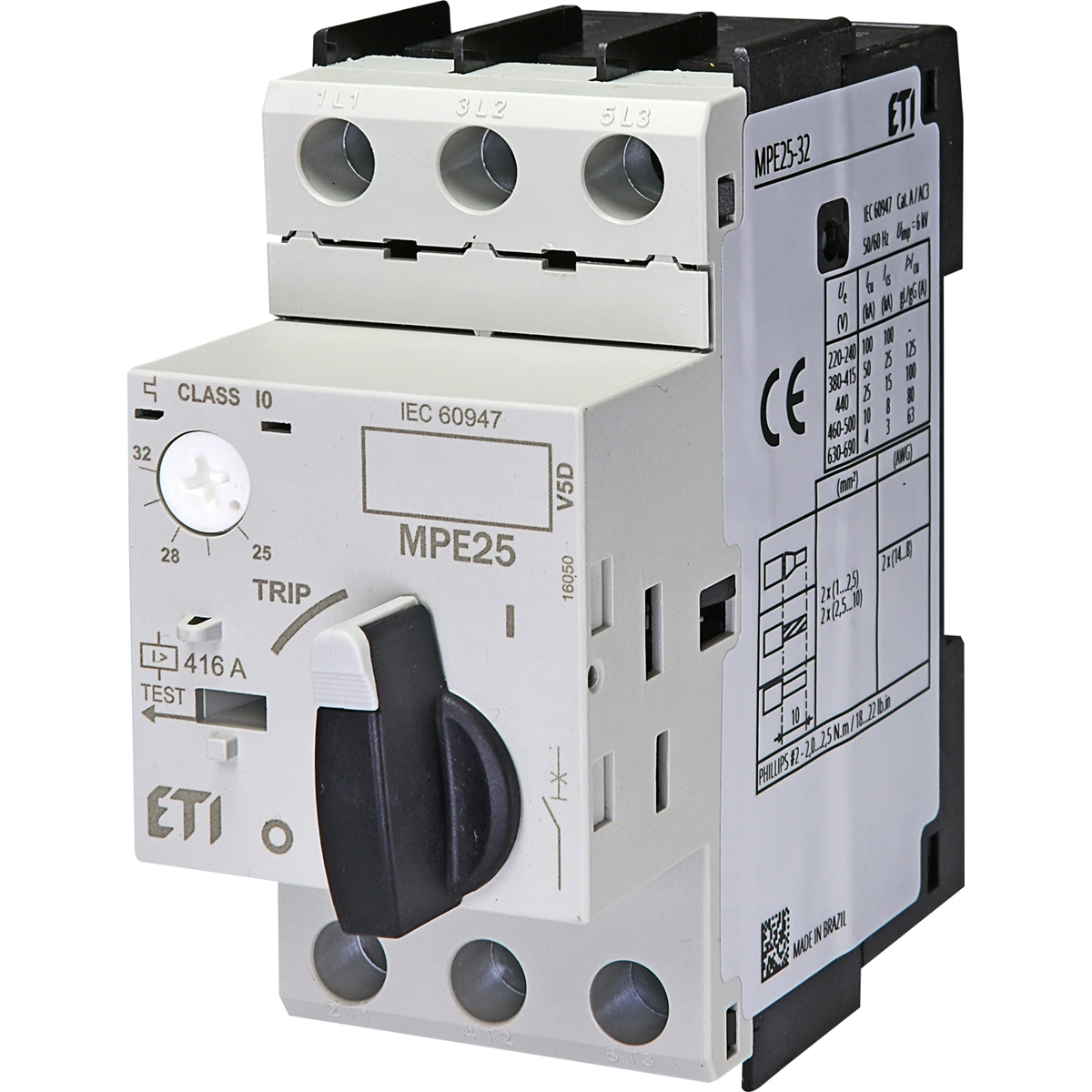

MPE25-32 motor circuit breaker 004648014
local index:
ASN015ETIP
Catalog No:
004648014
EAN code:
7890355188378
Price:
43,91 €
gross / pcs.
(including VAT 23%)
Last lowest price:
115,41 € gross
Price history for this product
1. 43,91 € gross / pcs.
2. Last lowest price:
115,41 €
3. Base price:
118,87 €
-63%
1. How much does this product cost today
2. Lowest price in the last 30 days
3. The base price of the product
Base price:
118,87 € gross
-63%
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description
Application - MPE25 motor circuit breakers are used to start electric motors and protect them against overload, short circuit and part-phase operation. They can be used as a main or emergency switch. Starting systems can be built in combination with CE or CEM type contactors and mounting adapters.
Technical data
-
Level of securityIP20
-
PKWIU27.12.22.0
-
Ie range [A]25-32
Other technical data
-
Overload release current setting25.0 ... 32.0 A
-
Phase failure sensitiveYes
-
Rated operating voltage400 ... 690 V
-
Rated operation power at AC-3, 400 V15 kW
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC50 kA
-
Adjustment range undelayed short-circuit release416 ... 416 A
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu32 A
-
Type of electrical connection of main circuitFrame clamp
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
