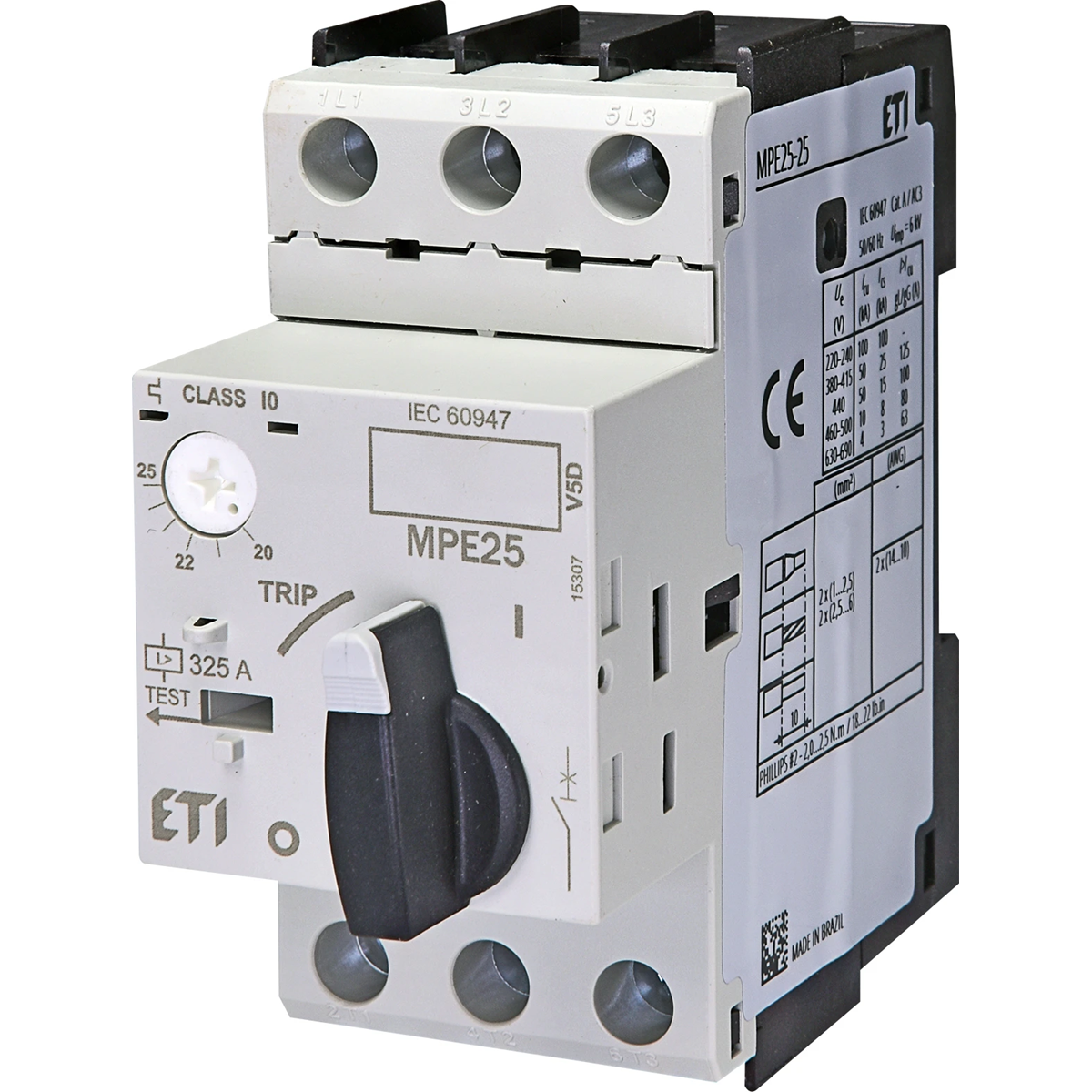

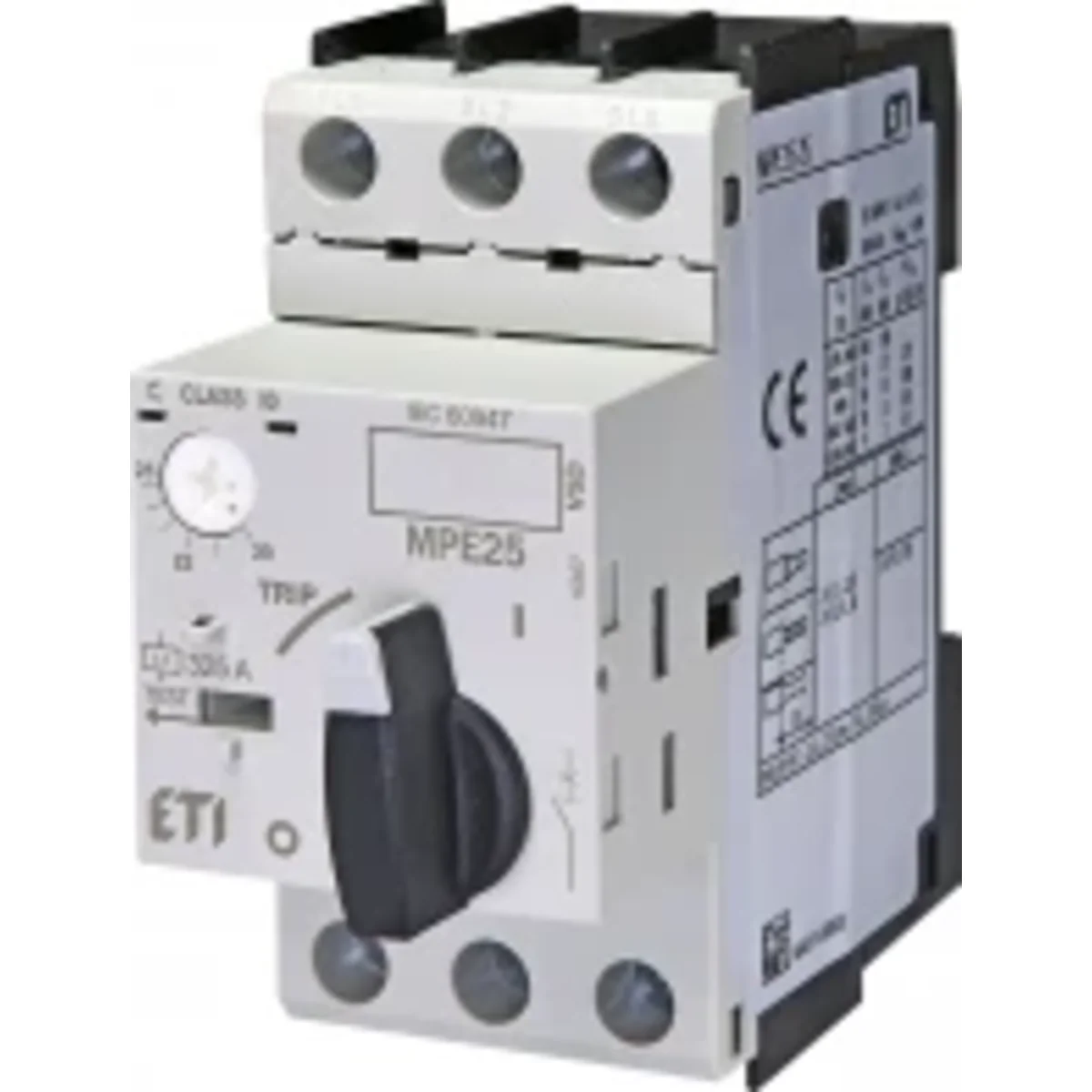

MPE25-25 motor circuit breaker 004648013
local index:
ASN030ETIP
Catalog No:
004648013
EAN code:
7890355188361
Manufacturer:
ETI POLAM
Frequency [Hz]: 50/60 Hz
Terminal capacity: 1x(0.5 to 2.5mm2) or 2x(0.5 to 2.5mm2)
Trip pick-up current [A]: 300
Price:
40,20 €
gross / pcs.
(including VAT 23%)
124,84 € gross/kg.
Last lowest price:
105,66 € gross
Price history for this product
1. 40,20 € gross / pcs.
2. Last lowest price:
105,66 €
3. Base price:
108,82 €
-63%
1. How much does this product cost today
2. Lowest price in the last 30 days
3. The base price of the product
Base price:
108,82 € gross
-63%
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description
Application - MPE25 motor circuit breakers are used to start electric motors and protect them against overload, short circuit and part-phase operation. They can be used as a main or emergency switch. Starting systems can be built in conjunction with CE or CEM type contactors and mounting adapters.
Technical data
-
Frequency [Hz]50/60 Hz
-
Trip pick-up current [A]300
-
Working temperature [°C]non-built-in device -20/+70 built-in device -20/+35
-
Ie range [A]20-25
-
Rated impulse voltage [kV]6
-
Terminal capacity1x(0.5 to 2.5mm2) or 2x(0.5 to 2.5mm2)
-
Level of securityIP20
-
Weight [g]322
-
Range of application (m.a.s.l.)2000m
-
PKWIU27.12.22.0
Other technical data
-
Overload release current setting20.0 ... 26.0 A
-
Phase failure sensitiveYes
-
Rated operating voltage400 ... 690 V
-
Rated operation power at AC-3, 400 V12.5 kW
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC50 kA
-
Adjustment range undelayed short-circuit release325 ... 325 A
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu25 A
-
Type of electrical connection of main circuitFrame clamp
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
