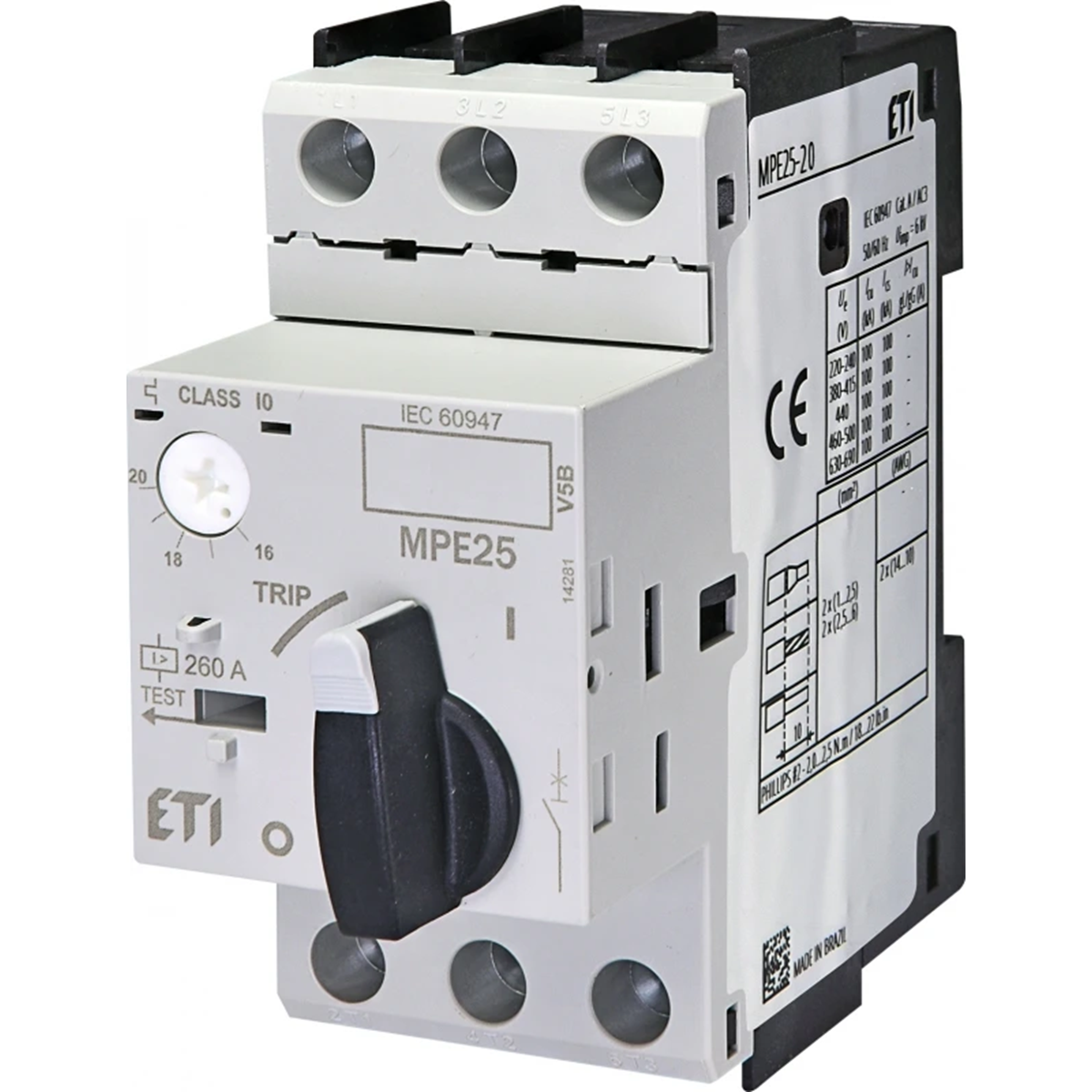

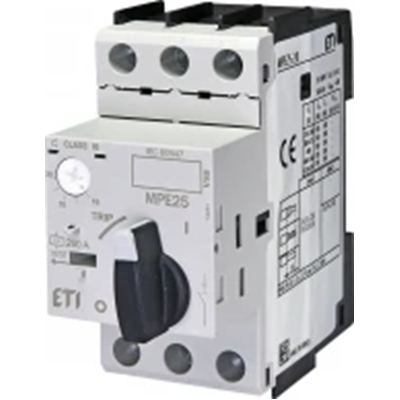

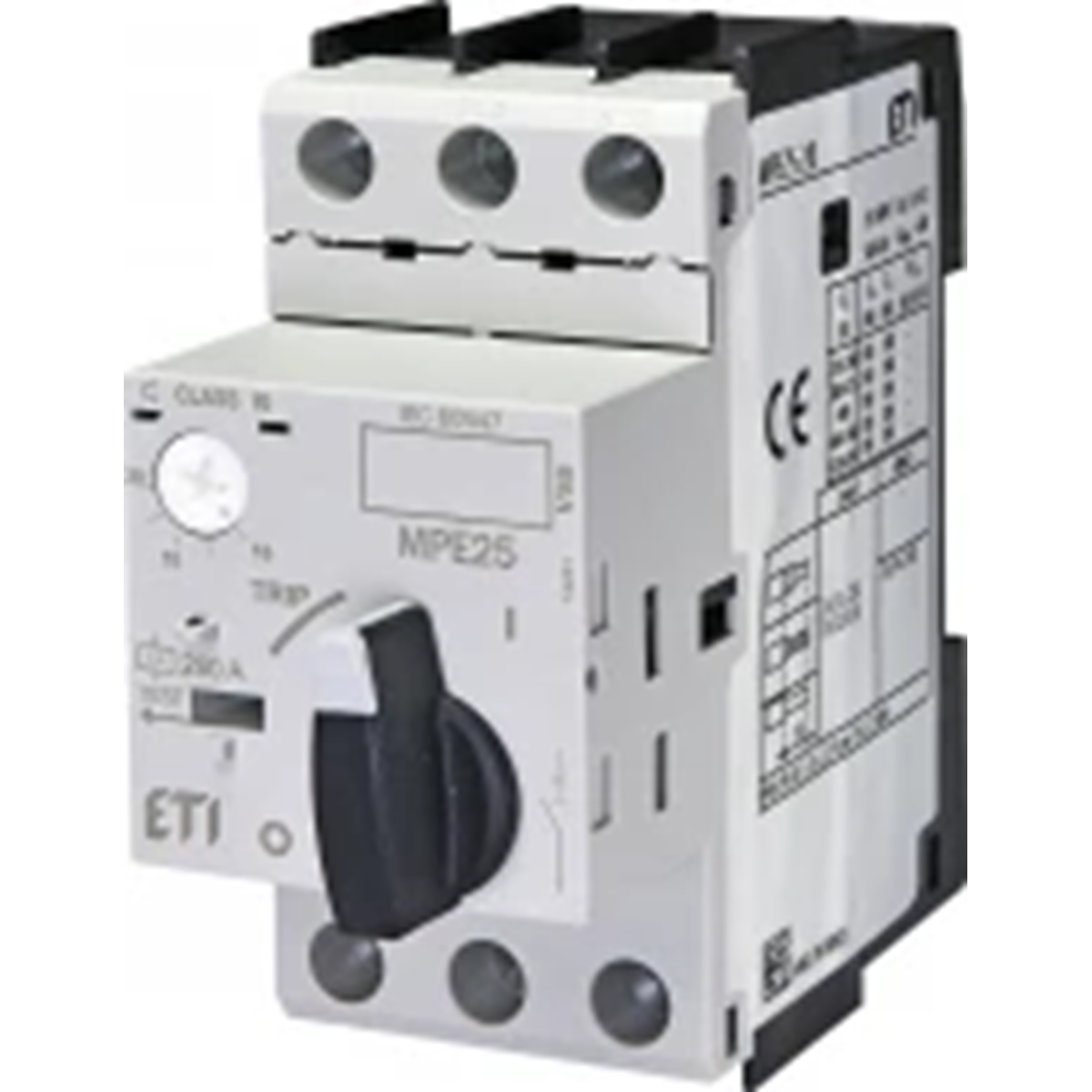

MPE25-20 motor circuit breaker 004648012
local index:
ASN014ETIP
Catalog No:
004648012
EAN code:
7890355188354
Price:
56,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Application - MPE25 motor circuit breakers are used to start electric motors and protect them against overload, short circuit and part-phase operation. They can be used as a main or emergency switch. Starting systems can be built in conjunction with CE or CEM type contactors and mounting adapters.
Technical data
-
Level of securityIP20
-
PKWIU27.12.22.0
-
Ie range [A]16-20
Other technical data
-
Overload release current setting16.0 ... 20.0 A
-
Phase failure sensitiveYes
-
Rated operating voltage400 ... 690 V
-
Rated operation power at AC-3, 400 V9 kW
-
Device constructionBuilt-in device fixed built-in technique
-
With integrated under voltage releaseNo
-
Rated short-circuit breaking capacity lcu at 400 V, AC50 kA
-
Adjustment range undelayed short-circuit release260 ... 260 A
-
Switch off techniqueThermomagnetic
-
Rated permanent current Iu20 A
-
Type of electrical connection of main circuitFrame clamp
-
With integrated auxiliary switchNo
-
Number of poles3
-
Degree of protection (IP)IP20
Manufacturer details
-
ManufacturerETI-POLAM Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18
-
E-mail
-
Tax identification number5681370113
-
GLN5909000467408
